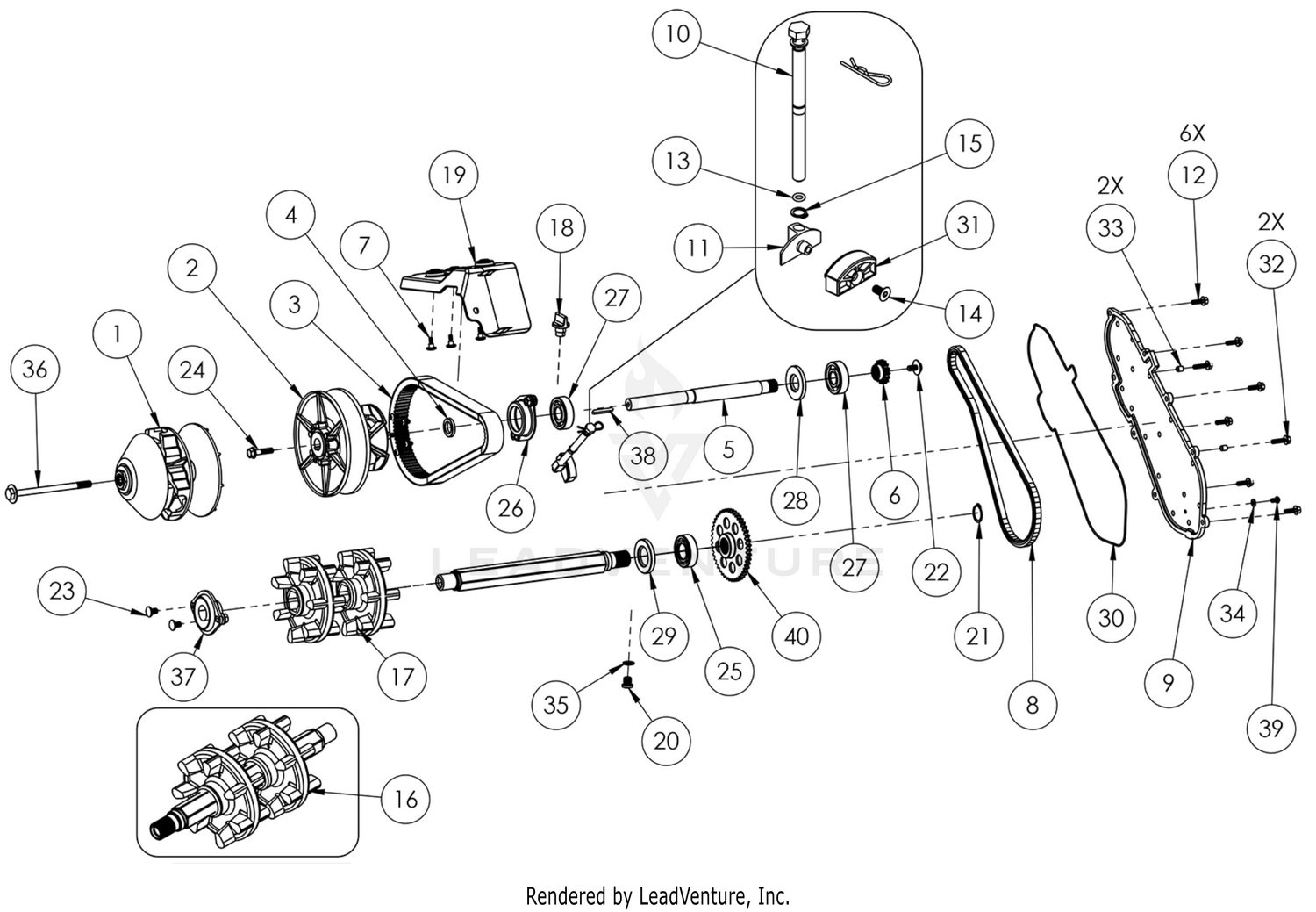

| Ref | Part Number | Description |
|---|
| 1 |
1222-147 |
DRIVING PULLEY Price: Call Us |
| 2 |
1222-148 |
DRIVEN PULLEY Price: Call Us |
| 3 |
1222-149 |
BELT Price: Call Us |
| 4 |
1222-150 |
DRIVEN PULLEY SPACER Price: Call Us |
| 5 |
1222-167 |
DRIVEN PULLEY SHAFT Price: Call Us |
| 6 |
1222-168 |
DRIVING SPROCKET (15T) Price: Call Us |
| 7 |
1222-210 |
FLANGED TORX BOLT T25 M5 x 0,80 x 13 Price: $2.95 |
| 8 |
1222-170 |
CHAIN Price: Call Us |
| 9 |
1222-171 |
CHAIN CASE COVER Price: Call Us |
| 10 |
1222-173 |
TENSIONER SHAFT Price: Call Us |
| 11 |
1222-174 |
TENSIONER ALUMINUM BLOCK Price: Call Us |
| 12 |
1222-045 |
FLANGED BOLT M6 x 1,00 x 20 Price: $1.99 |
| 13 |
1222-177 |
O-RINGS; 2 MM WIDE, 6 MM ID; DUROMETER 50A Price: Call Us |
| 14 |
1222-178 |
COUNTERSUNK SCREW M6 x 1,00 x 12 Price: Call Us |
| 15 |
1222-179 |
CIRTEQ DIN471 D1400 A10 ASTM B695 ZINC YELLOW PLATED Price: Call Us |
| 16 |
1222-180 |
TRACK SHAFT ASSY Price: Call Us |
| 17 |
1222-185 |
TRACK SPROCKET (PPD S071G-2-001C) Price: Call Us |
| 18 |
1222-187 |
OIL FILLER CAP + O-RING Price: Call Us |
| 19 |
1222-189 |
CLUTCH GUARD Price: Call Us |
| 20 |
1222-190 |
OIL PLUG M12X1,5X16 MAGNETIC Price: Call Us |
| 21 |
1222-191 |
CIRTEQ DIN471 D1400 A25 ASTM B695 ZINC YELLOW PLATED Price: Call Us |
| 22 |
1222-192 |
FLANGED BOLT/WASHER M8 x 1.25 x 16 Price: Call Us |
| 23 |
1222-193 |
FLANGED BOLT M8 x 1,25 x 16 Price: Call Us |
| 24 |
1222-194 |
FLANGED BOLT M8 x 1,25 x 35 Price: Call Us |
| 25 |
1222-195 |
BEARING 25X52X15; SKF 6205 2RS Price: Call Us |
| 27 |
1222-197 |
BEARING 20X52X15; SKF 6304 2RS Price: Call Us |
| 28 |
1222-198 |
RADIAL SHAFT SEAL TRACK SHAFT: 22X55X7 Price: Call Us |
| 29 |
1222-199 |
RADIAL SHAFT SEAL DRIVEN SHAFT: 30X55X7 Price: Call Us |
| 30 |
1222-200 |
O-RING Ø1.78MM (C/S) x Ø317MM DURO 50A Price: Call Us |
| 31 |
1222-175 |
TENSIONER NYLON BLOCK Price: Call Us |
| 32 |
1222-201 |
FLANGED BOLT M6 x 1,00 x 25 Price: Call Us |
| 33 |
1222-202 |
CHAINCASE COVER ALIGNMENT DOWEL Price: Call Us |
| 34 |
1222-203 |
METAL SEALING WASHER 6.2 ID 11.9 OD Price: Call Us |
| 35 |
1222-204 |
METAL SEALING WASHER 12,2 ID 17,9 OD Price: Call Us |
| 37 |
1222-207 |
STEEL PLATE FLANGE TYPE UNIT, SBPFL (SBPFL205) Price: Call Us |
| 39 |
1222-209 |
TORX PAN HEAD SCREWS: M6 x 1.0 x 10 Price: Call Us |
