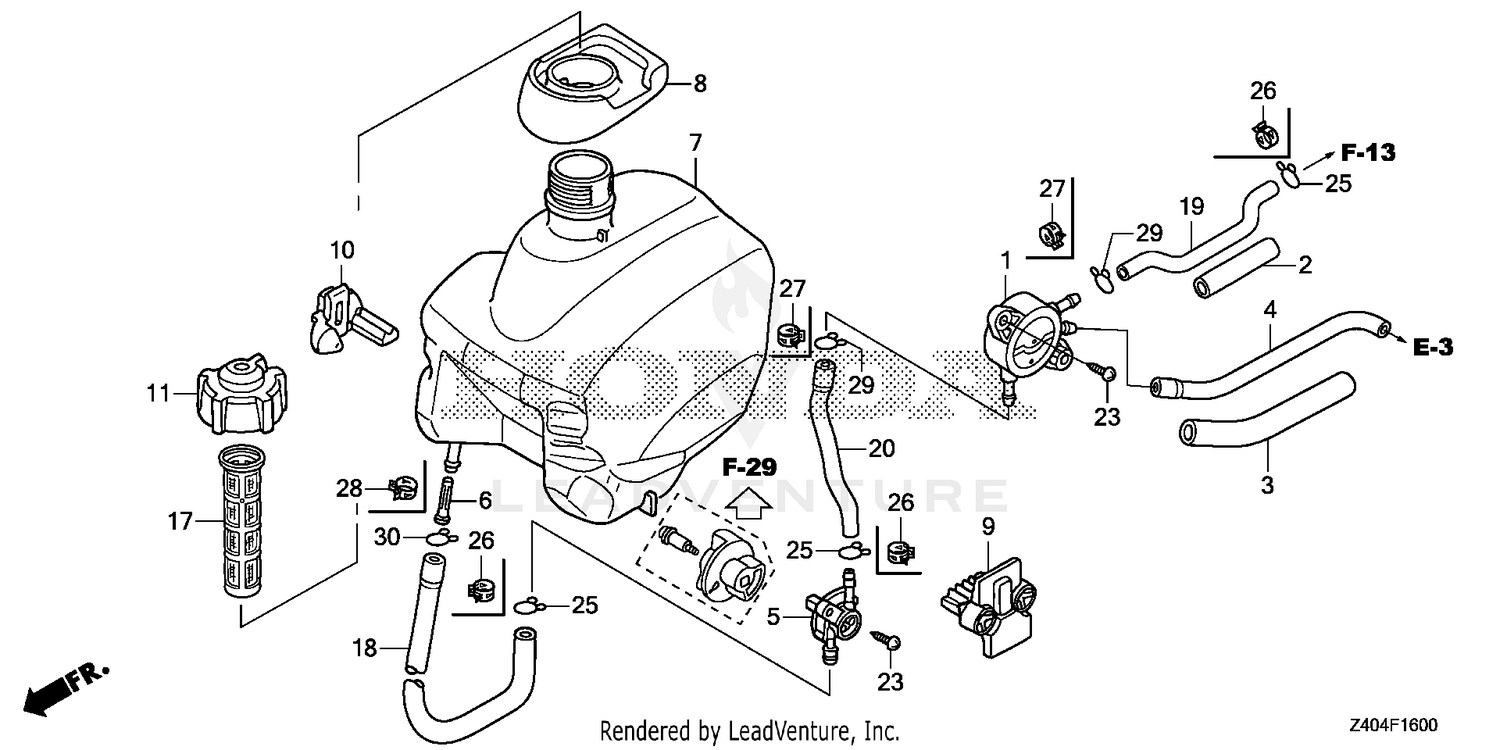

| Ref | Part Number | Description |
|---|
| 1 |
16700-ZT3-013 |
PUMP ASSY., FUEL (MSDS) Price: $47.38 |
| 2 |
16854-ZT3-000 |
RUBBER A, SUPPORTER Price: $3.34 |
| 3 |
16857-ZT3-000 |
RUBBER B, SUPPORTER Price: $3.34 |
| 4 |
16882-ZT3-000 |
TUBE, DIAPHRAGM Price: $3.72 |
| 5 |
16950-ZT3-003 |
PETCOCK ASSY. Price: $45.40 |
| 6 |
16952-Z39-C90 |
FILTER, FUEL Price: $1.72 |
| 7 |
17511-ZT3-S10 |
TANK, FUEL (NOT AVAILABLE) Price: $85.90 |
| 8 |
17514-ZT3-000 |
SEAL, FUEL FILLER NECK Price: $11.66 |
| 9 |
17532-ZT3-000 |
RUBBER R, TANK MOUNTING Price: $6.80 |
| 10 |
17533-ZT3-000 |
RUBBER L, TANK MOUNTING Price: $5.30 |
| 11 |
17620-ZT3-030 |
SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK Price: $20.60 |
| 17 |
17670-Z07-000 |
FILTER, FUEL Price: $19.46 |
| 18 |
17701-ZT3-S13 |
TUBE, FUEL TANK (FKM) Price: $11.58 |
| 19 |
17702-ZT3-S13 |
TUBE, A FUEL Price: $14.50 |
| 20 |
17703-ZT3-S13 |
TUBE B, FUEL (FKM) Price: $10.96 |
| 23 |
93913-25520 |
SCREW, TAPPING (5X20) (PO) Price: $1.50 |
| 26 |
95002-40800-08 |
SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811). Price: $2.82 |
| 27 |
95002-40850-08 |
CLIP, TUBE (D8.5) (Honda Code 0665240). Price: $3.18 |
