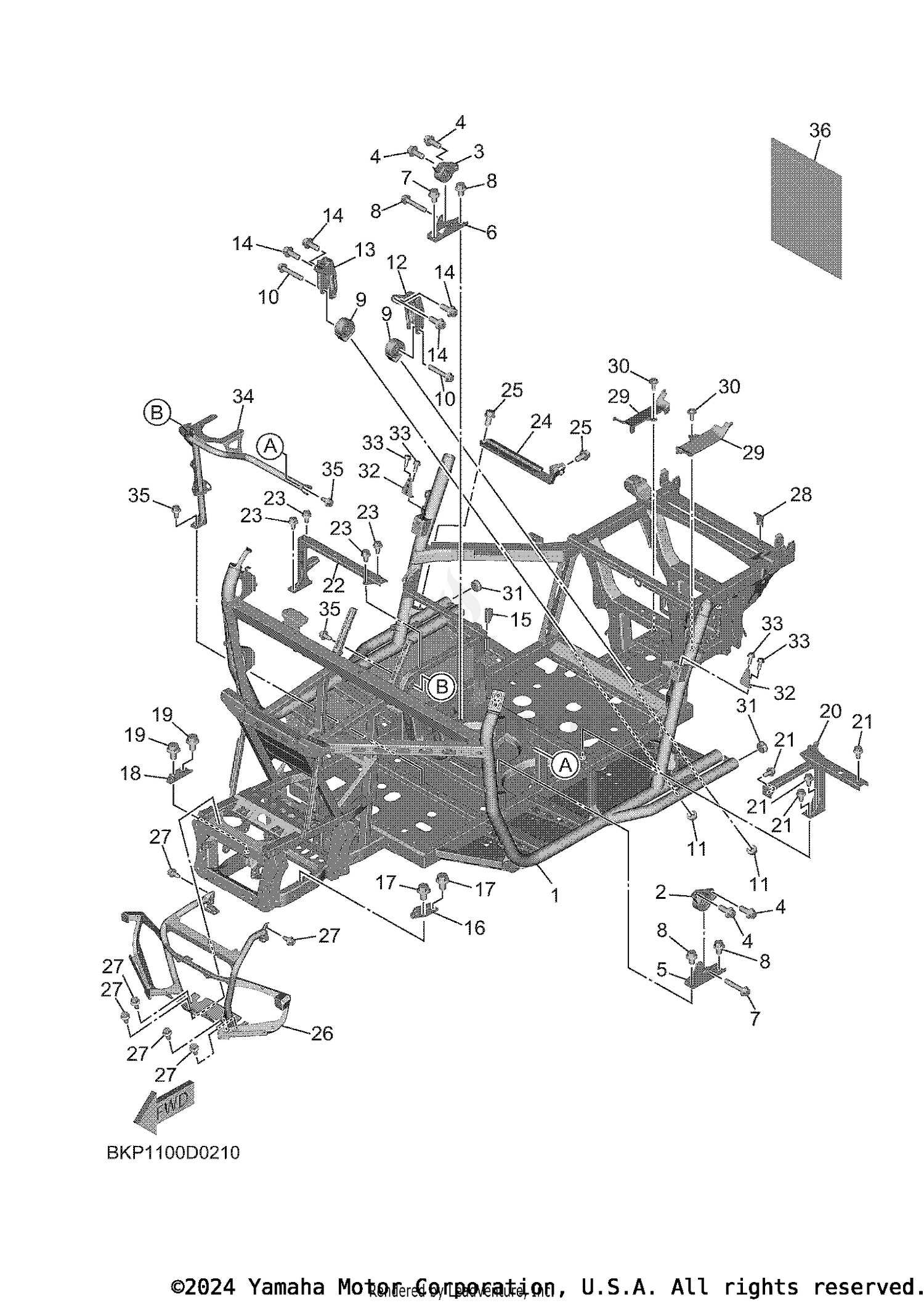

| Ref | Part Number | Description |
|---|
| 1 |
BKP-F1110-01-00 |
FRAME COMP. Price: $3,769.99 |
| 2 |
BKP-21410-10-00 |
ENGINE BRACKET COMP. Price: $96.99 |
| 3 |
BKP-21420-10-00 |
ENGINE BRACKET COMP. 2 Price: $96.99 |
| 4 |
95D32-10025-00 |
BOLT, FLANGE DEEP RE Price: $1.55 |
| 5 |
BG4-F161F-00-00 |
BRACKET 5 Price: $13.49 |
| 6 |
BG4-F161A-00-00 |
BRACKET 3 Price: $8.99 |
| 7 |
95D32-12065-00 |
BOLT, FLANGE DEEP RE Price: $3.95 |
| 8 |
95D32-10016-00 |
BOLT, FLANGE DEEP RE Price: $1.40 |
| 9 |
BKP-21490-00-00 |
BRACKET, ENGINE 1 Price: Call Us |
| 10 |
95D32-12065-00 |
BOLT, FLANGE DEEP RE Price: $3.95 |
| 11 |
90179-10033-00 |
NUT Price: $99,999.99 |
| 12 |
B4J-F1283-04-00 |
SUPPORT, ENGINE Price: $20.99 |
| 13 |
B4J-F1284-05-00 |
SUPT., ENGINE 2 Price: $20.99 |
| 14 |
95D37-10025-00 |
BOLT, FLANGE DEEP RE This part replaces 90105-10475-00. Price: $2.50 |
| 15 |
BKP-F1773-00-00 |
GROMMET Price: $5.49 |
| 16 |
B4J-F1239-00-00 |
BRACKET 2 Price: $3.75 |
| 17 |
95812-12020-00 |
BOLT, FLANGE Price: $9.49 |
| 18 |
B4J-F1249-00-00 |
BRACKET Price: $4.25 |
| 19 |
95812-12020-00 |
BOLT, FLANGE Price: $9.49 |
| 20 |
BG4-F1143-11-00 |
LUG, SEAT RAIL LH. Price: $33.99 |
| 21 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 22 |
BG4-F255G-01-00 |
MEMBER, SEAT SUPPORT Price: $36.99 |
| 23 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 24 |
BG4-F287M-00-00 |
BRACKET, LOCK 2 Price: $20.99 |
| 25 |
95817-10020-00 |
BOLT, FLANGE This part replaces 95812-10020-00. Price: $9.49 |
| 26 |
B4J-F110J-01-00 |
DAMPER BRACE ASSY Price: $215.99 |
| 27 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 28 |
B8K-F1446-00-00 |
STAY, MUFFLER 2 Price: $3.05 |
| 29 |
2MB-F198J-01-00 |
COVER 3 Price: $8.49 |
| 30 |
90269-07805-00 |
RIVET Price: $1.75 |
| 31 |
5UG-F2417-00-00 |
PLUG Price: $7.49 |
| 32 |
BYP-F253J-00-00 |
BRACKET, SIDE PANEL 1 Price: $5.49 |
| 33 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 34 |
BYP-F1986-00-00 |
REINFORCEMENT, FRAME 1 Price: $233.99 |
| 35 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
