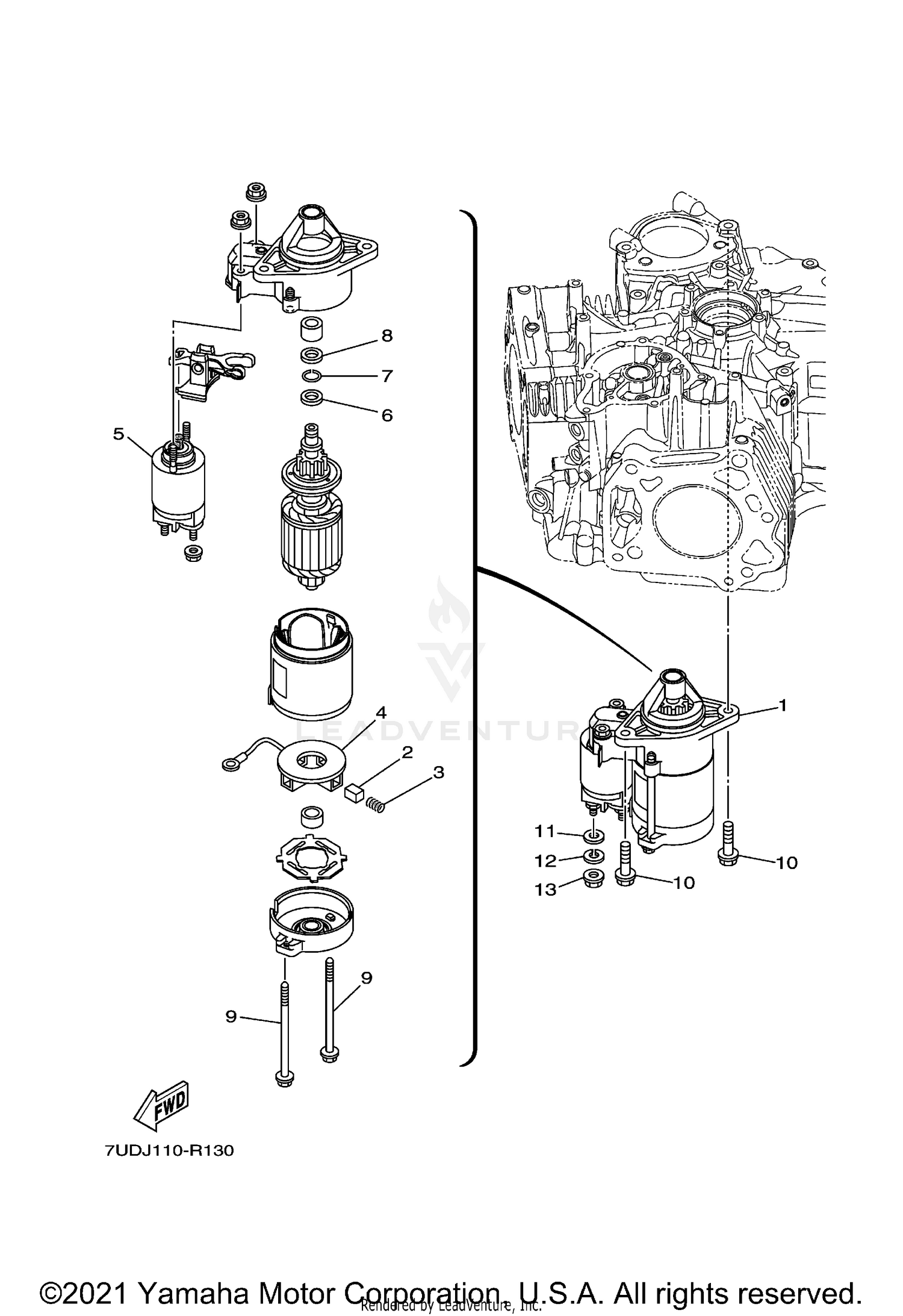

STARTING MOTOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7UD-H1800-10-00 | STARTING MOTOR ASS Price: $254.99 |
| 2 | 7CU-H1812-10-00 | BRUSH 2 Price: $6.49 |
| 3 | 7CU-H1813-00-00 | SPRING, BRUSH Price: $4.85 |
| 4 | 7UD-H1840-00-00 | BRUSH HOLDER ASSY Price: Call Us |
| 5 | 7CU-H1870-10-00 | STARTING SWITCH ASSY Price: $76.99 |
| 6 | 7CU-H1833-10-00 | RING, STOP Price: $16.49 |
| 7 | 7CU-H1834-00-00 | RING Price: $17.49 |
| 8 | 7CU-H1835-10-00 | WASHER Price: $8.49 |
| 9 | 7UD-H1826-00-00 | BOLT Price: Call Us |
| 10 | 95817-08030-00 | BOLT, FLANGE This part replaces 95822-08030-00. Price: $9.49 |
| 11 | 90201-08879-00 | WASHER, PLATE Price: $1.60 |
| 12 | 92907-08100-00 | WASHER, SPRING This part replaces 92902-08100-00. Price: $9.49 |
