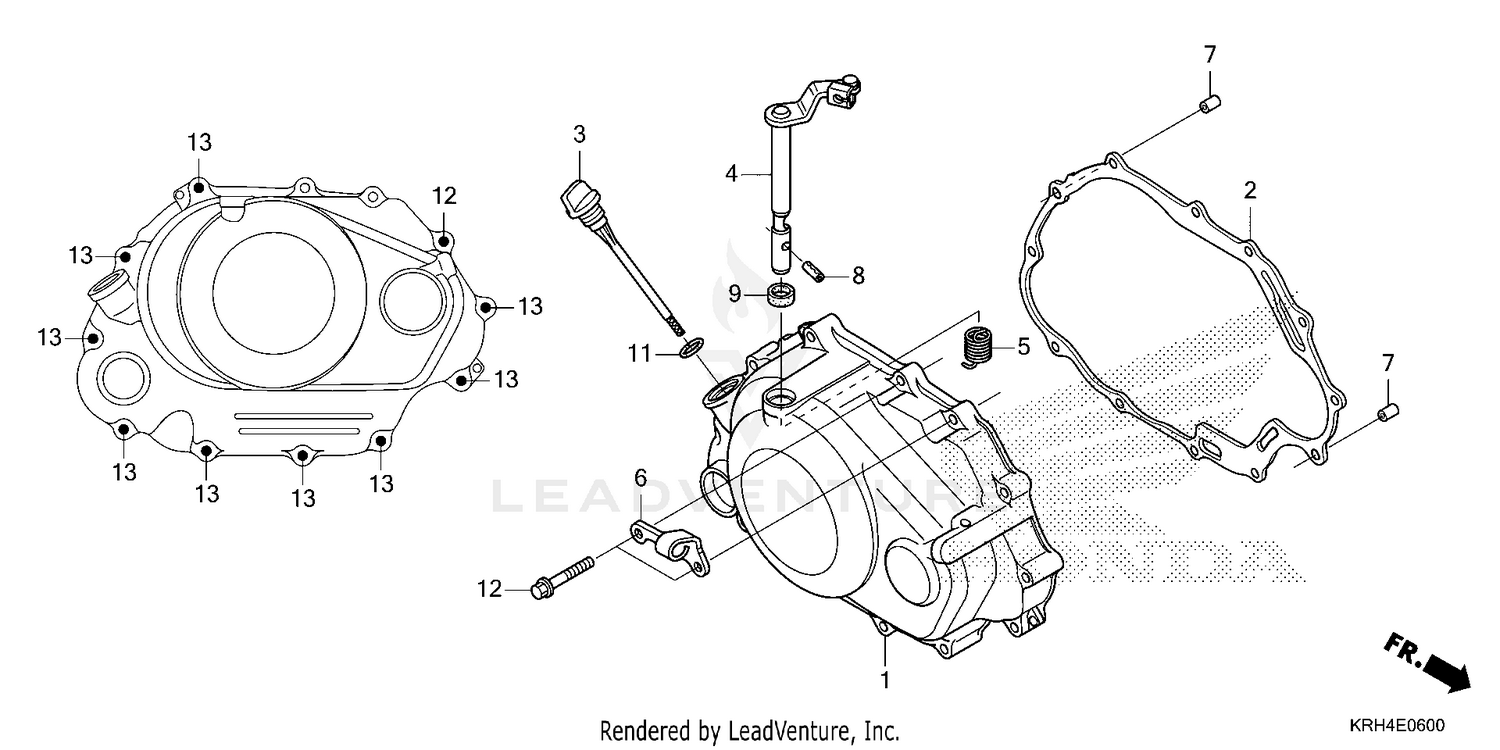

RIGHT CRANKCASE COVER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11330-KRH-J00 | COVER, R. CRANKCASE Price: $157.51 |
| 2 | 11393-KYA-C00 | GASKET, R COVER Price: $7.60 |
| 3 | 15651-KPT-A00 | DIPSTICK, OIL Price: $3.04 |
| 4 | 22810-KRH-K30 | LEVER, CLUTCH Price: $33.56 |
| 5 | 22815-KTT-900 | SPRING, CLUTCH LEVER Price: $3.95 |
| 6 | 22821-KRM-840 | RECEIVER, CLUTCH CABLE Price: $3.05 |
| 7 | 90702-KRM-840 | PIN, DOWEL (8X14) Price: $0.76 |
| 8 | 90703-KRH-900 | PIN, SPRING (3X10) Price: $2.02 |
| 9 | 91202-KSP-912 | OIL SEAL (12X18X4) (KOK) (NOT AVAILABLE) Price: $3.51 |
| 11 | 91307-KRM-840 | O-RING (18X3) Price: $0.95 |
| 12 | 96001-06030-00 | BOLT, FLANGE (6X30) Price: $1.60 |
