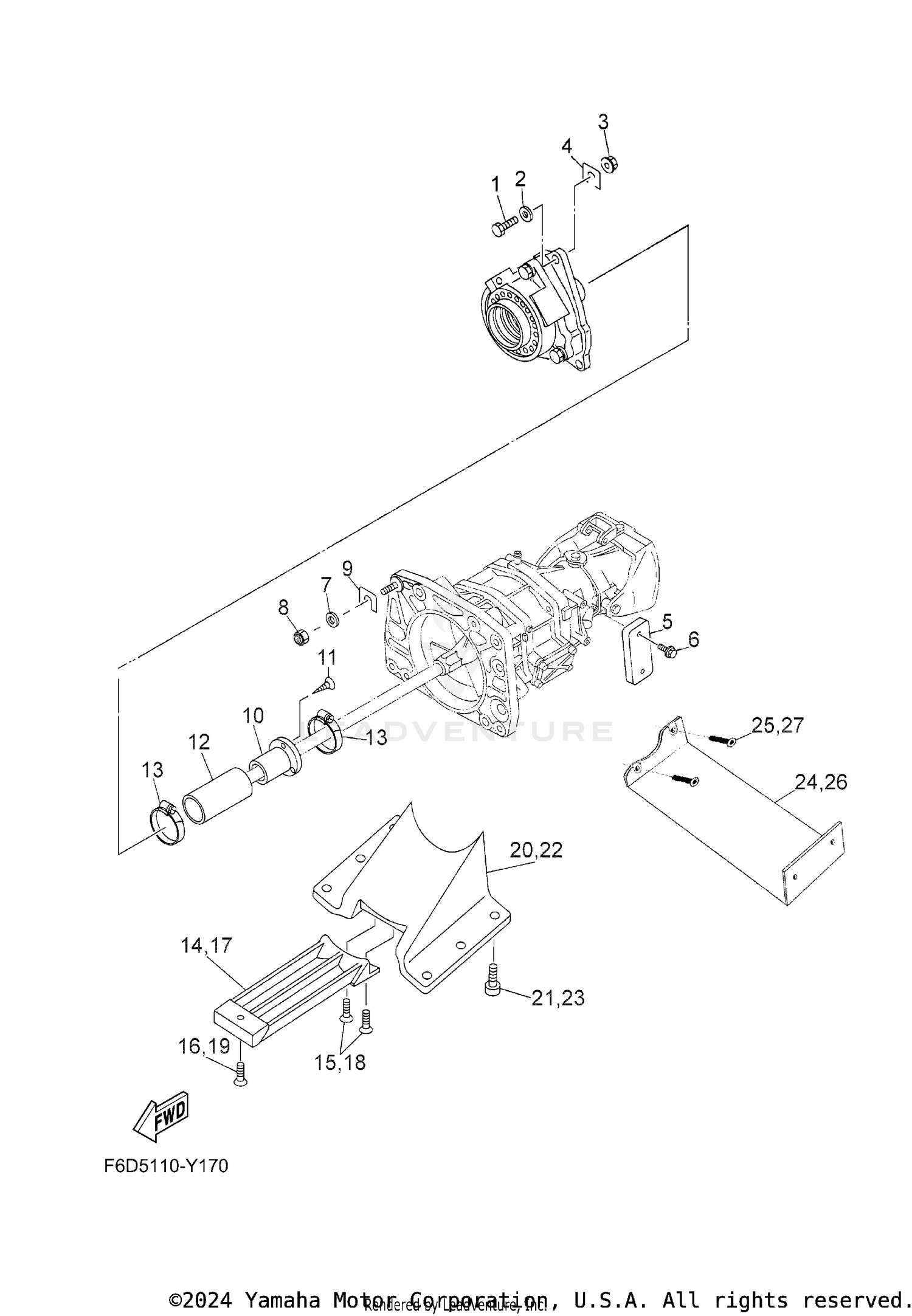

| Ref | Part Number | Description |
|---|
| 1 |
90101-08842-00 |
BOLT Price: $5.99 |
| 2 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 3 |
95780-08300-00 |
NUT, FLANGE Price: $11.80 |
| 5 |
F3F-U7697-00-00 |
ANODE (A006760850) Price: $30.99 |
| 6 |
90119-06894-00 |
BOLT, WITH WASHER This part replaces 90119-06893-00. Price: $1.99 |
| 7 |
90201-10802-00 |
WASHER, PLATE M10 Price: $5.99 |
| 8 |
90185-10816-00 |
NUT, SELF-LOCKING Price: $2.55 |
| 10 |
F6D-U883E-00-00 |
JOINT, PIPE Price: $7.49 |
| 11 |
90167-08S16-00 |
SCREW, TAPPING Price: $0.25 |
| 12 |
F6D-U883B-00-00 |
PIPE 1 Price: $9.49 |
| 13 |
90450-57802-00 |
HOSE CLAMP ASSY Price: $4.99 |
| 15 |
90111-08833-00 |
BOLT,HEX. SOCKET BUTTON Price: $5.99 |
| 16 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 18 |
90111-08833-00 |
BOLT,HEX. SOCKET BUTTON Price: $5.99 |
| 19 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 21 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 23 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 25 |
90111-08861-00 |
BOLT,HEX. SOCKET BUTTON Price: $7.99 |
