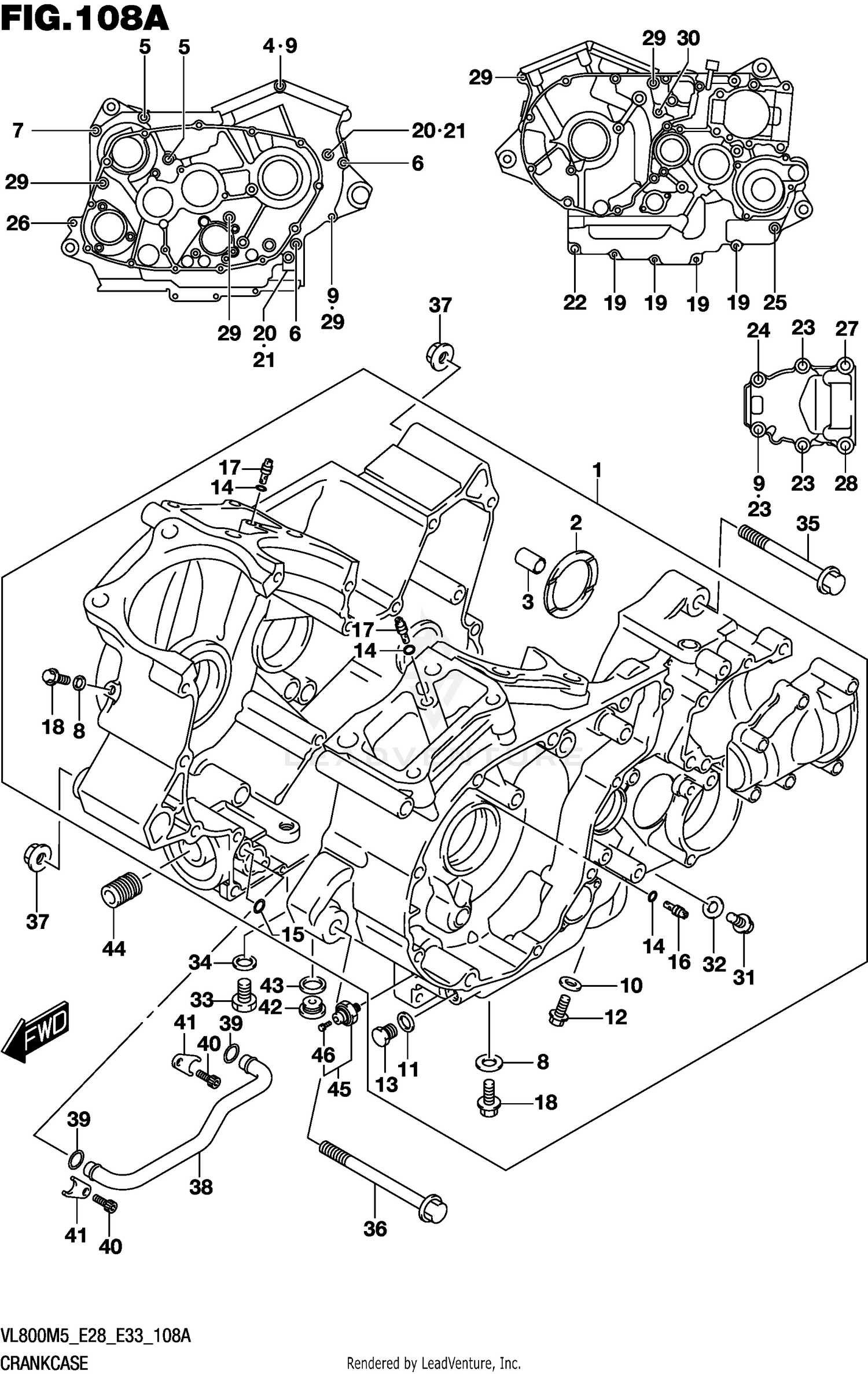

CRANKCASE
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11302-39830 | CRANKCASE SET Price: $2,919.46 |
| 8 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 9 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 10 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 11 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 12 | 09247-10008 | PLUG (10X12) Price: $2.37 |
| 13 | 09247-14026 | PLUG (14X12) Price: $4.57 |
| 14 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 15 | 09280-12009 | O-RING (D:1.9,ID:12.6) Price: $3.87 |
| 16 | 09493-20014 | JET,T/M OIL GALLERY Price: $17.72 |
| 17 | 09493-28010 | JET AIR (14) Price: $17.40 |
| 18 | 01550-0610A | BOLT Price: $2.37 |
| 19 | 01547-0640A | BOLT Price: $2.79 |
| 20 | 01550-0812A | BOLT Price: $2.79 |
| 21 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 22 | 01550-0835A | BOLT Price: $3.70 |
| 23 | 01550-0840A | BOLT Price: $3.72 |
| 31 | 01550-0812A | BOLT Price: $2.79 |
| 32 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 33 | 16591-06B01 | UNION,OIL STAND Price: $8.70 |
| 35 | 09168-10002 | GASKET (10X14X3.6) Price: $2.22 |
| 36 | 09103-10706 | BOLT (10X135) Price: $12.07 |
| 37 | 09103-10705 | BOLT (10X160) Price: $13.47 |
| 38 | 09159-10113 | NUT Price: $4.93 |
| 39 | 11451-38A00 | PIPE,OIL GALL Price: $21.23 |
| 40 | 09280-15008 | O-RING (D:3.1,ID:14.8) Price: $2.27 |
| 41 | 09106-06075 | BOLT (6X12) Price: $3.02 |
| 42 | 11461-38A00 | CLAMP,OIL PIPE Price: $1.50 |
| 43 | 09248-16013 | PLUG (16X12) Price: $5.95 |
| 44 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 45 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE Price: $26.40 |
