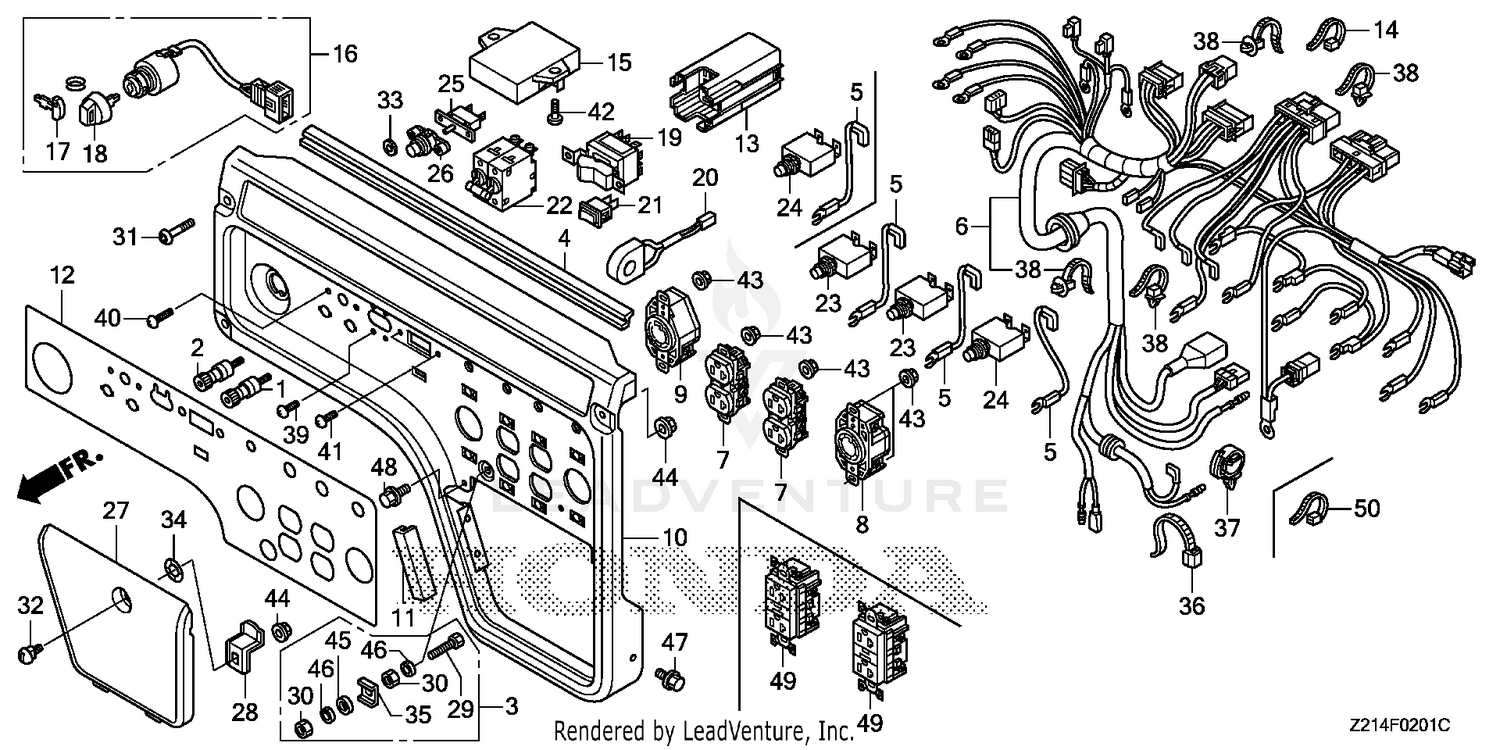

| Ref | Part Number | Description |
|---|
| 1 |
31408-880-000 |
SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (+) Price: $46.94 |
| 2 |
31409-880-000 |
SEE PART DETAILS - PRI; TERMINAL, D.C. OUTPUT (-) Price: $46.94 |
| 3 |
31428-Z22-000 |
TERMINAL SET, GROUND Price: $8.76 |
| 4 |
31462-Z23-F10 |
RUBBER, CONTROL PANEL Price: $10.46 |
| 5 |
32101-Z23-F20 |
SUB-WIRE ASSY. (A) Price: $8.34 |
| 6 |
32150-Z21-F20 |
WIRE HARNESS ASSY., CONTROL Price: $334.36 |
| 7 |
32330-Z21-A31 |
RECEPTACLE (20A/125V) (CONFIRM RECEPTACLE AS NON-GCFI. IF GCFI, TRY #42.) Price: $54.16 |
| 8 |
32332-Z21-E31 |
RECEPTACLE (20A-125/250V) Price: $91.68 |
| 9 |
32332-Z22-E31 |
RECEPTACLE (30A-125V) Price: $90.80 |
| 10 |
32345-Z23-F20ZB |
PANEL, CONTROL *R280* (POWER RED) Price: $302.66 |
| 11 |
32349-Z23-F10 |
RUBBER, CONTROL PANEL (LOWER) Price: $3.22 |
| 12 |
32366-Z21-F20 |
MARK, PANEL (EM-A) Price: $97.94 |
| 13 |
32395-Z30-S32 |
CONNECTOR (12P) Price: $118.62 |
| 14 |
32903-Z22-000 |
TIE, CABLE (C) Price: $2.24 |
| 15 |
34100-Z23-F21 |
CONTROL UNIT ASSY., ENGINE Price: $230.92 |
| 16 |
35100-Z1C-D22 |
SWITCH ASSY., COMBINATION This part replaces 35100-Z1C-D21. Price: $97.72 |
| 17 |
35110-Z5T-W01 |
KEY Price: $12.82 |
| 18 |
35110-Z5T-W11 |
KEY ASSY., COMBINATION SWITCH (BLACK) Price: $11.46 |
| 19 |
35320-Z23-F21 |
SWITCH ASSY., VOLT CHANGE Price: $113.92 |
| 20 |
35694-Z23-003 |
SENSOR ASSY. (CT) Price: $106.40 |
| 21 |
36214-Z11-A01 |
SWITCH, AUTO-THROTTLE (OTAX) Price: $25.18 |
| 22 |
38220-Z33-D41 |
BREAKER, CIRCUIT (17A) Price: $143.46 |
| 23 |
38240-Z23-F20 |
PROTECTOR, CIRCUIT (20A) Price: $93.20 |
| 24 |
38240-Z23-F20 |
PROTECTOR, CIRCUIT (20A) Price: $93.20 |
| 26 |
38250-ZA8-701 |
LENS ASSY., PROTECTOR (Honda Code 1888676). Price: $19.96 |
| 27 |
50361-Z23-F10 |
COVER (LOWER) Price: $52.34 |
| 28 |
50362-Z23-F10 |
LOCK PLATE, COVER (LOWER) Price: $10.22 |
| 29 |
90111-Z22-000 |
BOLT, HEX. (6X28) Price: $3.32 |
| 30 |
90112-Z22-000 |
NUT, HEX. (6MM) Price: $1.36 |
| 31 |
90128-MEM-630 |
BOLT, SOCKET (8X22) Price: $2.70 |
| 32 |
90163-Z23-F10 |
BOLT, MAINTENANCE LID LOCK Price: $2.92 |
| 33 |
90401-ZR4-F30 |
WASHER (4MM) Price: $1.38 |
| 34 |
90444-397-000 |
WASHER, WAVE (12MM) Price: $5.58 |
| 35 |
90501-ZA7-640 |
RETAINER (6MM) Price: $3.84 |
| 36 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 37 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 38 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 39 |
93500-03005-0G |
SCREW, PAN (3X5) (NOT AVAILABLE) Price: Call Us |
| 40 |
93500-03016-0G |
SCREW, PAN (3X16) Price: $0.94 |
| 41 |
93500-04006-0G |
SCREW, PAN (4X6) Price: $1.04 |
| 42 |
93892-05014-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (5X14) (Honda Code 0660720). Price: $1.38 |
| 43 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.54 |
| 44 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 45 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 46 |
94111-06000 |
SEE PART DETAILS - PRI; WASHER, SPRING (6MM) Price: $1.18 |
| 47 |
95701-06010-07 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) Price: $2.04 |
| 48 |
95701-06014-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884). Price: $1.26 |
