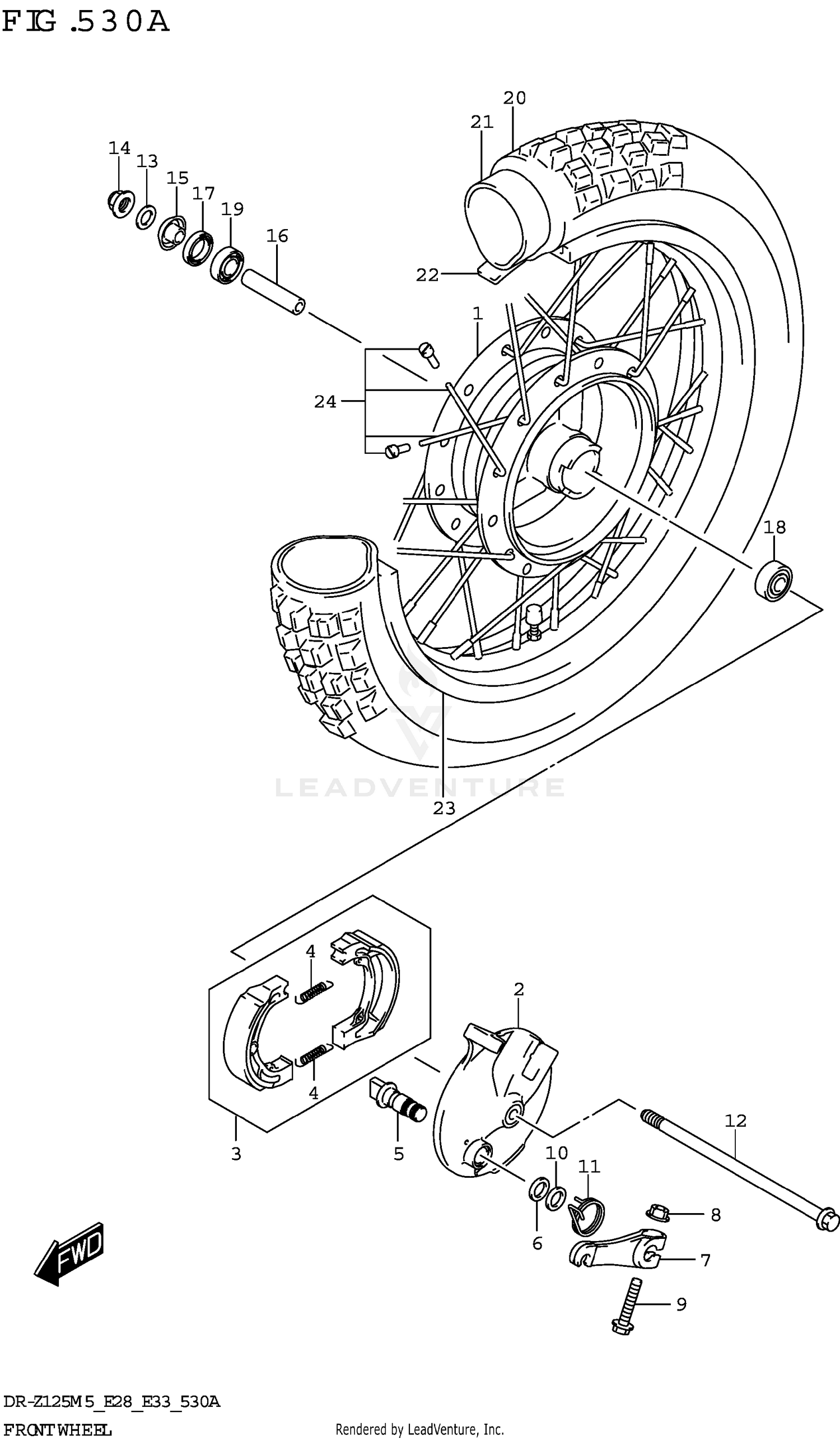

| Ref | Part Number | Description |
|---|
| 1 |
54110-09401 |
HUB, FRONT WHEEL Price: $196.35 |
| 2 |
54210-08G00 |
PANEL, FRONT BRAKE ANCHOR Price: $117.71 |
| 3 |
54401-43830 |
SHOE SET, BRAKE Price: $55.97 |
| 5 |
54441-35401 |
CAM, FRONT BRAKE Price: $13.33 |
| 6 |
09280-14011 |
O RING (D:2.5,ID:13.8) Price: $5.81 |
| 7 |
54451-26500 |
LEVER, BRAKE CAM Price: $18.76 |
| 8 |
08316-1006A |
NUT (6X12) Price: $2.64 |
| 9 |
01550-0635A |
BOLT Price: $2.79 |
| 10 |
09160-14055 |
WASHER (14.5X22X1.6) Price: $2.91 |
| 11 |
54484-08G00 |
SPRING, RETURN Price: $8.86 |
| 12 |
54711-08G00 |
AXLE, FRONT Price: $31.41 |
| 13 |
09160-10125 |
WASHER (10.5X22X3.2) Price: $1.71 |
| 14 |
08319-3110A |
NUT Price: $3.28 |
| 15 |
54740-26101 |
SPACER, AXLE RH Price: $20.38 |
| 16 |
09180-10148 |
SPACER (10.1X16X51) Price: $8.61 |
| 17 |
09284-15001 |
OIL SEAL (15X31X5) Price: $4.99 |
| 18 |
09262-10019 |
BEARING Price: Call Us |
| 19 |
08113-6200B |
BEARING Price: $12.51 |
| 21 |
55200-08G01 |
TUBE ASSY, WHEEL INNER Price: $24.60 |
| 22 |
55261-08G20 |
PROTECTOR, INNER TUBE Price: $5.50 |
| 23 |
55311-08G20 |
RIM, WHEEL (17X1.40) Price: $327.90 |
