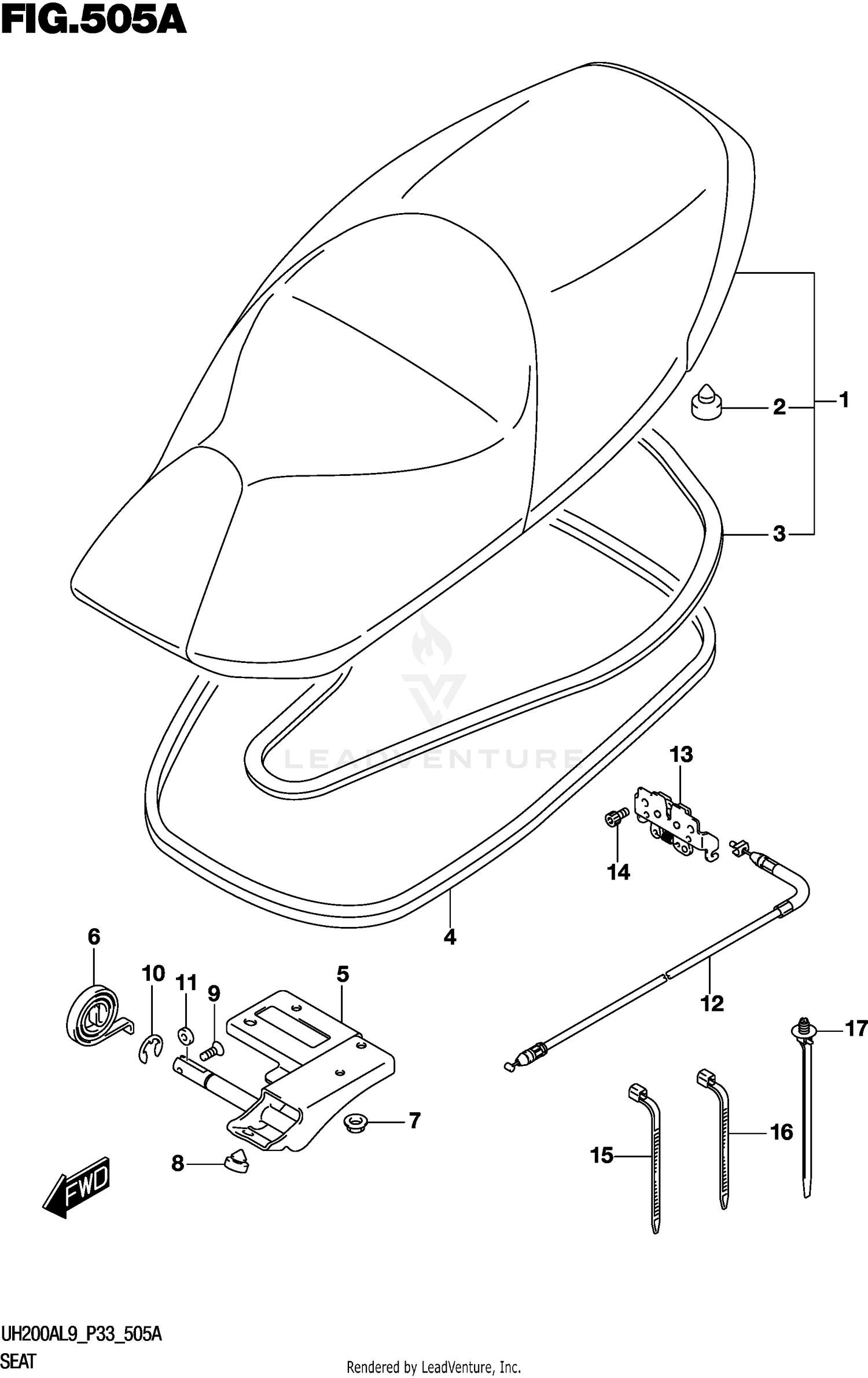

SEAT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45800-12J40-A0R | SEAT SET (BLACK/GRAY) This part replaces 45100-12J40-A0R. Price: $615.67 |
| 3 | 45148-12J00 | CUSHION,SEAT This part replaces 45148-12J10. Price: $12.25 |
| 4 | 45211-12J00 | MOLDING,SEAT Price: $33.77 |
| 5 | 45250-12J20 | BRACKET,SEAT HINGE UPPER Price: $65.16 |
| 6 | 45275-03H00 | SPRING,SEAT HINGE Price: $17.50 |
| 7 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 8 | 09321-10002 | CUSHION (11.5X22X20) Price: $2.30 |
| 9 | 02112-0512A | SCREW Price: $1.75 |
| 10 | 08332-1112A | E-RING Price: $2.27 |
| 11 | 09180-05004 | SPACER Price: Call Us |
| 12 | 45280-12J20 | CABLE,SEAT LOCK Price: $24.65 |
| 13 | 45700-12J00 | BRACKET,STRIKER SUPPORT Price: $25.32 |
| 14 | 01547-0612A | BOLT Price: $2.45 |
| 15 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 16 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
