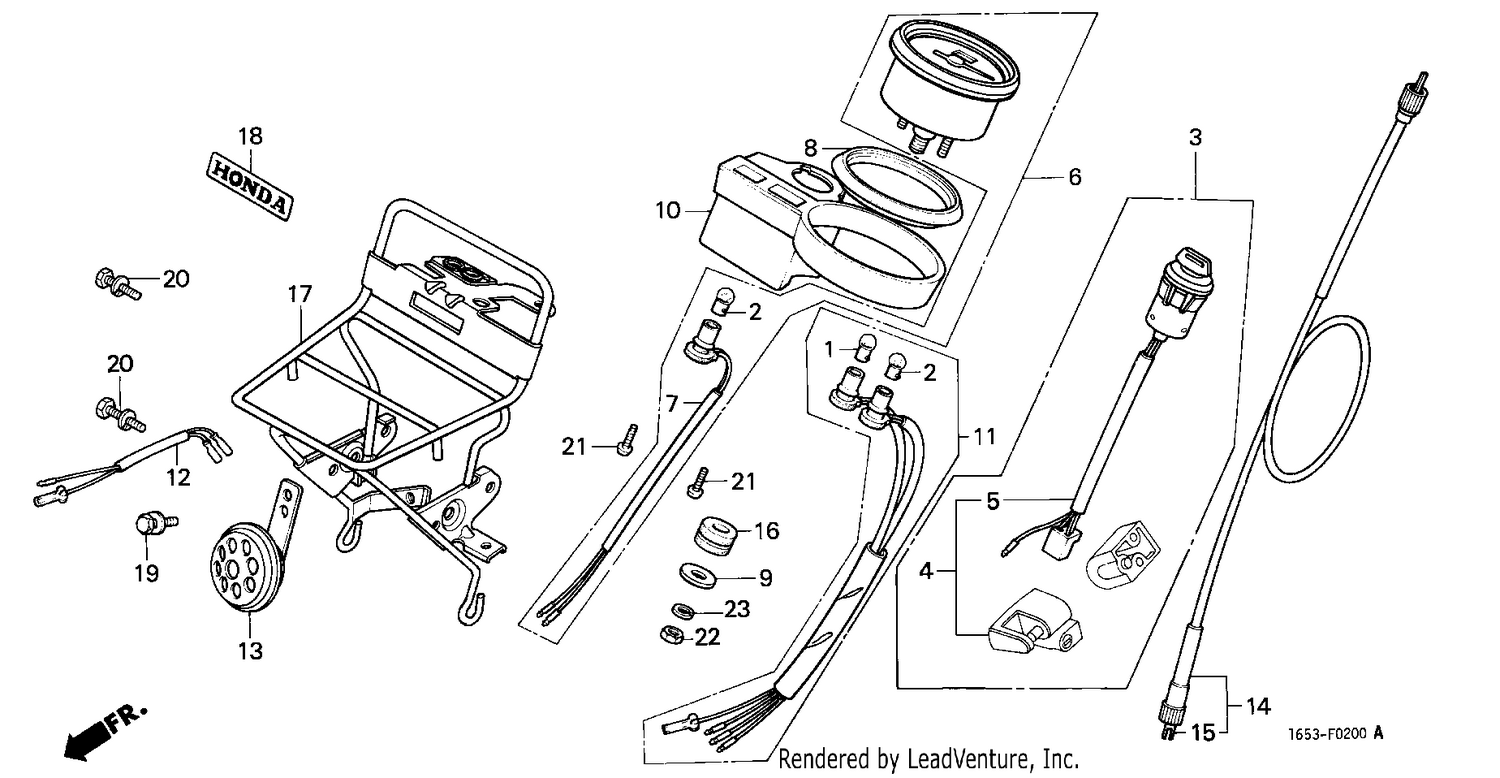

METER/HORN/KEY SET

METER/HORN/KEY SET

Parts (21)

RefPart NumberDescription
1 34902202000 BULB, DASH (6V 3W) Price: Call Us
2 34908230000 BULB, SPEEDOMETER (6V 1.7W) Price: Call Us
3 35010159010 KEY SET Price: Call Us
5 35100159017 SWITCH ASSY., COMBINATION (HONDA LOCK) Price: Call Us
6 37200165881 SPEEDOMETER ASSY. (KPH) Price: Call Us
7 37224GA5008 SOCKET COMP., ILLUMINATION Price: Call Us
8 37305149000 RUBBER, METER RING Price: Call Us
9 37314061810 WASHER, PLAIN, 5.5MM Price: Call Us
10 37601165008 COVER COMP., PILOT Price: Call Us
11 37619165791 CORD COMP., PILOT Price: Call Us
12 38105115000 SUB CORD, HORN Price: Call Us
13 38110382770 HORN COMP. Price: Call Us
14 44830165790 CABLE ASSY., SPEEDOMETER Price: Call Us
15 44831165790 CABLE, SPEEDOMETER INNER Price: Call Us
16 80101283000 RUBBER, RR. FENDER CUSHION Price: Call Us
17 81100165790ZA CARRIER, FR. *NH105* Price: Call Us
18 87127159000 EMBLEM, HEADLIGHT CASE BRACKET Price: Call Us
19 934820601200 BOLT-WASHER, 6X12 Price: Call Us
20 934820601600 BOLT-WASHER, 6X16 Price: Call Us
21 9390124380 SCREW, TAPPING, 4X12 Price: Call Us
22 94001050000S NUT, HEX., 5MM Price: Call Us
