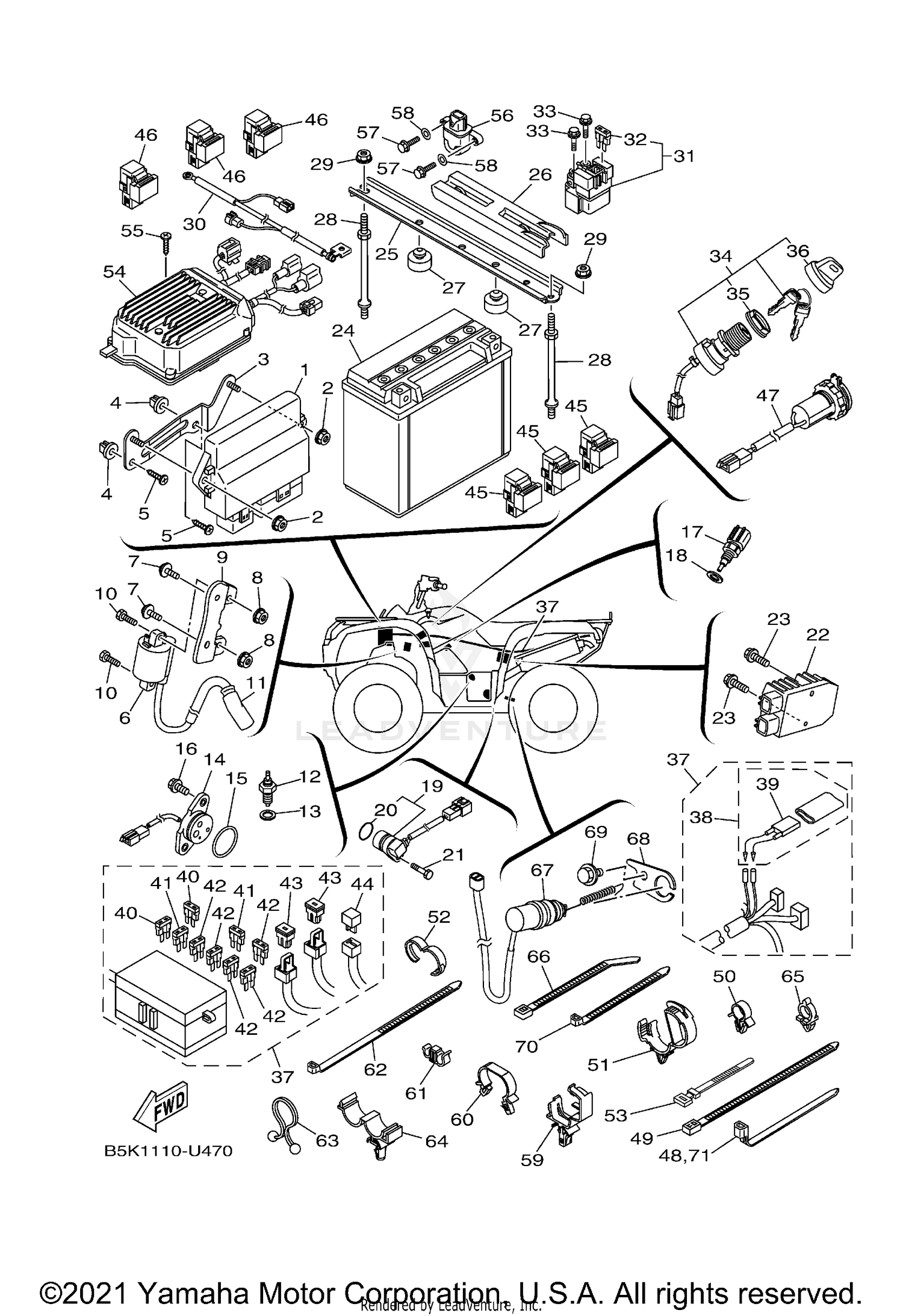

| Ref | Part Number | Description |
|---|
| 1 |
B5K-8591A-21-00 |
ENGINE CONTROL UNI This part replaces B5K-8591A-20-00. Price: $1,021.99 |
| 2 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 3 |
B4F-H5991-00-00 |
BRACKET, UNIT Price: $6.49 |
| 4 |
90338-08226-00 |
PLUG Price: $2.35 |
| 5 |
97707-60520-00 |
SCREW, TAPPING This part replaces 97702-60520-00. Price: $9.49 |
| 6 |
1D7-H2310-05-00 |
IGNITION COIL ASSY This part replaces 1D7-82310-03-00. Price: $23.99 |
| 7 |
97017-06020-00 |
BOLT This part replaces 97012-06020-00. Price: $4.06 |
| 8 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 9 |
B4F-82316-00-00 |
BRACKET, IGNITION CO Price: $4.30 |
| 10 |
90119-06209-00 |
BOLT, WITH WASHER Price: $6.49 |
| 11 |
5VK-82370-00-00 |
PLUG CAP ASSY Price: $68.99 |
| 12 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 13 |
90430-10148-00 |
GASKET Price: $5.99 |
| 14 |
3B4-82540-03-00 |
NEUTRAL SWITCH ASSY This part replaces 3B4-82540-01-00. Price: $82.99 |
| 15 |
93210-29196-00 |
O-RING Price: $9.49 |
| 16 |
90119-06137-00 |
BOLT, WITH WASHER Price: $9.49 |
| 17 |
5YP-85790-00-00 |
THERMOSENSOR ASSY Price: $70.99 |
| 18 |
90430-12202-00 |
GASKET Price: $9.49 |
| 19 |
3B4-83755-01-00 |
SENSOR, SPEED Price: $143.99 |
| 20 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 21 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 22 |
1D7-81960-11-00 |
RECTIFIER & REGULATOR ASSY This part replaces 1D7-81960-10-00. Price: $267.99 |
| 23 |
95D32-06020-00 |
BOLT, FLANGE DEEP RECESS Price: $1.35 |
| 24 |
YTX-20LBS-00-00 |
YTX20LBS YUASA BATT This part replaces 5FU-H2100-20-00. Price: $165.99 |
| 25 |
1HP-H2128-00-00 |
BRACKET, BATTERY Price: $9.49 |
| 26 |
3B4-82129-00-00 |
COVER, BATTERY Price: $7.49 |
| 27 |
B4F-F4741-00-00 |
PAD, SEAT Price: $1.40 |
| 28 |
3B4-82133-20-00 |
SCREW, FITTING Price: $24.99 |
| 29 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 30 |
34D-82116-01-00 |
WIRE, MINUS LEAD Price: $68.99 |
| 31 |
3B4-81940-00-00 |
STARTER RELAY ASSY (2768113-A) Price: $95.99 |
| 32 |
36Y-82151-00-00 |
FUSE (15A-BLUE) Price: $6.49 |
| 33 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 34 |
28P-82510-02-00 |
MAIN SWITCH ASSY This part replaces 28P-82510-01-00. Price: $75.99 |
| 35 |
3HN-82569-00-00 |
NUT, MAIN SWITCH Price: $5.99 |
| 36 |
3HN-82579-00-00 |
CAP, KEY Price: $15.49 |
| 37 |
B5K-82590-03-00 |
WIRE HARNESS ASSY This part replaces B5K-82590-02-00. Price: $911.99 |
| 38 |
5GT-82180-00-00 |
CIRCUIT BREAKER ASSY This part replaces 4GB-82180-00-00. Price: $35.99 |
| 39 |
4GB-82560-00-00 |
THERMO SWITCH ASSY Price: $42.99 |
| 40 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 41 |
5JJ-82151-20-00 |
FUSE (20A-BL) Price: $8.49 |
| 42 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 43 |
JR9-82151-00-00 |
SLOW BLOW FUSE This part replaces 5PS-82151-00-00. Price: $13.49 |
| 44 |
3WP-81980-00-00 |
DIODE ASSY Price: $24.99 |
| 45 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 46 |
8DM-81950-11-00 |
RELAY ASSY (8DM-11) Price: $33.99 |
| 47 |
1HP-H254B-10-00 |
TERMINAL COMP. Price: $20.99 |
| 48 |
90464-15195-00 |
CLAMP Price: $4.41 |
| 49 |
90464-40825-00 |
CLAMP Price: $3.05 |
| 50 |
90464-15157-00 |
CLAMP Price: $9.49 |
| 51 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 52 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 53 |
437-83936-11-00 |
BAND, SWITCH CORD Price: $5.00 |
| 54 |
2BG-859A0-01-00 |
POWER STRG. CONT. UNIT ASSY This part replaces 2BG-859A0-00-00. Price: $1,032.99 |
| 55 |
98980-06020-00 |
SCREW, BIND This part replaces 98902-06020-00. Price: $9.49 |
| 56 |
3B4-82576-10-00 |
SENSOR, LEAN ANGLE Price: $64.99 |
| 57 |
97095-05016-00 |
BOLT This part replaces 97002-05016-00. Price: $1.75 |
| 58 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 59 |
90464-20237-00 |
CLAMP Price: $2.60 |
| 60 |
90464-24230-00 |
CLAMP Price: $8.49 |
| 61 |
90464-09027-00 |
CLAMP Price: $2.30 |
| 62 |
25G-83936-01-00 |
BAND, SWITCH CORD This part replaces 90464-12045-00. Price: $5.49 |
| 63 |
90464-14800-00 |
CLAMP Price: $3.70 |
| 64 |
90464-16012-00 |
CLAMP Price: $8.49 |
| 65 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 66 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 67 |
18P-82530-01-00 |
STOP SWITCH ASSY This part replaces 18P-82530-00-00. Price: $43.99 |
| 68 |
B16-21441-00-00 |
BRACKET, STOP SWITCH Price: $4.90 |
| 69 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95822-06010-00. Price: $3.20 |
| 70 |
90465-13M11-00 |
CLAMP Price: $8.49 |
