Parts Catalog

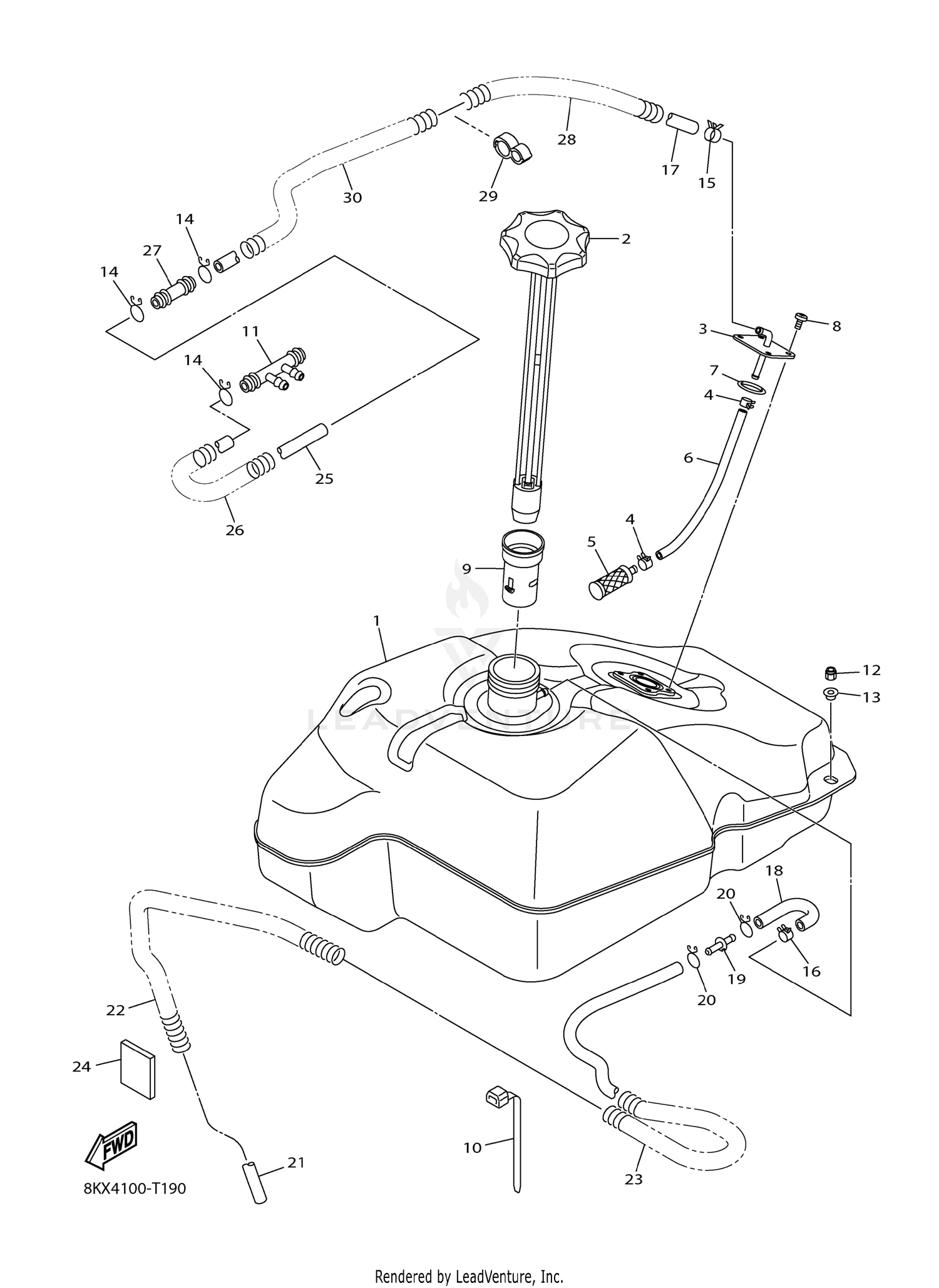

FUEL TANK [106345]

Parts (29)

Ref	Part Number	Description
1	3021-129	Tank, Fuel Price: $607.99
2	3021-134	Cap Assy Price: $180.95
3	3021-132	Suction Pipe Comp 1 Price: $39.95
4	3021-486	Clip Price: $3.19
5	3021-705	Filter Assy Price: $42.95
6	3021-461	Hose (L240) Price: $4.49
7	3021-557	O-Ring Price: $3.29
8	3021-678	Screw, Bind Price: $2.13
9	3021-130	Tube, Filler Price: $4.99
10	3021-474	Clamp Price: $1.39
11	3020-723	Pipe, Joint 1 Price: $28.95
12	3021-619	Nut, Nylon Price: $2.34
13	3021-426	Collar Price: $3.59
14	3021-485	Clip Price: $3.19
15	3021-486	Clip Price: $3.19
16	3021-484	Clip Price: $0.79
17	3021-456	Hose Price: $38.95
18	3021-133	Pipe, Joint Price: $4.37
19	3021-002	Pipe, Joint 1 Price: $16.79
20	3021-483	Clip Price: $4.37
21	3021-520	Tube, Flexible Price: $16.79
22	3021-496	Spring, Compression Price: $16.79
23	3020-718	Protector, Pipe Price: $14.55
24	3021-248	Spacer Price: $6.69
25	3021-453	Hose Price: $23.53
26	3020-781	Protector, Pipe Price: $11.18
27	3020-811	Pipe, Joint 4 Price: $11.18
28	3021-499	Spring, Compression Price: $12.30
29	3021-470	Clamp Price: $6.69
