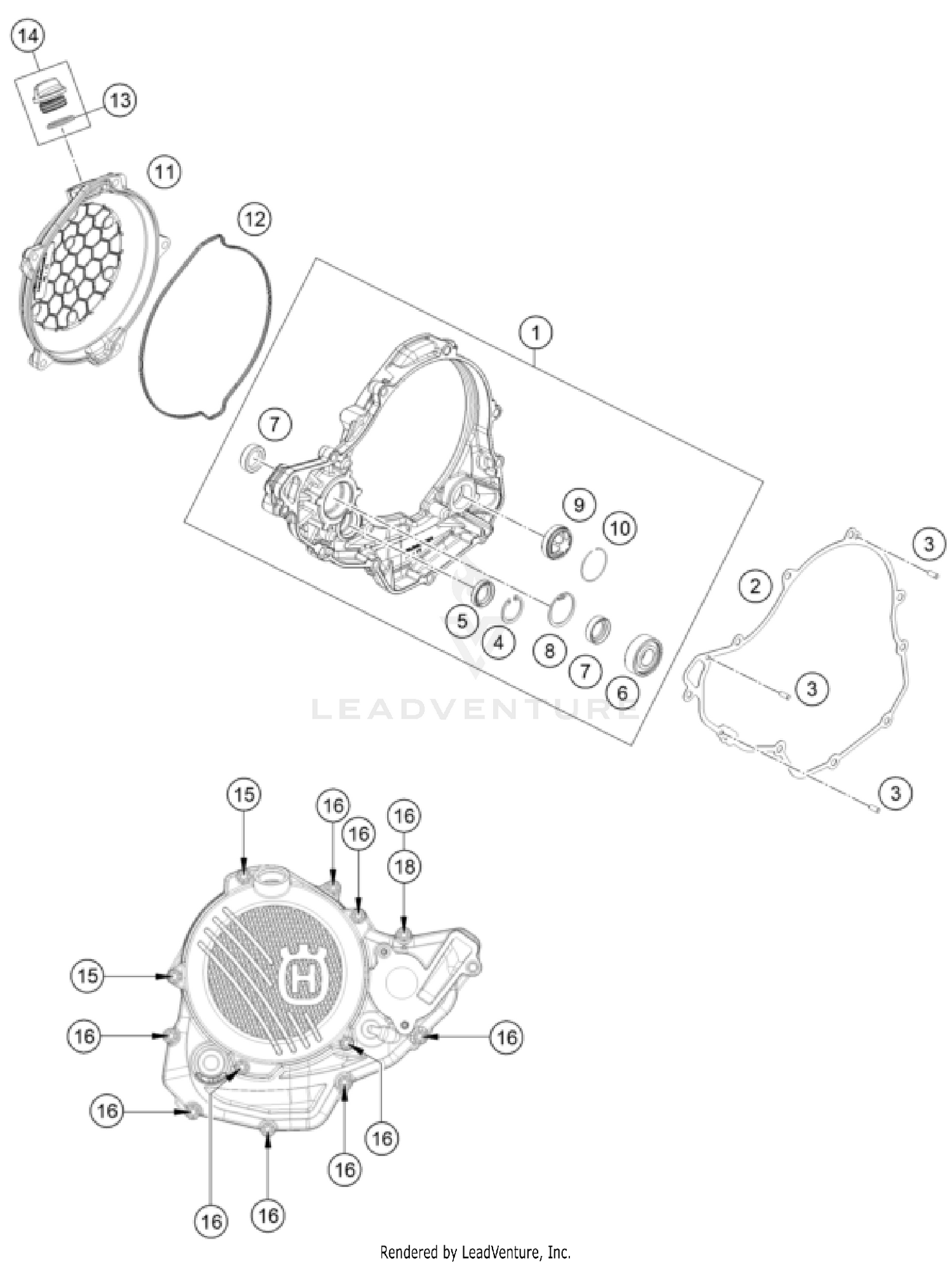

CLUTCH COVER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A46030025000 | Clutch cover gasket Price: $13.96 |
| 3 | 0402040980 | NEEDLE ROL.DIN5402 NRB 4X9,8 Price: $3.99 |
| 4 | 0472024120 | CIRCLIP DIN0472-24X1.2 Price: $1.99 |
| 5 | 0760142450 | SHAFT SEAL RING 14X24X5 VITON Price: $18.91 |
| 6 | 0625062022 | BALL BEARING 6202 C0 2 Price: $17.04 |
| 7 | 07601530451 | SHAFT SEAL RING 15X30X4.5 BAUD Price: $8.02 |
| 8 | 0472300120 | CIRCLIP 30X1,2 Price: $1.99 |
| 9 | 59030019200 | OIL SIGHT GLASS Price: $25.07 |
| 10 | 61030019050 | CIRCLIP OIL LEVEL GLASS 03 Price: $1.99 |
| 11 | A48030626000JA | Clutch cover outside Price: $68.96 |
| 12 | A48030027000 | Clutch cover gasket external Price: $8.13 |
| 13 | 0770191015 | O-RING 19,00X3,00 NBR Price: $2.99 |
| 14 | 79430020033 | OIL FILLER CAP M24x3 WITH O-R Price: $9.45 |
| 15 | 0025060456 | HH COLLAR SCREW M6X45 TX30 Price: $2.99 |
| 16 | 0025060256 | HH collar screw M6x25 TX30 Price: $3.99 |
