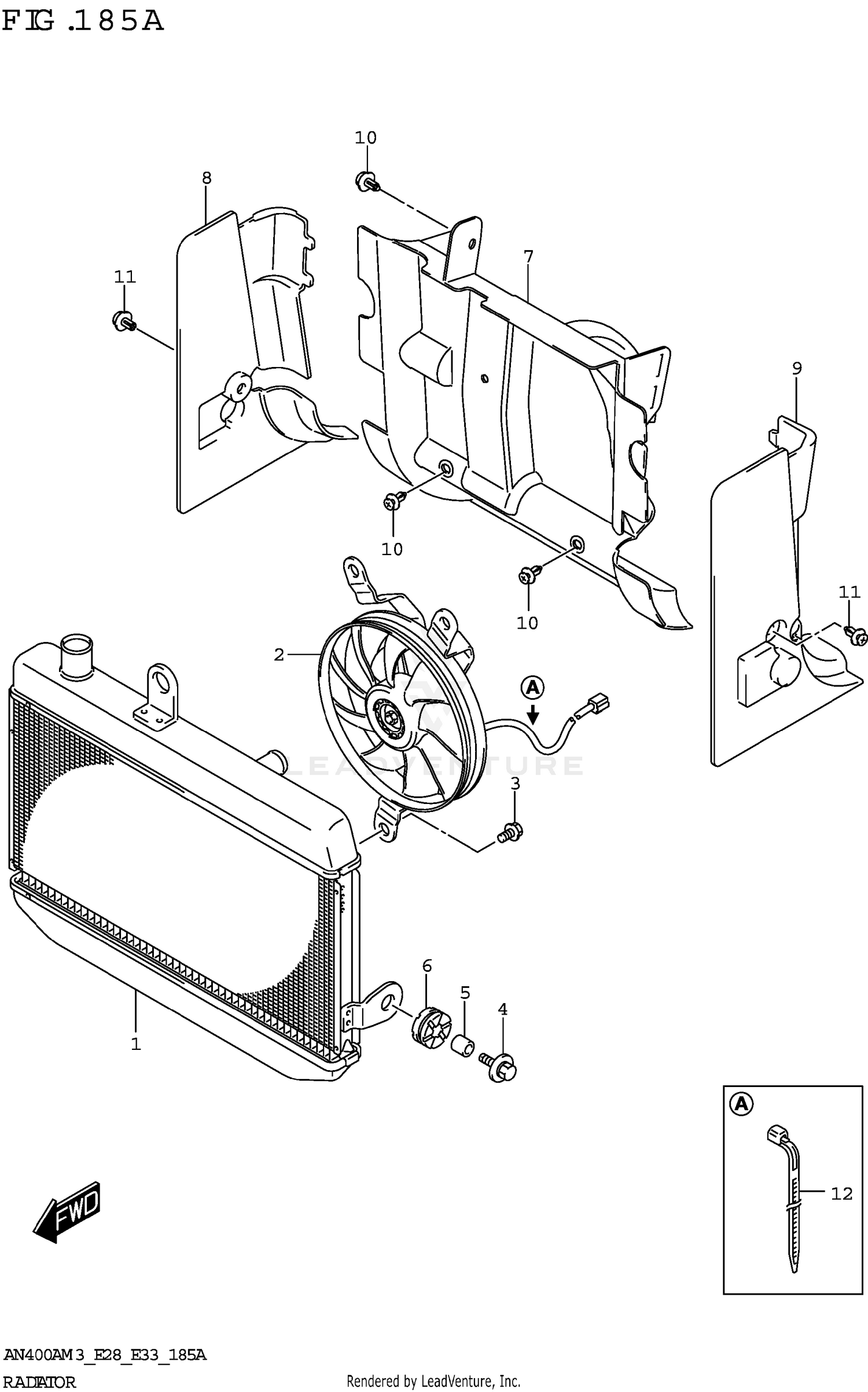

RADIATOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17710-19K10 | RADIATOR ASSY,WATER Price: $771.84 |
| 2 | 17800-19K00 | FAN ASSY, RADIATOR Price: $391.45 |
| 3 | 17711-40F00 | BOLT,FAN ASSY Price: $6.03 |
| 4 | 09118-06097 | BOLT (6X25) Price: $3.02 |
| 5 | 09180-06290 | SPACER (6.5X10X12) Price: $2.45 |
| 6 | 09320-10051 | CUSHION Price: $3.80 |
| 7 | 17771-19K00 | SHIELD,RADIATOR HEAT CTR Price: $44.82 |
| 8 | 17772-05H00 | SHIELD,RADIATOR HEAT RH Price: $22.06 |
| 9 | 17773-05H01 | SHIELD,RADIATOR HEAT,L Price: $21.66 |
| 10 | 09409-06322-5PK | CLIP (BLACK) This part replaces 09409-06322. Price: $3.83 |
| 11 | 09409-06313 | CLIP Price: $3.54 |
