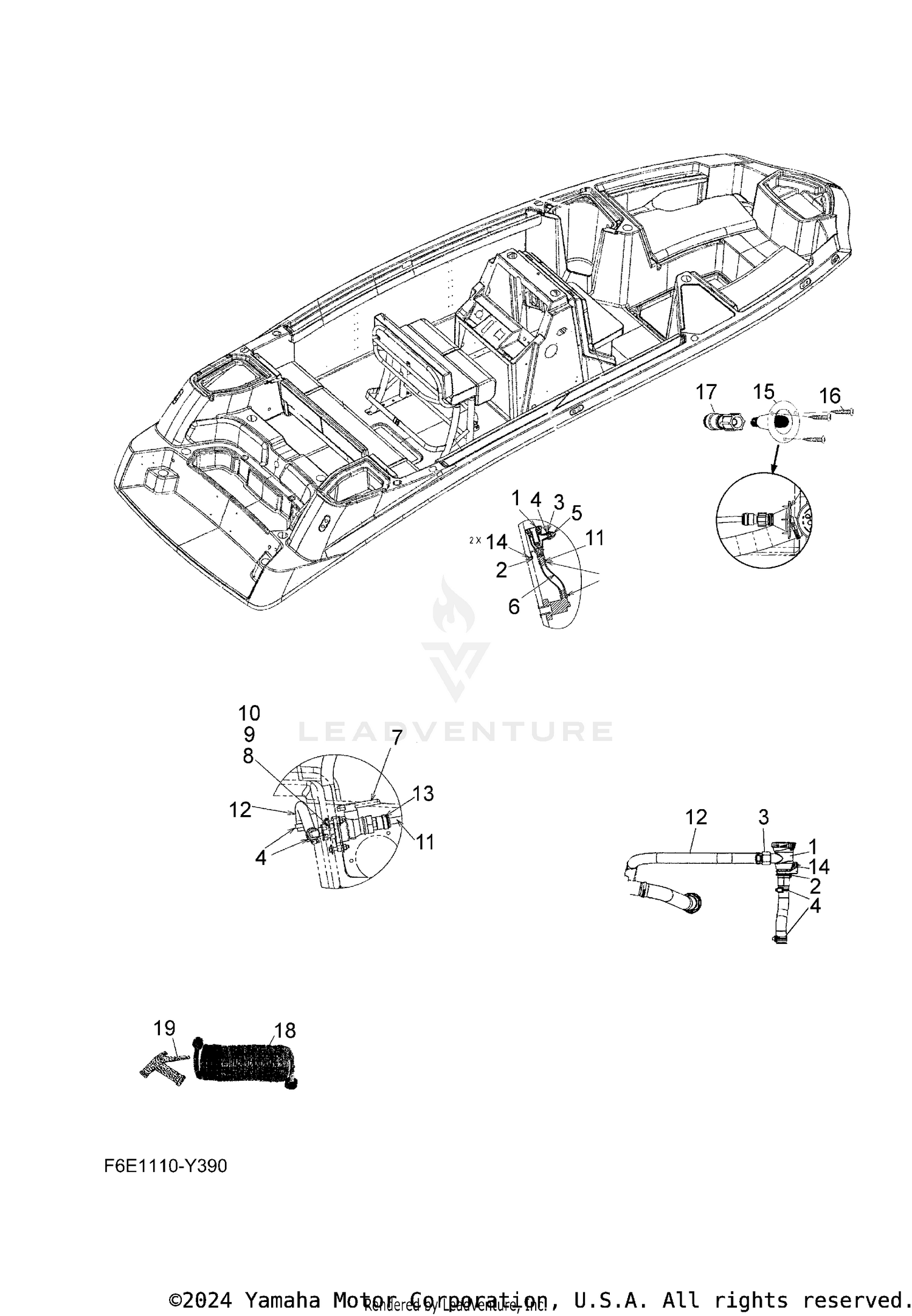

LIVE WELL & PIPING
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F6H-U8362-10-00 | MOTOR ASSY. Price: $104.99 |
| 2 | F6H-U1385-20-00 | FITTING, HOSE Price: $13.99 |
| 3 | F4A-U762A-10-00 | JOINT, HOSE Price: $17.99 |
| 4 | 90450-33805-00 | HOSE CLAMP ASSY Price: $10.99 |
| 5 | F6E-U4224-00-00 | HOSE Price: $7.49 |
| 6 | F6E-U4224-10-00 | HOSE Price: $49.99 |
| 7 | F3M-U7881-00-00 | VALVE, 1 Price: $81.99 |
| 8 | F6H-U72M2-00-00 | HOSE 1 Price: $26.99 |
| 9 | F4A-U762A-00-00 | JOINT, HOSE Price: $6.99 |
| 10 | 9572R-06300-00 | NUT, FLANGE Price: $8.99 |
| 11 | F6H-U8366-20-00 | HOSE Price: $11.99 |
| 12 | F6E-U4224-00-00 | HOSE Price: $7.49 |
| 13 | F6H-U7857-00-00 | JOINT,HOSE Price: $11.99 |
| 14 | 90161-08S16-00 | SCREW, COUNTERSUNK(# This part replaces 90151-08SA2-00. Price: $4.99 |
| 15 | F3M-U1385-00-00 | FITTING, HOSE Price: $227.99 |
| 16 | 90161-10S12-00 | SCREW, TAPPING Price: $5.99 |
| 17 | F3M-U7620-10-00 | HOSE JOINT Price: $19.99 |
| 18 | F4A-U4208-00-00 | HOSE ASSY. Price: $91.99 |
