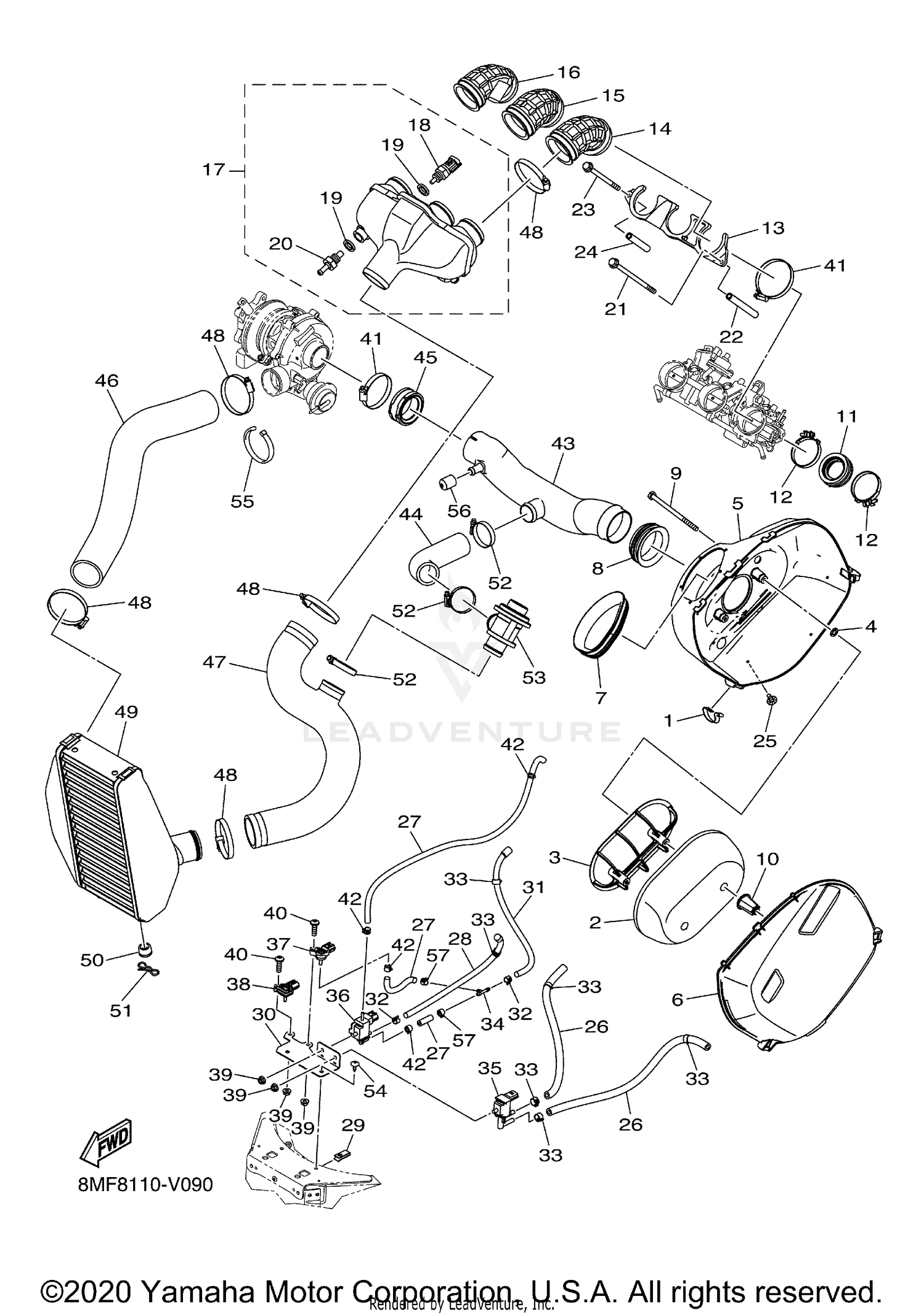

| Ref | Part Number | Description |
|---|
| 1 |
8KC-E4436-00-00 |
HOOK Price: $4.80 |
| 2 |
8KC-E4451-10-00 |
ELEMENT, AIR CLEANER Price: $50.99 |
| 3 |
8KC-E4458-00-00 |
GUIDE Price: $68.99 |
| 4 |
8JP-RA347-00-00 |
NUT, 1/4 Price: $1.75 |
| 5 |
8KC-E4431-10-00 |
SILENCER, INTAKE 1 Price: $146.99 |
| 6 |
8KC-E4441-00-00 |
SILENCER, INTAKE 2 Price: $61.99 |
| 7 |
8KC-E6815-10-00 |
BOOT Price: $8.49 |
| 8 |
8KC-E5472-00-00 |
SEAL, AIR DUCT Price: $6.49 |
| 9 |
8JP-RA1B0-00-00 |
BOLT, HEX. M6X1X100 Price: $1.75 |
| 10 |
8KC-E4164-00-00 |
NUT, HOLDING Price: $7.99 |
| 11 |
8GL-13595-00-00 |
JOINT Price: $20.99 |
| 12 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 13 |
8KJ-14291-00-00 |
BRACKET 1 Price: $33.99 |
| 14 |
8KJ-14453-01-00 |
JOINT, AIR CLEANER 1 This part replaces 8KJ-14453-00-00. Price: $38.99 |
| 15 |
8KJ-14463-01-00 |
JOINT, AIR CLEANER 2 This part replaces 8KJ-14463-00-00. Price: $39.99 |
| 16 |
8KJ-14454-01-00 |
JOINT This part replaces 8KJ-14454-00-00. Price: $71.99 |
| 17 |
8KJ-13630-00-00 |
INTAKE MANIFOLD ASSY. Price: $234.99 |
| 18 |
65L-85886-00-00 |
THERMOSENSOR Price: $77.25 |
| 19 |
6S5-14285-00-00 |
WASHER Price: $2.49 |
| 20 |
8KJ-14251-00-00 |
NIPPLE Price: $22.99 |
| 21 |
8KC-RA1A2-00-00 |
BOLT, FLANGE Price: $8.49 |
| 22 |
8KC-RA712-00-00 |
COLLAR Price: $20.99 |
| 23 |
8KC-RA1B4-00-00 |
BOLT, FLANGE Price: $3.45 |
| 24 |
8KC-RA713-00-00 |
COLLAR, 1 Price: $10.49 |
| 25 |
8JP-RA202-00-00 |
SCREW, TAPPING 1/4-20X0.5 Price: $1.70 |
| 28 |
8KC-RA906-00-00 |
HOSE, 2 Price: $16.99 |
| 29 |
8JP-RA351-00-00 |
NUT, CLIP 10 Price: $1.45 |
| 30 |
8KC-H3614-00-00 |
BRACKET Price: $2.35 |
| 31 |
8KC-RA907-00-00 |
HOSE, 3 Price: $6.49 |
| 32 |
8KC-RAB02-00-00 |
CLAMP, 3 Price: $1.60 |
| 33 |
8JP-RAB20-00-00 |
CLAMP, 18 Price: $2.05 |
| 34 |
8KC-E4485-00-00 |
PIPE, JOINT Price: $1.25 |
| 35 |
8KJ-86120-00-00 |
SOLENOID VALVE ASSY Price: $184.99 |
| 36 |
8KJ-86130-00-00 |
SOLENOID VALVE ASSY 2 Price: $154.99 |
| 37 |
6BH-82380-00-00 |
SENSOR, PRESSURE Price: $282.99 |
| 38 |
1WS-82380-00-00 |
SENSOR, PRESSURE Price: $209.99 |
| 39 |
8KC-RA309-00-00 |
NUT Price: $0.25 |
| 40 |
8JP-RA258-00-00 |
SCREW, M6X1.0X20 Price: $1.05 |
| 41 |
8JP-RAB06-00-00 |
CLAMP, 4 Price: $10.49 |
| 42 |
8MY-RAB00-00-00 |
CLAMP, 1 Price: $1.50 |
| 43 |
8KC-E4437-00-00 |
DUCT Price: $54.99 |
| 44 |
8KC-E3547-00-00 |
HOSE 3 Price: $31.99 |
| 45 |
8KC-E547B-00-00 |
SEAL, AIR DUCT Price: $5.99 |
| 46 |
8KC-E3545-00-00 |
HOSE 1 Price: $119.99 |
| 47 |
8KC-E3546-10-00 |
HOSE,AIR 2 This part replaces 8KC-E3546-00-00. Price: $311.99 |
| 48 |
8KC-RAB03-00-00 |
CLAMP, 1 Price: $3.40 |
| 49 |
8KC-E3670-00-00 |
AIR COOLER ASSY. Price: $369.99 |
| 50 |
8KC-E4435-00-00 |
GROMMET Price: $4.30 |
| 51 |
8KC-RAK01-00-00 |
PIN, 1 Price: $2.00 |
| 52 |
8KC-RAB04-00-00 |
CLAMP, 2 Price: $5.00 |
| 53 |
8KJ-13680-00-00 |
AIR BY-PASS VALVE ASSY. Price: $305.99 |
| 54 |
8KC-RA290-00-00 |
SCREW Price: $2.25 |
| 56 |
8MF-E4799-00-00 |
CAP Price: $1.90 |
