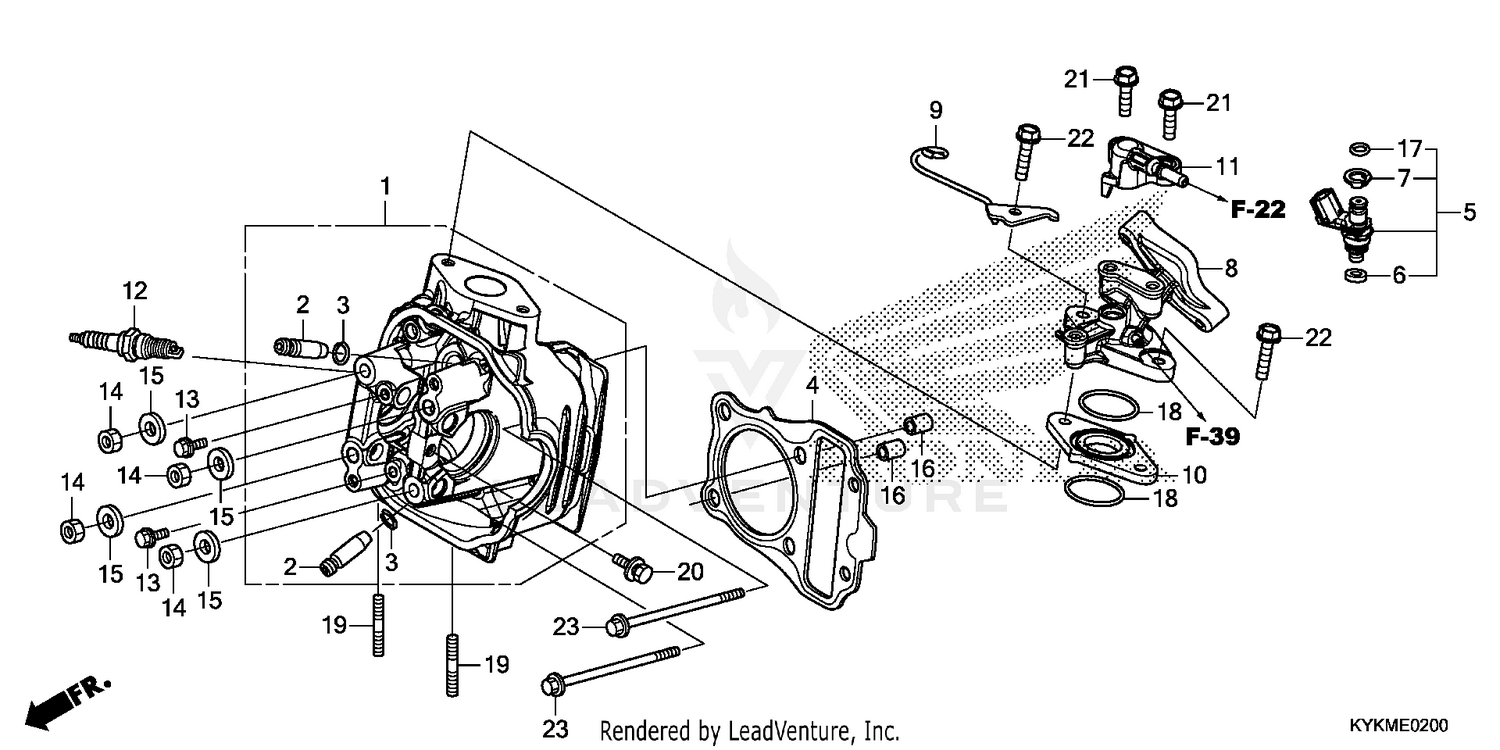

| Ref | Part Number | Description |
|---|
| 1 |
12200-KYK-D10 |
CYLINDER HEAD Price: $291.40 |
| 2 |
12204-KVY-305 |
GUIDE, VALVE (OVER SIZE) Price: $12.13 |
| 3 |
12206-KPL-900 |
CLIP, VALVE GUIDE Price: $3.91 |
| 4 |
12251-KWB-601 |
GASKET, CYLINDER HEAD Price: $14.27 |
| 5 |
16450-K28-A61 |
INJECTOR ASSY., FUEL Price: $160.29 |
| 6 |
16472-KPC-D50 |
RING, SEAL (Honda Code 8954000) Price: $2.56 |
| 7 |
16473-HR3-A42 |
DUST SEAL RING Price: $7.73 |
| 8 |
17110-KYK-D10 |
PIPE, INLET Price: $249.67 |
| 9 |
17118-KYK-D10 |
CLAMP, HIGH TENSION CORD Price: $6.20 |
| 10 |
17119-KSS-J00 |
INSULATOR, IN. PIPE Price: $13.09 |
| 11 |
17560-KYK-D10 |
JOINT, INJECTOR Price: $36.91 |
| 12 |
31916-KWB-601 |
SPARK PLUG (CPR6EA-9S) (NGK) Price: $5.36 |
| 13 |
90002-KWB-600 |
BOLT, FLANGE (5X12) Price: $1.07 |
| 14 |
90201-GCC-000 |
NUT, HEX. (7MM) Price: $1.07 |
| 15 |
90402-KWW-740 |
WASHER (7.2X16X2.5) Price: $2.60 |
| 16 |
90701-KVR-C00 |
PIN, DOWEL SPECIAL (8X14) Price: $2.09 |
| 17 |
91301-GGL-J01 |
O-RING (6.3X2.2) Price: $12.67 |
| 18 |
91304-KSS-B00 |
O-RING (29X2.4) Price: $9.45 |
| 19 |
92900-08032-0E |
BOLT 2, STUD (8X32) Price: $2.38 |
| 20 |
93404-06012-00 |
BOLT-WASHER (6X12) Price: $1.70 |
| 21 |
95701-06022-00 |
BOLT, FLANGE (6X22) Price: $1.88 |
| 22 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
