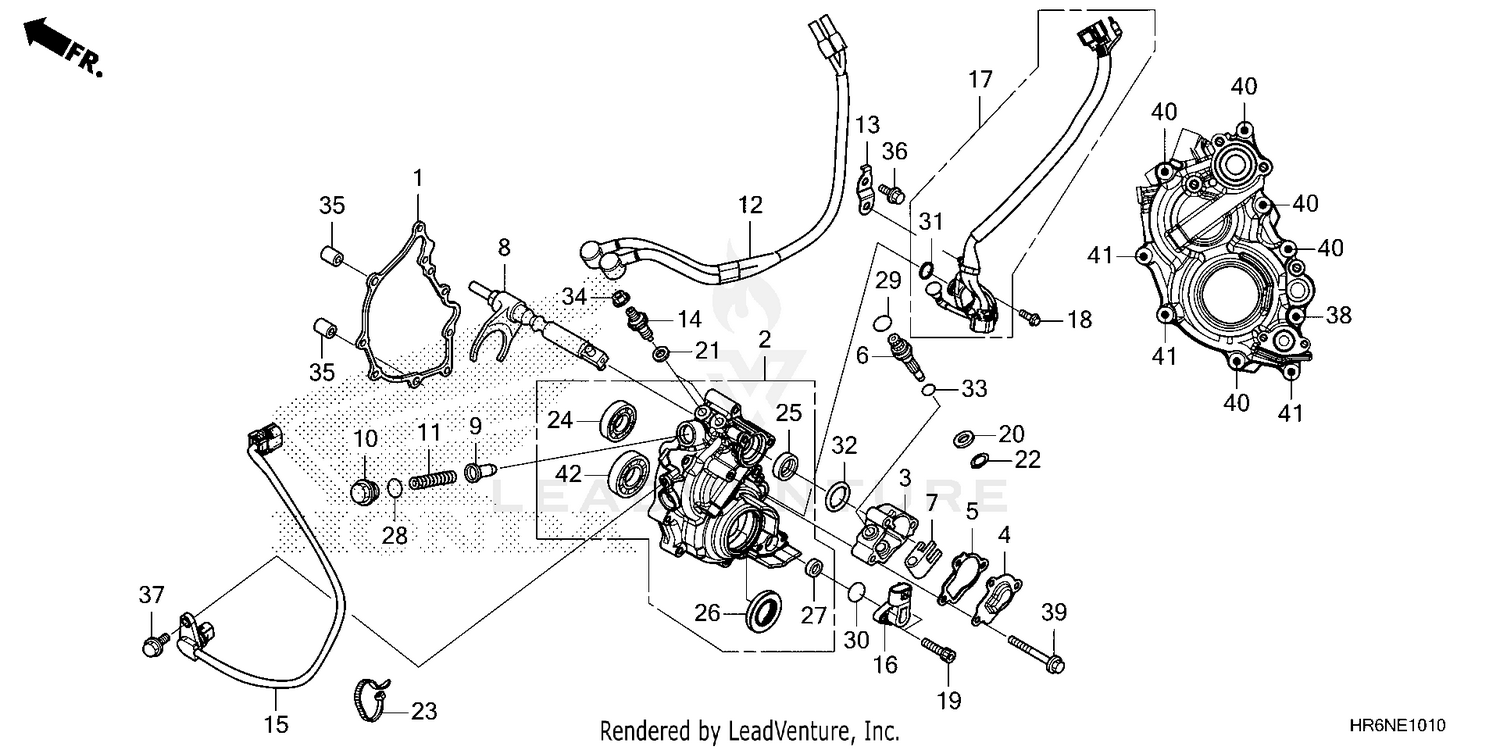

| Ref | Part Number | Description |
|---|
| 1 |
11347-HR6-B00 |
GASKET, SUB-TRANSMISSION COVER Price: $8.15 |
| 2 |
11350-HR6-B00 |
COVER ASSY., SUB-TRANSMISSION Price: $318.13 |
| 3 |
24510-HR6-A60 |
CASE, CHANGE PIVOT Price: $36.85 |
| 4 |
24511-HR6-A60 |
PLATE, CHANGE COVER Price: $8.82 |
| 5 |
24515-HR6-A61 |
GASKET, CHANGE CASE COVER Price: $1.40 |
| 6 |
24521-HR6-A60 |
SHAFT, CHANGE LEVER (NOT AVAILABLE) Price: $54.09 |
| 7 |
24522-HN7-000 |
LEVER, CHANGE PIVOT Price: $41.78 |
| 8 |
24530-HR6-A60 |
SHAFT, CHANGE Price: $176.11 |
| 9 |
24671-HR6-A60 |
PIN, CHANGE STOPPER Price: $12.05 |
| 10 |
24672-HR6-A60 |
BOLT, CHANGE STOPPER Price: $15.02 |
| 11 |
24673-HR6-A60 |
SPRING, CHANGE STOPPER Price: $5.04 |
| 12 |
32101-HR6-B00 |
SUB-HARNESS, ENGINE Price: $75.11 |
| 13 |
32159-HR6-B00 |
STAY, HARNESS CLIP Price: $4.40 |
| 14 |
35600-HR6-B01 |
SWITCH ASSY., NEUTRAL Price: $24.04 |
| 15 |
37700-HR6-MF1 |
SENSOR ASSY., SPEED Price: $160.27 |
| 16 |
38800-HR3-A21 |
SENSOR ASSY., ANGLE Price: $31.84 |
| 17 |
38800-HR6-B01 |
SENSOR ASSY., ANGLE (350DEGREE) Price: $254.62 |
| 18 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 19 |
90116-HP5-600 |
BOLT, SOCKET (5X20) Price: $3.89 |
| 20 |
90505-GJ3-600 |
WASHER B (8MM) Price: $2.45 |
| 21 |
90545-MC0-000 |
WASHER, OIL BOLT (10.2X15X1.4) Price: $4.25 |
| 22 |
90604-HA0-000 |
CIRCLIP (OUTER) (8MM) Price: $2.44 |
| 23 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 24 |
91006-HP7-A01 |
BEARING, RADIAL BALL (6203) Price: $19.05 |
| 25 |
91203-965-003 |
OIL SEAL (15X25X7) This part replaces 91202-107-003. Price: $8.05 |
| 26 |
91204-HR0-F01 |
OIL SEAL (25X45X7) Price: $3.45 |
| 27 |
91254-792-003 |
OIL SEAL (8X16X6) This part replaces 91208-689-005. Price: $3.42 |
| 28 |
91301-GR0-004 |
O-RING (15.2X1.5) Price: $3.09 |
| 29 |
91302-HB3-004 |
O-RING (7.5X1.5) Price: $2.28 |
| 30 |
91308-HN0-A10 |
O-RING, ANGLE SENSOR Price: $3.11 |
| 31 |
91310-HR6-B00 |
O-RING (14.8X1.9) Price: $5.04 |
| 32 |
91316-612-000 |
O-RING (27.5X1.7) Price: $5.52 |
| 33 |
91319-ME5-003 |
O-RING (5.5X1.4) Price: $2.11 |
| 34 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.28 |
| 35 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 36 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 37 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 38 |
95701-06035-00 |
BOLT, FLANGE (6X35) Price: $1.97 |
| 39 |
95701-06040-00 |
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
| 40 |
95701-06050-00 |
BOLT, FLANGE (6X50) (Honda Code 2410975) Price: $2.27 |
| 41 |
95701-06090-00 |
BOLT, FLANGE (6X90) (Honda Code 2533842) Price: $2.31 |
