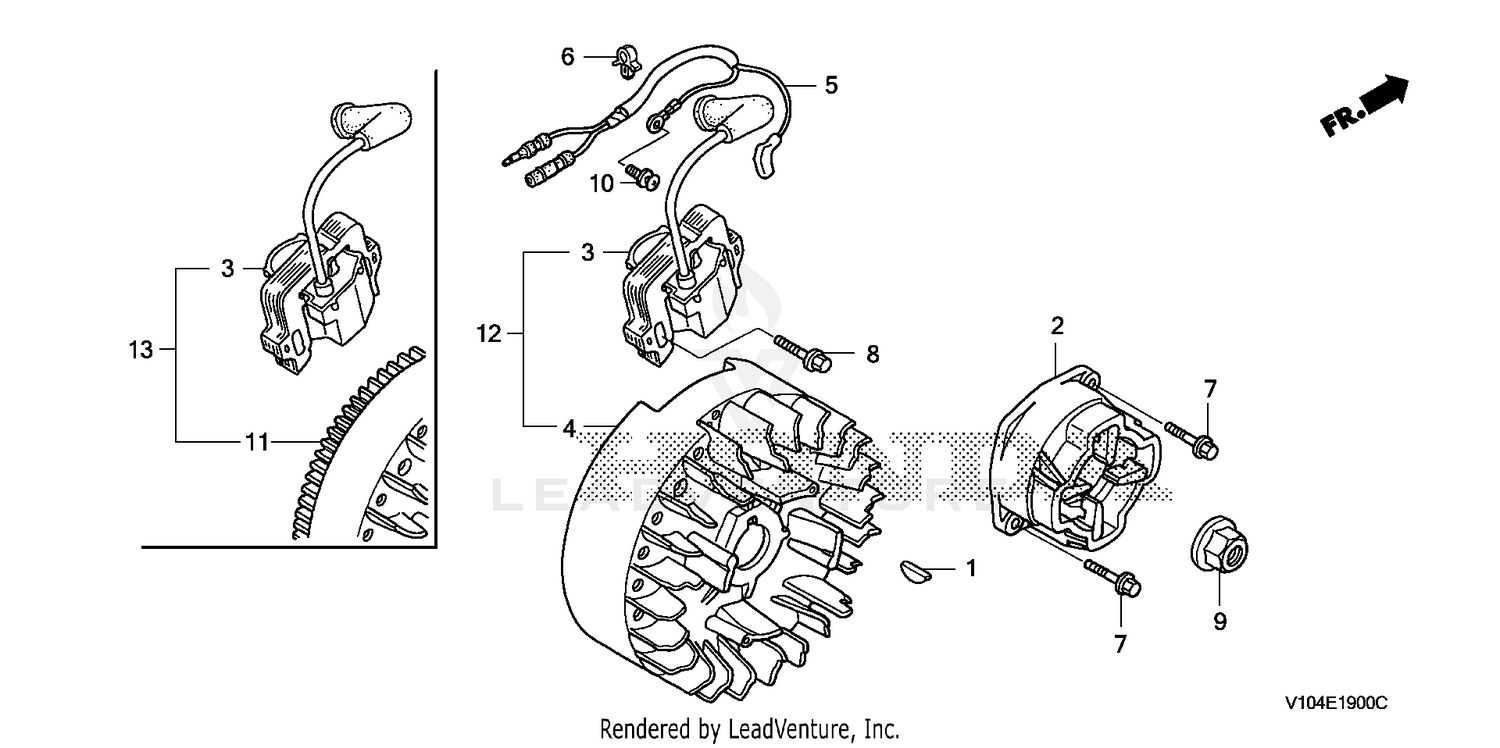

FLYWHEEL@IGNITION COIL (ALUMINUM)
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13331-Z8B-900 | KEY, SPECIAL WOODRUFF (25X18) Price: $6.08 |
| 3 | 30500-Z1A-H12 | COIL ASSY., IGNITION (FENGLONG) Price: $27.72 |
| 5 | 32195-Z1A-H10 | WIRE, STOP SWITCH Price: $4.50 |
| 6 | 46391-VM0-003 | CLIP, BRAKE PIPE (A) (FOR NEUTRAL SWITCH) Price: $3.22 |
| 8 | 90018-ZE1-000 | BOLT, FLANGE (6X23) (Honda Code 1725050). Price: $2.20 |
| 9 | 90213-S3Y-000 | NUT, FLANGE (14MM) Price: $5.88 |
| 10 | 93892-05008-00 | SEE PART DETAILS - PRI; SCREW-WASHER (5X8) Price: $1.26 |
