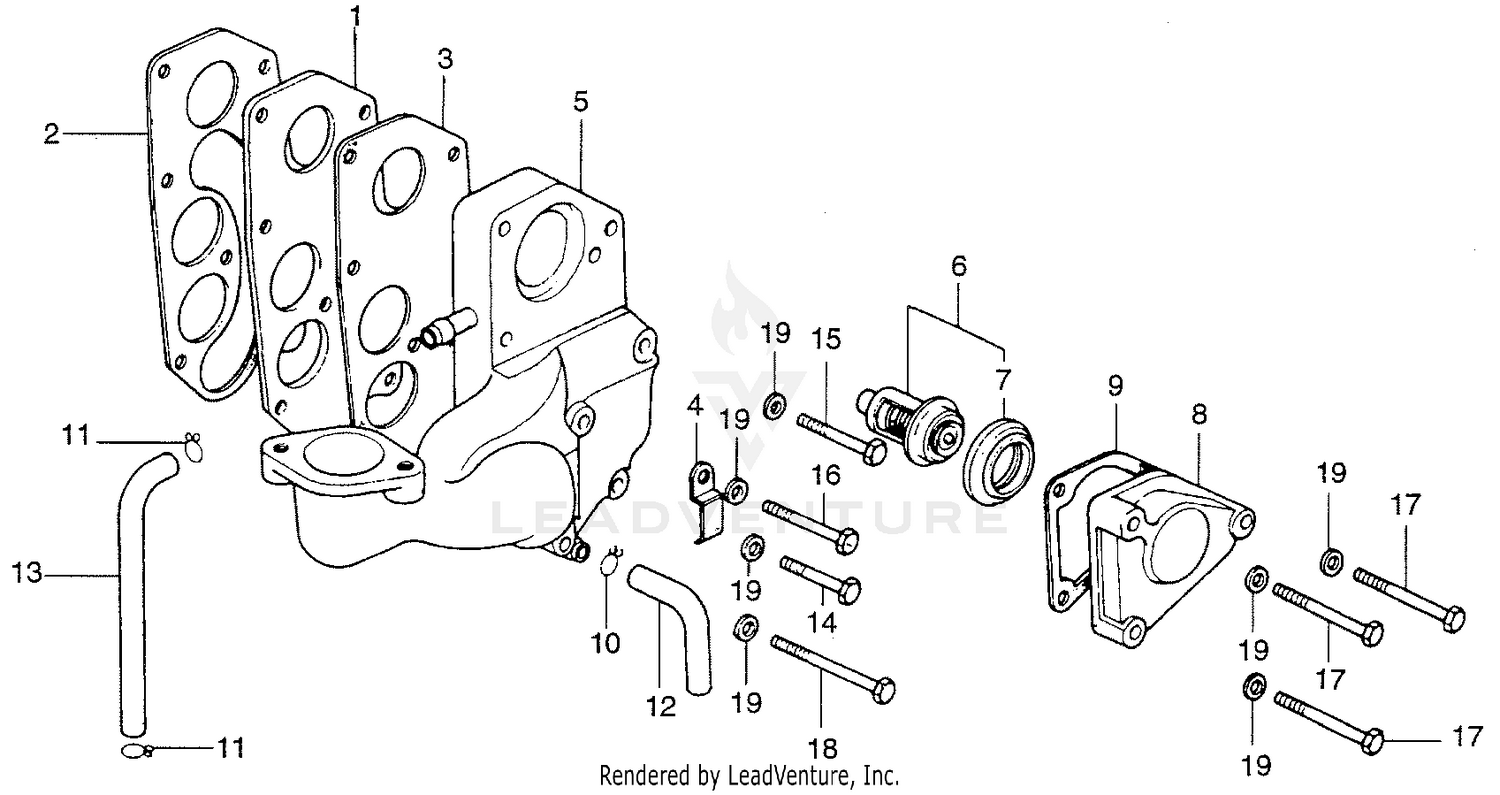

| Ref | Part Number | Description |
|---|
| 1 |
12515-935-000 |
SEE PART DETAILS - PRI; PLATE, EX. CHAMBER Price: Call Us |
| 2 |
12516-921-306 |
SEE PART DETAILS - PRI; GASKET, EX. CHAMBER Price: $17.62 |
| 3 |
12517-921-030 |
SEE PART DETAILS - SUP; GASKET, EX. CHAMBER Price: Call Us |
| 4 |
16731-921-000 |
CLAMP, FUEL TUBE (NOT AVAILABLE) Price: Call Us |
| 5 |
17100-921-030KA |
MANIFOLD, IN. (NOT AVAILABLE) Price: Call Us |
| 6 |
19300-881-741 |
SEE PART DETAILS - PRI; THERMOSTAT ASSY. Price: $61.68 |
| 7 |
19302-921-003 |
RUBBER, THERMOSTAT Price: $10.04 |
| 8 |
19311-921-010KA |
COVER, THERMOSTAT *NH8* (DARK GRAY) (NOT AVAILABLE) Price: $26.82 |
| 9 |
19312-921-000 |
SEE PART DETAILS - SUP; GASKET, THERMOSTAT Price: Call Us |
| 10 |
90602-921-000 |
CLIP, TUBE (B8) Price: $1.90 |
| 11 |
90604-921-000 |
CLIP, TUBE (C11) (NOT AVAILABLE) Price: $1.16 |
| 12 |
90806-921-020 |
TUBE, WATER CHECK (NOT AVAILABLE) Price: Call Us |
| 13 |
90807-921-000 |
TUBE, BYPASS (NOT AVAILABLE) Price: Call Us |
| 14 |
92201-06028-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X28) This part replaces 92000-06028-02. Price: $2.90 |
| 15 |
92101-06032-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X32) This part replaces 92000-06032-0B. Price: $1.02 |
| 16 |
92000-06035-02 |
BOLT, HEX. (6X35) (NOT AVAILABLE) Price: $0.83 |
| 17 |
92201-06045-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X45) Price: $1.27 |
| 18 |
92000-06050-02 |
BOLT, HEX. (6X50) Price: Call Us |
