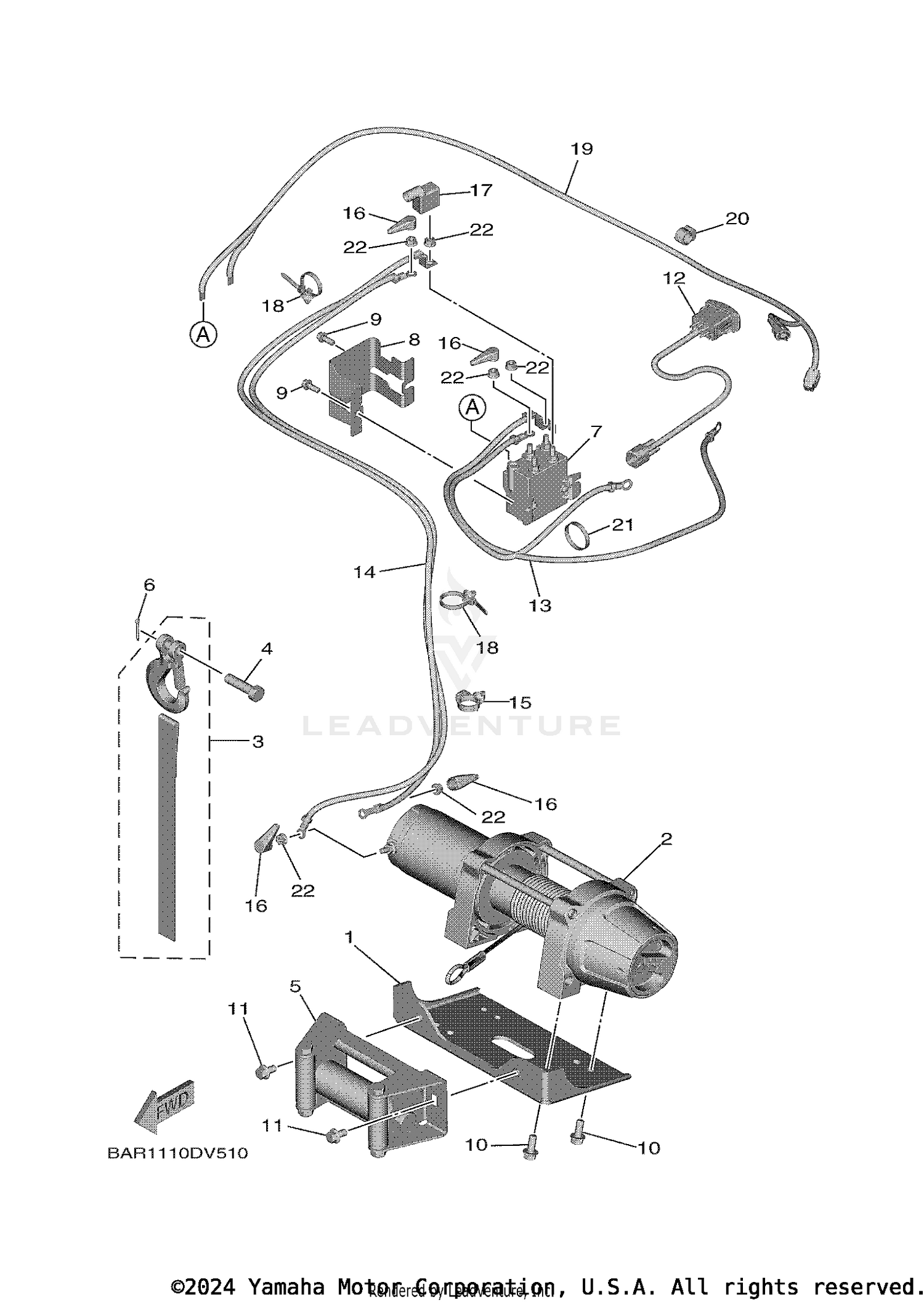

WINCH
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BAR-F7275-02-00 | PLATE Price: $22.99 |
| 2 | BAS-F845V-00-00 | WINCH Price: $653.99 |
| 3 | BAS-F8488-02-00 | HOOK Price: $48.99 |
| 4 | BAS-F818A-00-00 | PIN Price: $2.85 |
| 5 | BAS-F178G-03-00 | ROLLER Price: $103.99 |
| 6 | 91490-30030-00 | PIN, COTTER This part replaces 91402-30020-00. Price: $8.49 |
| 7 | BAS-H232W-00-00 | CONTACTOR Price: $186.99 |
| 8 | BAR-F841V-00-00 | COVER, 7 Price: $8.49 |
| 9 | 90105-06832-00 | BOLT, FLANGE Price: $1.30 |
| 10 | 95D32-08020-00 | BOLT, FLANGE DEEP RE Price: $0.60 |
| 11 | 95812-10016-00 | BOLT, FLANGE Price: $10.49 |
| 12 | BAS-H259E-02-00 | SWITCH ASSY Price: $75.99 |
| 13 | BAR-F633K-02-00 | WIRE, INNER 1 Price: $48.99 |
| 14 | BAR-F633L-03-00 | WIRE, INNER 2 Price: $67.99 |
| 15 | 90464-20010-00 | CLAMP Price: $3.50 |
| 16 | BAS-F3472-00-00 | PROTECTOR Price: $5.99 |
| 17 | 5LP-82119-00-00 | COVER, LEAD WIRE Price: $5.49 |
| 18 | 1NS-F1338-00-00 | CLAMP Price: $3.60 |
| 19 | BAR-H2105-00-00 | WIRE HARNESS Price: $29.99 |
| 20 | 90464-14010-00 | CLAMP Price: $3.65 |
