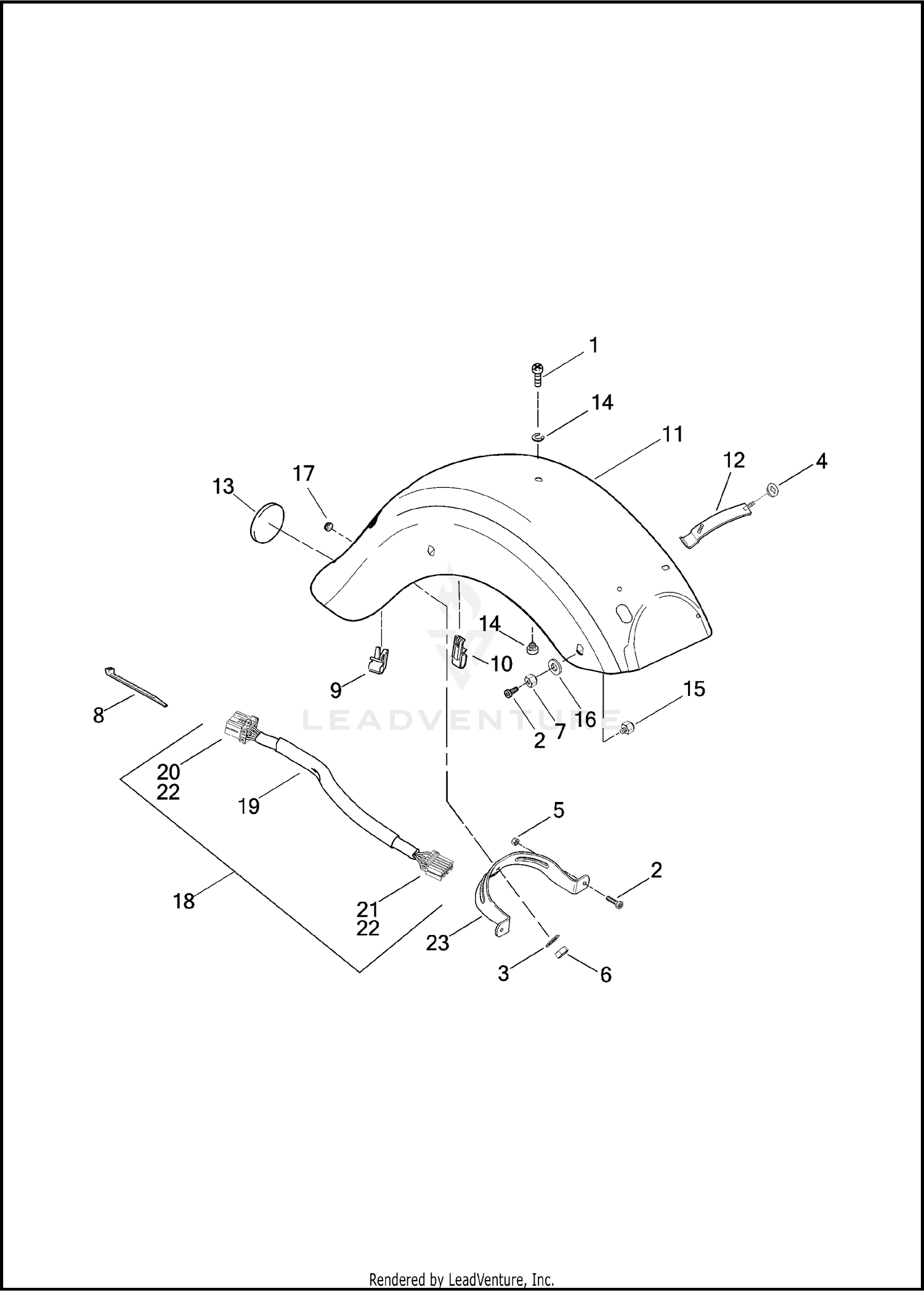

| Ref | Part Number | Description |
|---|
| 1 |
2952A |
SCREW 1/4-20 X 1/2 SEMS TRUSS HD. Price: $2.62 |
| 2 |
3684 |
SCREW 5/16-18 X 1 TORX PAN HD. Price: $0.59 |
| 3 |
6703 |
WASHER 1/4 X 5/8 X 1/16 Price: $0.55 |
| 4 |
7434 |
WASHER 1/4 X 1-29/64 X 1/16 NYLON Price: $1.82 |
| 5 |
7531 |
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE Price: $0.55 |
| 6 |
7686 |
LOCKNUT 1/4-20 X 5/16 X 7/16 Price: $1.38 |
| 7 |
7880 |
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2) Price: $1.22 |
| 8 |
10006 |
CABLE STRAP LIGHTING HARNESS Price: $0.59 |
| 9 |
10183 |
CLIP T-STUD Price: $10.97 |
| 10 |
10184 |
CLIP T-STUD Price: $1.81 |
| 11 |
58702-09A |
FENDER,RR,SUB-ASSY,PRIMED This part replaces 58702-09. Price: $449.74 |
| 11 |
59500032CRP |
FENDER REAR, W/ 48421-04 & 59699-06 (BLACK DIAMOND) Not Available Price: |
| 11 |
59500032DDX |
FENDER REAR, W/ 48421-04 & 59699-06 (DARK SLATE) Price: $1,229.95 |
| 11 |
59500032DLE |
FENDER REAR, W/ 48421-04 & 59699-06 (DIAMOND DUST) Not Available Price: |
| 12 |
59174-99 |
PLATE STUD Price: $5.06 |
| 13 |
59424-10 |
MEDALLION REAR FENDER (DOMESTIC) Price: $62.18 |
| 13 |
59581-05 |
BUMPER REAR FENDER (BLACK) (HDI) Price: $16.55 |
| 14 |
59768-97 |
NUT KIT SEAT, W/ RETENTION WASHER Price: $4.06 |
| 15 |
59786-01 |
BOSS FENDER MOUNTING, INNER Price: $4.46 |
| 16 |
59788-01 |
WASHER Price: $1.49 |
| 17 |
67266-94 |
GROMMET 1/2 IN. I.D. (NYLON) Price: $0.59 |
| 18 |
68772-09A |
HARNESS REAR LAMPS, W/ 10006, 70522-06B, 73156-96BK, 73158-96BK & 73191-96 Price: $32.88 |
| 19 |
70522-06B |
CONDUIT WIRE HARNESS, SELF-ADHESIVE Price: $39.30 |
| 20 |
73156-96BK |
SOCKET HOUSING 6-PLACE Price: $2.09 |
| 21 |
73158-96BK |
SOCKET HOUSING 8-PLACE Price: $2.09 |
| 22 |
73191-96 |
SOCKET TERMINAL #16-20 AWG Price: $0.58 |
