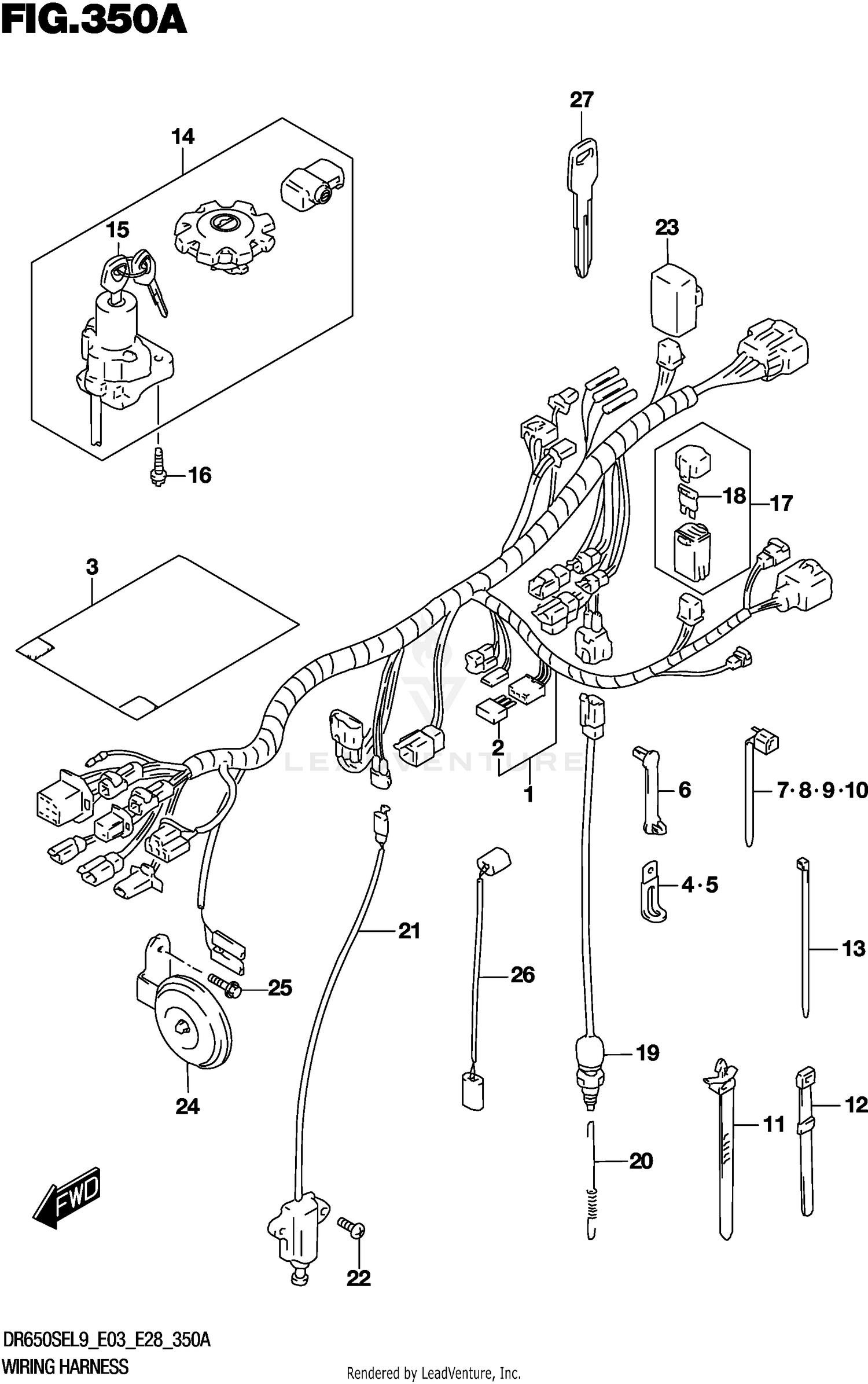

WIRING HARNESS (DR650SEL9 E03)
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-32E30 | HARNESS,WIRING Price: $609.09 |
| 3 | 36618-15D21 | COVER WIRING HARNESS This part replaces 36618-15D20. Price: $20.38 |
| 4 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 5 | 09404-08422 | CLAMP (L:80) This part replaces 09404-08419. Price: $2.79 |
| 6 | 09407-03401 | CLAMP (L:33) Price: $3.79 |
| 7 | 09407-11401 | CLAMP (L:95) Price: $2.77 |
| 8 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 9 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 10 | 09407-25401 | CLAMP (L:235) Price: $5.68 |
| 11 | 09407-11402 | CLAMP (L:90) Price: $2.20 |
| 12 | 09407-12402 | CLAMP (L:120) Price: $3.70 |
| 13 | 09407-10404 | CLAMP (L:100) Price: $3.06 |
| 14 | 37000-04814 | LOCK SET This part replaces 37000-04811. Price: $424.91 |
| 16 | 09139-08016 | BOLT (8X20) Price: $4.10 |
| 17 | 36740-32E00 | BOX ASSY,FUSE Price: $29.92 |
| 19 | 37740-32E00 | SWITCH ASSY,STOP LAMP Price: $37.06 |
| 20 | 09443-06016 | SPRING Price: $3.47 |
| 21 | 37840-44X52 | SWITCH ASSY,SID This part replaces 37840-44X50. Price: $72.43 |
| 22 | 02112-0616B | SCREW Price: $2.29 |
| 23 | 38740-24X50 | RELAY ASSY Price: $55.84 |
| 24 | 38500-32E00 | HORN ASSY Price: $91.26 |
| 25 | 01550-0612A | BOLT Price: $2.37 |
| 26 | 36851-32E00 | WIRE,THROTTLE SENSOR Price: $5.59 |
