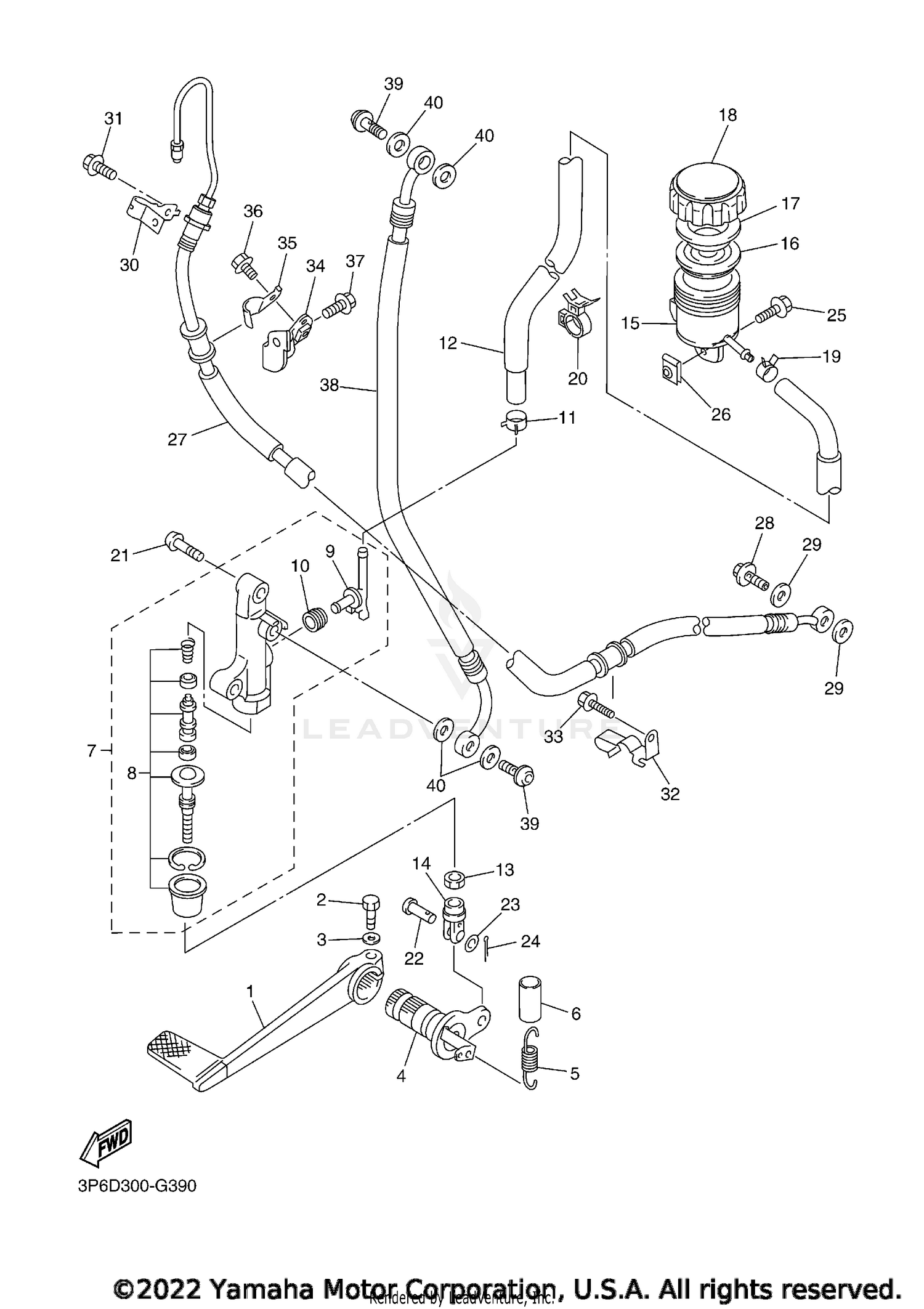

| Ref | Part Number | Description |
|---|
| 1 |
5JW-27211-00-00 |
PEDAL, BRAKE Price: $156.99 |
| 2 |
90109-06468-00 |
BOLT Price: $8.49 |
| 3 |
92990-06600-00 |
WASHER, PLAIN (646) Price: $2.85 |
| 4 |
1MC-27212-00-00 |
SHAFT, BRAKE PEDAL Price: $69.99 |
| 5 |
90506-20030-00 |
SPRING, TENSION Price: $8.49 |
| 6 |
90446-15386-00 |
HOSE Price: $8.49 |
| 7 |
3P6-2583V-01-00 |
RR. MASTER CYLINDER ASSY. This part replaces 3P6-2583V-00-00. Price: $221.99 |
| 8 |
3P6-W0042-00-00 |
CYLINDER KIT, MASTER Price: $73.99 |
| 9 |
5VS-2582A-01-00 |
JOINT This part replaces 5VS-2582A-00-00. Price: $3.65 |
| 10 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 11 |
90467-090A0-00 |
CLIP Price: $8.49 |
| 12 |
3P6-25895-00-00 |
HOSE, RESERVOIR Price: $53.99 |
| 13 |
90170-08010-00 |
NUT Price: $9.49 |
| 14 |
5SL-27222-00-00 |
JOINT Price: $46.99 |
| 15 |
3P6-25894-00-00 |
TANK, RESERVOIR Price: $14.49 |
| 16 |
5VY-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $35.99 |
| 17 |
5VY-25855-00-00 |
BUSH, DIAPHRAGM Price: $5.99 |
| 18 |
5VY-25852-00-00 |
CAP, RESERVOIR Price: $19.99 |
| 19 |
90467-090A0-00 |
CLIP Price: $8.49 |
| 20 |
90464-15192-00 |
CLAMP Price: $9.49 |
| 21 |
92012-08030-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 22 |
91701-06018-00 |
PIN, CLEVIS Price: $5.49 |
| 23 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 24 |
91490-16020-00 |
PIN, COTTER This part replaces 91401-16012-00. Price: $6.70 |
| 25 |
90109-05007-00 |
BOLT Price: $0.55 |
| 26 |
90183-050A6-00 |
NUT, SPRING Price: $2.95 |
| 27 |
3P6-2581K-20-00 |
HOSE, BRAKE 5 Price: $172.99 |
| 28 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 29 |
90430-10005-00 |
GASKET Price: $9.49 |
| 30 |
3P6-2588G-00-00 |
HOLDER, BRAKE HOSE 6 Price: $5.49 |
| 31 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 32 |
3P6-25876-10-00 |
HOLDER, BRAKE HOSE 2 Price: $17.99 |
| 33 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 34 |
2PD-2588F-00-00 |
HOLDER, BRAKE HOSE 5 Price: $19.49 |
| 35 |
5VS-2588G-00-00 |
HOLDER, BRAKE HOSE 6 Price: $8.99 |
| 36 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 37 |
95817-08012-00 |
BOLT, FLANGE This part replaces 95802-08012-00. Price: $5.49 |
| 38 |
3P6-2581J-20-00 |
HOSE, BRAKE 4 Price: $49.99 |
| 39 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
