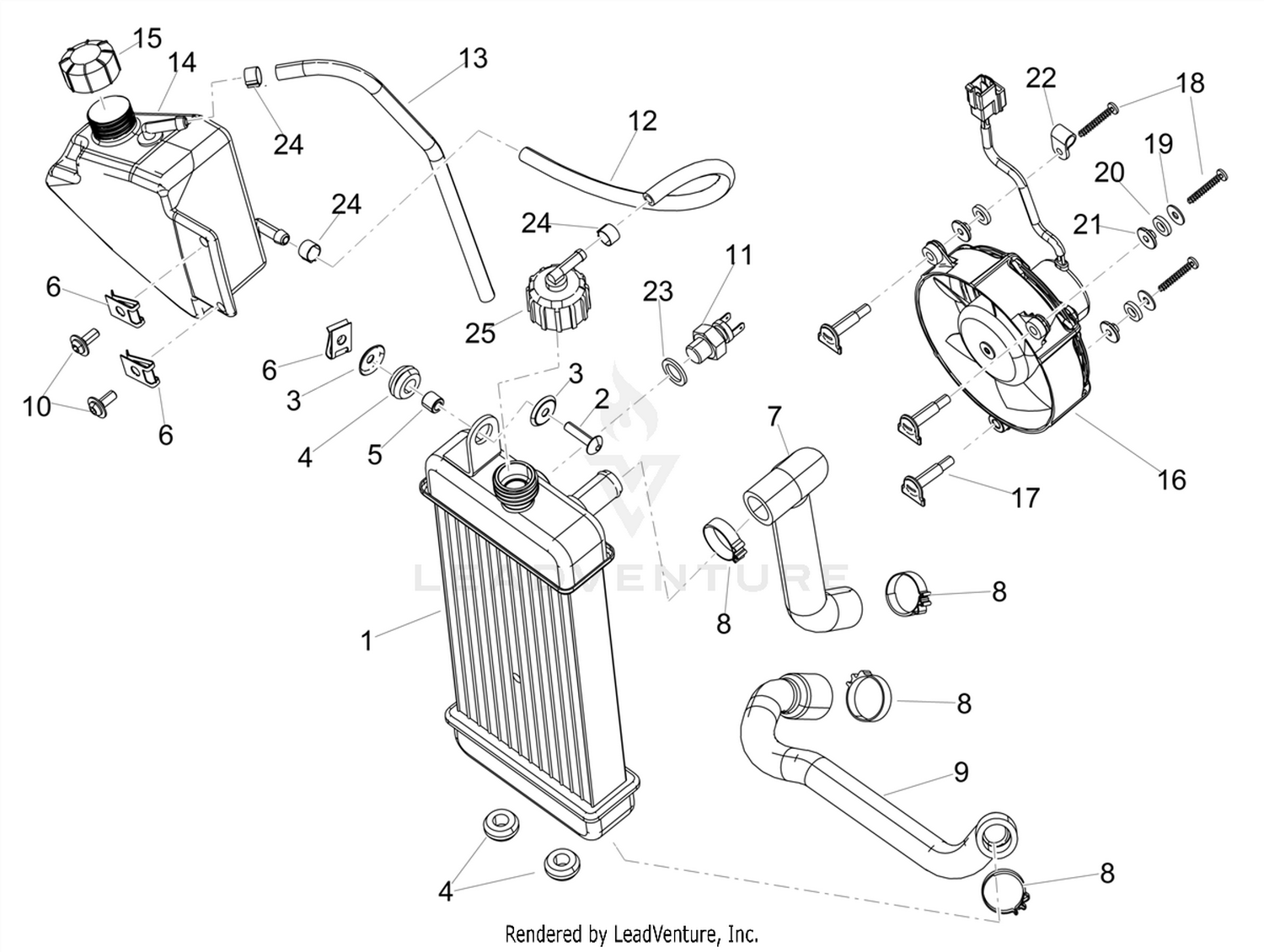

Cooling system
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2R000399 | Radiator, assy Price: Call Us |
| 3 | 00D01500552 | Cup Price: $1.70 |
| 4 | 00008915020 | Grommet Price: $0.49 |
| 5 | 00D01500471 | Ring nut Price: Call Us |
| 6 | 254485 | Spring plate Price: $0.25 |
| 7 | 865994 | Radiator head pipe Price: $8.19 |
| 8 | 00008204500 | Clip Price: $2.70 |
| 9 | 865995 | Cooler-pump pipe Price: $11.51 |
| 11 | 584715 | Temperature gauge Price: $9.35 |
| 12 | 00N03800521 | Exp.tnk-rad. Hose Price: $1.79 |
| 13 | 863277 | Fuel tube Price: $1.52 |
| 14 | 2B004307 | Expansion tank Price: $23.38 |
| 15 | 861158 | Expansion tank plug Price: $3.00 |
| 16 | 2R000524 | Cooling fan Price: $193.41 |
| 17 | AP8161118 | Pin Price: $4.18 |
| 18 | 866299 | Self-tapping screw Price: $0.15 |
| 19 | AP8150248 | Washer Price: $0.12 |
| 20 | 00003515370 | Washer Price: $2.70 |
| 21 | 866615 | T bushing Price: $1.93 |
| 22 | AP8101890 | Black hose Price: $2.70 |
| 23 | 864808 | Washer Price: Call Us |
| 24 | 00H03804091 | Clip Price: $0.66 |
