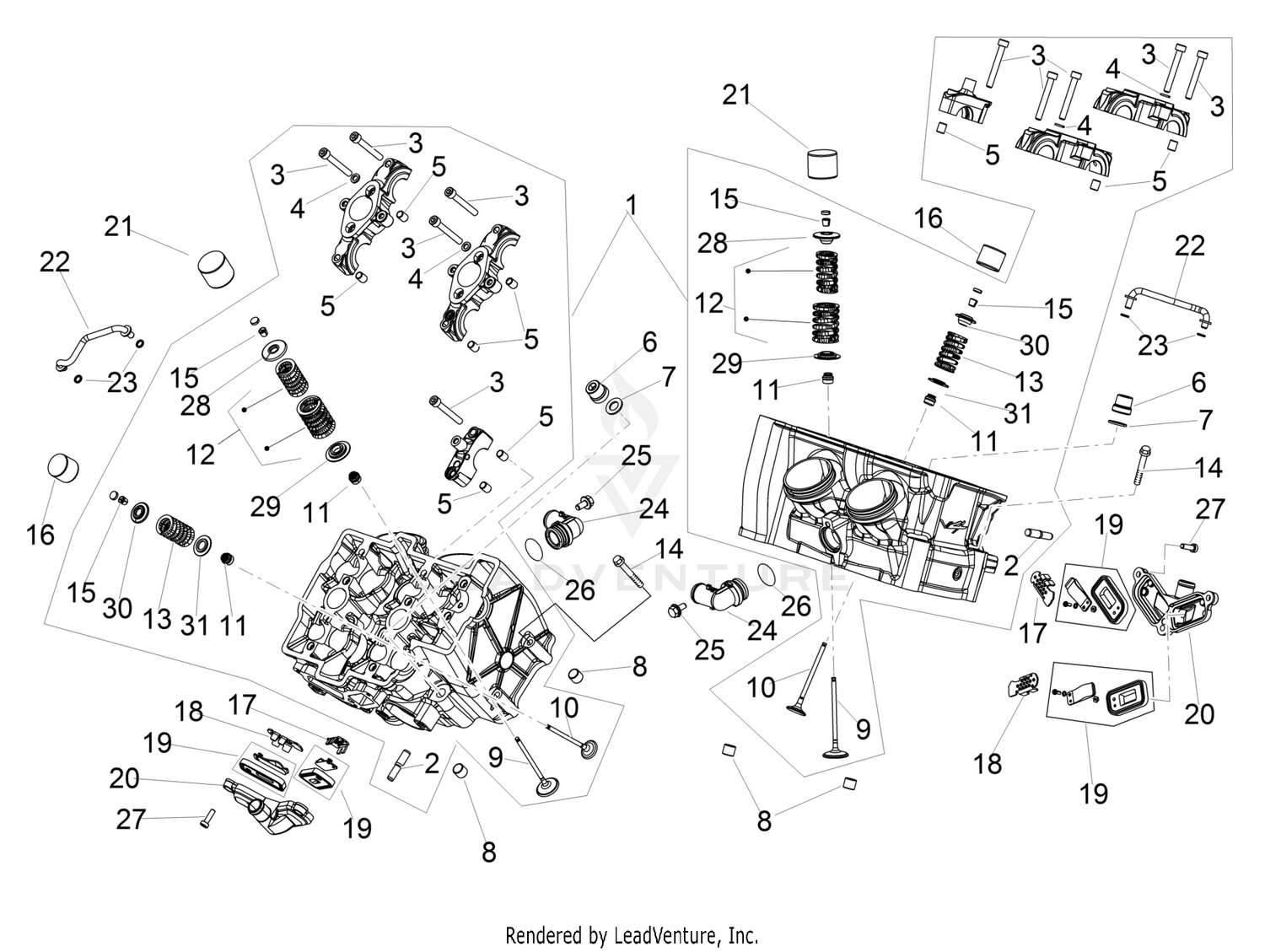

| Ref | Part Number | Description |
|---|
| 1 |
1A0131435 |
Cylinder head assembly Price: $2,522.92 |
| 2 |
857035 |
Stud bolt Price: $2.70 |
| 3 |
857085 |
Hex socket screw Price: $2.70 |
| 4 |
857042 |
Copper washer Price: $2.70 |
| 5 |
411209 |
Locating dowel Price: $3.98 |
| 6 |
897434 |
Flanged nut Price: $9.15 |
| 7 |
857208 |
Washer Price: $2.70 |
| 8 |
825597 |
Calibrated dowel Price: $0.68 |
| 9 |
2A000178 |
Valve, in Price: $195.82 |
| 10 |
2A000236 |
Exaust valve Price: $205.61 |
| 11 |
436438 |
Valve gasket ring Price: $0.98 |
| 12 |
1A008432 |
Intake spring kit Price: $45.54 |
| 13 |
1A008435 |
Exhaust valve spring Price: $6.97 |
| 14 |
478895 |
Screw w/ flange Price: $0.37 |
| 15 |
857024 |
Valve half-cone Price: $2.18 |
| 16 |
855632 |
Valve lifter bucket Price: $37.06 |
| 17 |
857046 |
Spark arrester Price: $3.57 |
| 18 |
857047 |
Spark arrester Price: $2.02 |
| 19 |
857045 |
Reed valve Price: $13.97 |
| 20 |
857044 |
Cover Price: $21.52 |
| 21 |
2A000337 |
Suction valve bucket tappet Price: $54.99 |
| 22 |
857017 |
Oil sprayer pipe Price: $19.13 |
| 23 |
873097 |
O-ring Price: $1.10 |
| 24 |
857016 |
Angular union Price: $6.12 |
| 25 |
1A003153 |
Flanged hexagon screw Price: $2.70 |
| 26 |
857083 |
O-ring Price: $3.57 |
| 28 |
2A000872 |
Intake upper valve flange Price: $11.34 |
| 29 |
2A000613 |
Intake lower valve flange Price: $4.67 |
| 30 |
2A000796 |
Discharge upper valve flange Price: $9.15 |
