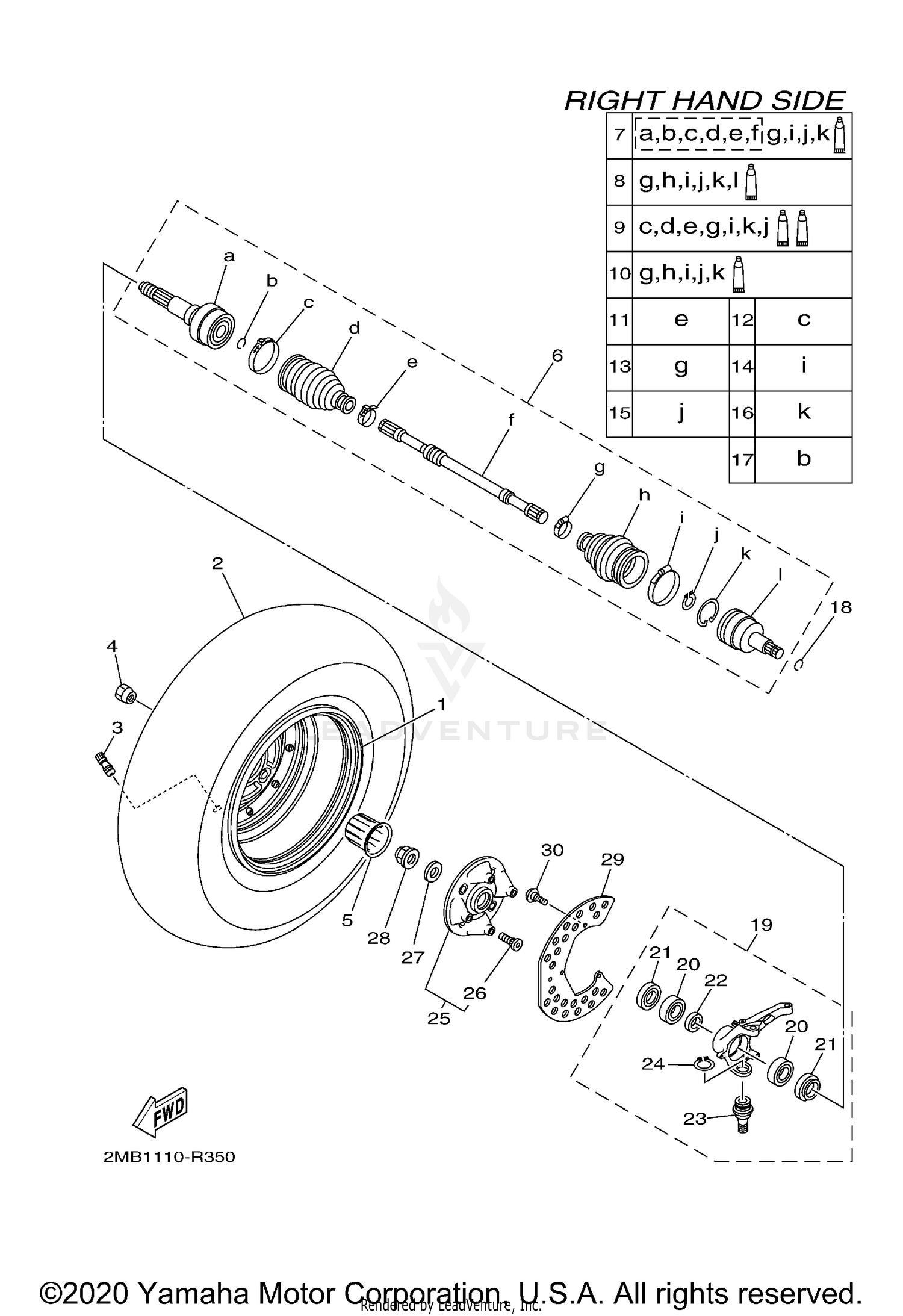

FRONT WHEEL 2
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1XD-F5180-00-00 | WHEEL COMP. Price: $152.99 |
| 4 | 90179-12262-00 | NUT Price: $2.90 |
| 5 | 2MB-F512A-00-00 | CAP, WHEEL Price: $2.85 |
| 6 | 1XD-F518F-01-00 | DRIVE SHAFT ASSY This part replaces 1XD-F518F-00-00. Price: $254.99 |
| 7 | 1XD-F530T-10-00 | BALL JOINT SET Price: $258.99 |
| 8 | 1XD-F530V-10-00 | DOUBLE OFF SET JOINT Price: $150.99 |
| 9 | 1XD-F530X-10-00 | BOOT SET (BALL JOINT) Price: $177.99 |
| 10 | 1XD-F530Y-10-00 | BOOT SET(DOUBLE OFFSET JOINT Price: $164.99 |
| 11 | 1XD-F511H-00-00 | BOOT BAND(DOUBLE OFFSET JOIN Price: $18.49 |
| 12 | 1XD-F511G-00-00 | BOOT BAND (BALL JOINT) Price: $26.99 |
| 13 | 5UG-F510U-00-00 | BOOT BAND (SMALL) Price: $14.49 |
| 14 | 1XD-F512G-10-00 | BOOT BAND (SMALL) Price: $17.99 |
| 15 | 3B4-2512J-00-00 | SNAP RING Price: $9.49 |
| 16 | 3B4-25182-00-00 | CIRCLIP Price: $7.49 |
| 17 | 5UG-F512H-00-00 | CIRCLIP Price: $9.49 |
| 18 | 93450-22119-00 | CIRCLIP Price: $9.49 |
| 19 | 1XD-F3502-00-00 | STEERING KNUCKLE ASSY (RIGHT) Price: $260.99 |
| 20 | 93306-20725-00 | BEARING Price: $42.99 |
| 21 | 93106-50002-00 | OIL SEAL Price: $17.49 |
| 22 | 90387-35007-00 | COLLAR Price: $16.49 |
| 23 | 1XD-23579-00-00 | BALL JOINT 2 Price: $83.99 |
| 24 | 93410-32075-00 | CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 25 | 2MB-F510D-04-00 | HUB ASSY 2 This part replaces 2MB-F510D-02-00. Price: $100.99 |
| 26 | 90114-12005-00 | BOLT, SERRATION Price: $3.20 |
| 27 | 90201-25023-00 | WASHER, PLATE Price: $11.49 |
| 28 | 90179-24006-00 | NUT Price: $15.49 |
| 29 | 1XD-F514A-01-00 | RING, WHEEL 1 Price: $8.49 |
