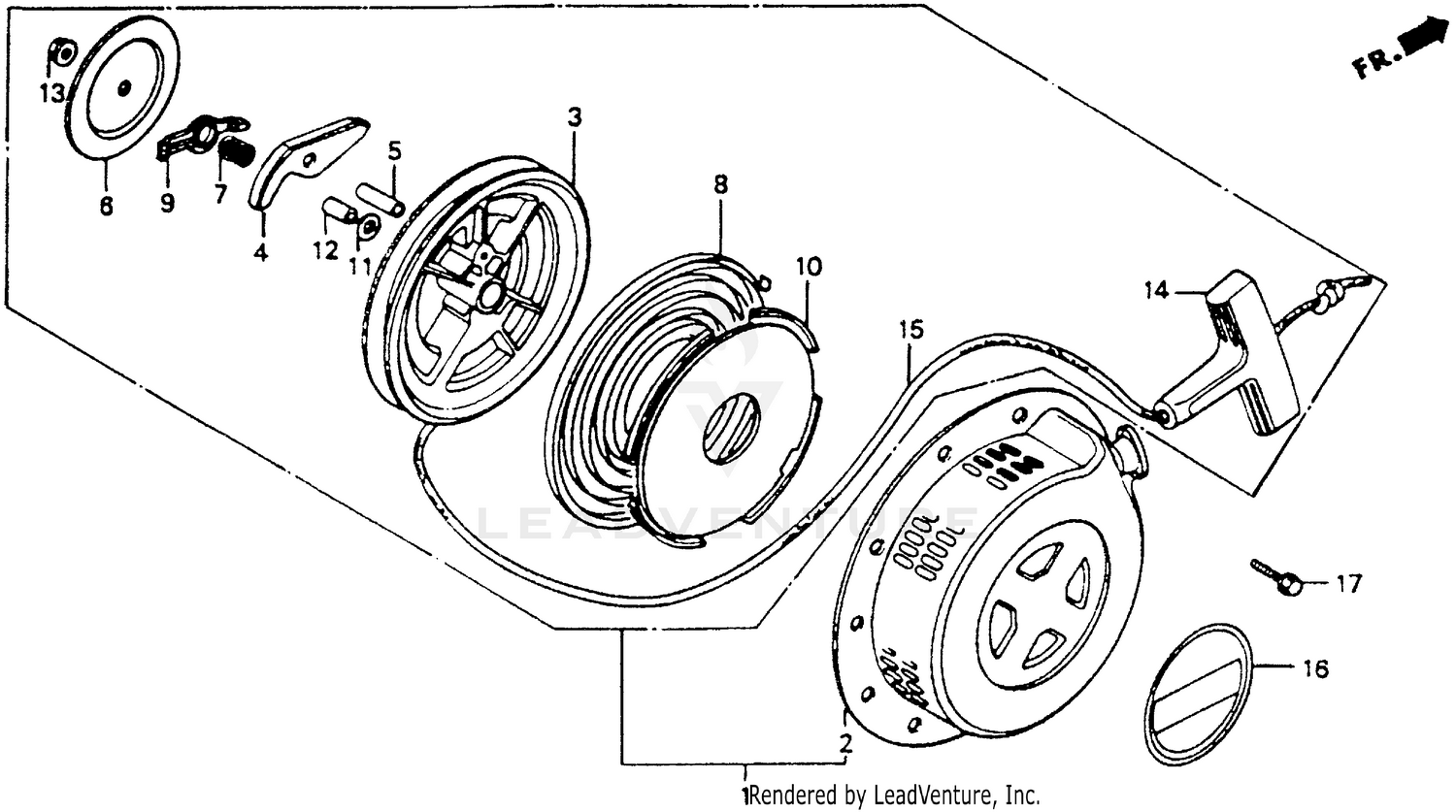

| Ref | Part Number | Description |
|---|
| 1 |
28400-ZE1-003ZF |
SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED) Price: $95.65 |
| 2 |
28410-ZE1-003ZF |
CASE, RECOIL STARTER *R280* (POWER RED) This part replaces 28410-ZE1-003ZA. Price: $84.30 |
| 3 |
28420-ZE1-003 |
PULLEY, RECOIL STARTER (Honda Code 1428598). Price: $44.12 |
| 4 |
28422-ZE1-003 |
RATCHET, STARTER (Honda Code 1428606). Price: $6.02 |
| 5 |
28423-ZE1-003 |
PIN, STARTER RATCHET (Honda Code 1428614). Price: $9.14 |
| 6 |
28431-ZE1-003 |
PLATE, FRICTION (Honda Code 1428622). Price: $6.70 |
| 7 |
28441-ZE1-003 |
SPRING, FRICTION (Honda Code 1428630). Price: $6.42 |
| 8 |
28442-ZE1-003 |
SPRING, RECOIL STARTER (Honda Code 1428648). Price: $22.12 |
| 9 |
28443-ZE1-003 |
GUIDE, RATCHET (Honda Code 1428655). Price: $14.98 |
| 10 |
28445-ZE1-003 |
CASE, RECOIL STARTER SPRING (Honda Code 1428663). Price: $16.14 |
| 11 |
28446-ZE1-003 |
WASHER, STARTER (Honda Code 1428671). Price: $5.30 |
| 12 |
28447-ZE1-003 |
SHAFT, SUB (Honda Code 1428689). Price: $6.16 |
| 13 |
28448-ZE1-003 |
NUT (Honda Code 1428697). Price: $3.64 |
| 14 |
28461-ZE1-013 |
SEE PART DETAILS - PRI; KNOB, RECOIL STARTER Price: $8.34 |
| 15 |
28462-ZE1-003 |
SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X59") (NA USE ALT:08550-ZG921-11) (Honda Code 1428754). Price: $9.10 |
| 16 |
87521-ZE1-810 |
EMBLEM (EXTERNAL) (Honda Code 1441419). Price: $8.10 |
