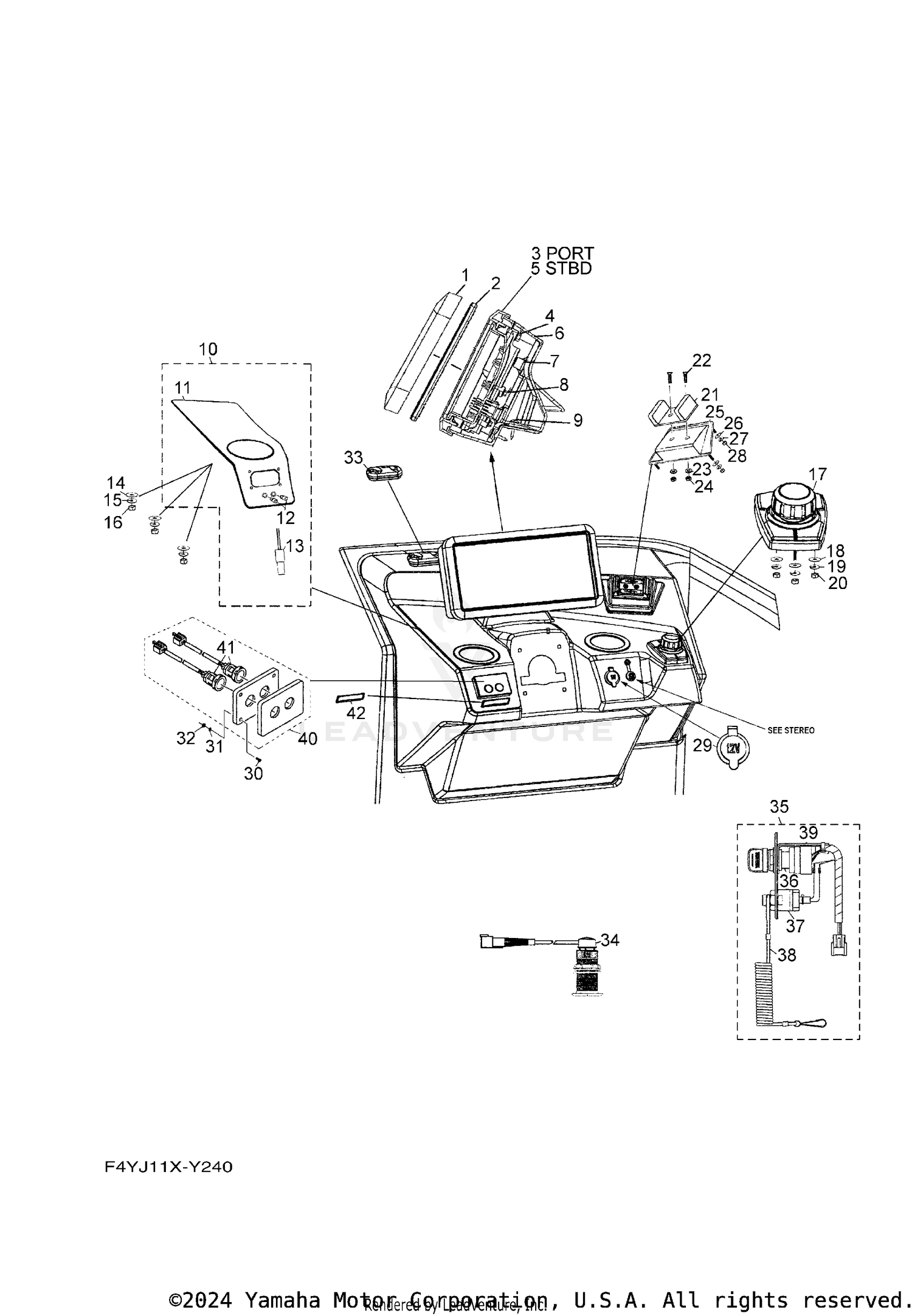

| Ref | Part Number | Description |
|---|
| 1 |
F6D-U15A1-00-00 |
BEZEL ASSY. Price: $44.99 |
| 2 |
F4Y-U8K12-22-00 |
DISPLAY UNIT Price: $3,830.99 |
| 3 |
F6D-U591F-00-00 |
BRACKET, CASE Price: $18.99 |
| 4 |
F6D-U8K1R-00-00 |
BRACKET, DISPLAY UNIT Price: $39.99 |
| 5 |
F6D-U591F-10-00 |
BRACKET, CASE Price: $13.99 |
| 6 |
90160-12S16-00 |
SCREW, ROUND TAPPING Price: $5.99 |
| 7 |
90105-03S16-00 |
BOLT, FLANGE Price: $1.99 |
| 8 |
95880-06020-00 |
BOLT, FLANGE Price: $5.49 |
| 9 |
95D95-06025-00 |
BOLT, FLANGE DEEP This part replaces 95880-06025-00. Price: $0.95 |
| 10 |
F4Y-U885D-30-00 |
PANEL, SIDE LH Price: $506.35 |
| 11 |
F4Y-U82B6-20-00 |
PANEL, SIDE 1 Price: $820.99 |
| 12 |
F4X-U2336-01-00 |
SWITCH,FLAP Price: $110.99 |
| 13 |
F4Y-U827F-40-00 |
WIRE HARNESS 4 Price: Call Us |
| 14 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 15 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 16 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 17 |
F4Y-U8313-00-00 |
START BUTTON COMP. Price: $512.99 |
| 18 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 19 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 20 |
95680-06100-00 |
NUT, U Price: $8.70 |
| 21 |
F4C-U827C-00-00 |
HOLDER Price: $176.99 |
| 22 |
90151-14S12-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 23 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 24 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 25 |
F4X-U2757-00-00 |
HOLDER Price: $186.99 |
| 26 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 27 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 28 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 29 |
F5V-U8284-00-00 |
RECEPTACLE, ACCESSOR Price: $66.99 |
| 30 |
90157-08S16-00 |
SCREW, PAN HEAD Price: $3.99 |
| 31 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 32 |
90185-08S00-00 |
NUT, SELF-LOCKING Price: $6.99 |
| 33 |
F4Y-U8K1L-01-00 |
ANTENA, GPS Price: $549.99 |
| 34 |
F2D-U8K1W-01-00 |
TRANSDUCER Price: $544.99 |
| 35 |
F3F-82570-00-00 |
PANEL SWITCH ASSY Price: $358.99 |
| 36 |
F3F-82510-00-00 |
MAIN SWITCH ASSY Price: $127.99 |
| 37 |
688-82575-02-00 |
ENGINE STOP SWITCH ASSY Price: $37.55 |
| 38 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
| 39 |
64D-82581-00-00 |
STAY, CORD CLAMP Price: $25.00 |
| 40 |
F3F-82570-10-00 |
PANEL SWITCH ASSY Price: $376.49 |
| 41 |
F3F-8259E-00-00 |
SWITCH ASSY Price: $62.99 |
