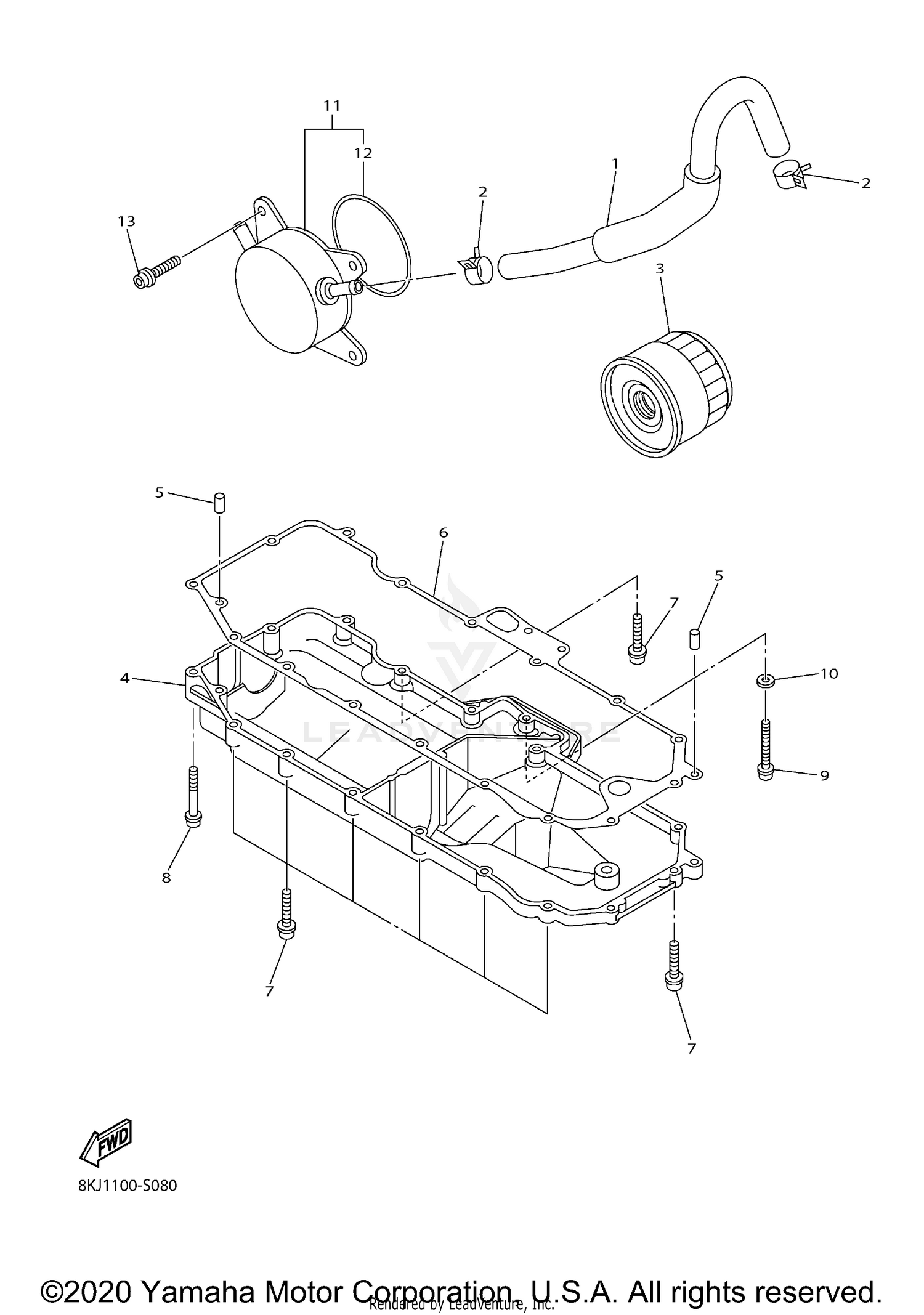

OIL CLEANER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8ES-12588-00-00 | HOSE 5 Price: $26.99 |
| 2 | 90450-18M09-00 | HOSE CLAMP ASSY This part replaces 90450-19001-00. Price: $11.49 |
| 3 | 5DM-13440-00-00 | ELEMENT ASSY, OIL CLEANER Price: $22.99 |
| 4 | 2HC-13417-00-00 | COVER, STRAINER Price: $172.99 |
| 5 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 6 | 2HC-13414-00-00 | GASKET, STRAINER COVER Price: $23.99 |
| 7 | 91317-06025-00 | BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 8 | 91317-06035-00 | BOLT, HEX. SOCKET HEAD Price: $3.80 |
| 9 | 90109-06031-00 | BOLT Price: $2.85 |
| 10 | 90430-06166-00 | GASKET This part replaces 90430-06192-00. Price: $4.05 |
| 11 | 8ES-13470-01-00 | OIL COOLER ASSY Price: $578.99 |
| 12 | 5JW-13473-00-00 | O-RING Price: $46.99 |
