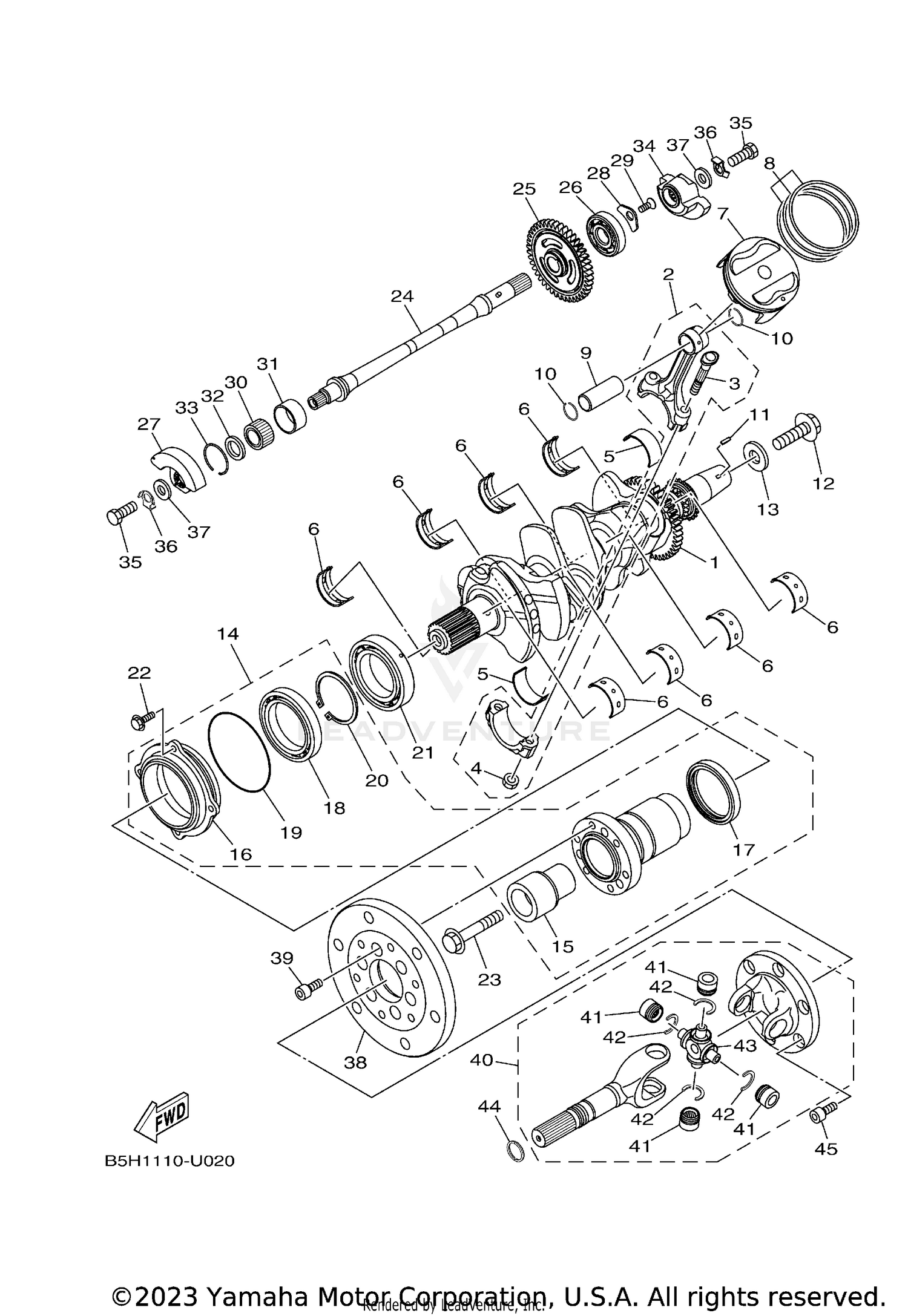

| Ref | Part Number | Description |
|---|
| 1 |
2HC-11400-00-00 |
CRANKSHAFT ASSY Price: $712.99 |
| 2 |
B0F-11650-00-00 |
CONNECTING ROD ASSY Price: $160.99 |
| 3 |
5JW-11654-00-00 |
BOLT, CONNECTING ROD Price: $5.99 |
| 4 |
90179-08327-00 |
NUT Price: $10.49 |
| 7 |
2HC-11631-00-00 |
PISTON (STD) Price: $114.99 |
| 8 |
2HC-11603-01-00 |
PISTON RING SET (STD) This part replaces 2HC-11603-00-00. Price: $18.99 |
| 9 |
2HC-11633-00-00 |
PIN, PISTON Price: $25.99 |
| 10 |
93450-19095-00 |
CIRCLIP Price: $2.90 |
| 11 |
90280-03017-00 |
KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
| 12 |
90105-12032-00 |
BOLT, FLANGE Price: $41.99 |
| 13 |
90201-12191-00 |
WASHER, PLATE This part replaces 90201-121H0-00. Price: $8.49 |
| 14 |
2HC-11406-00-00 |
SHAFT ASSY Price: $535.99 |
| 15 |
2HC-11478-00-00 |
COLLAR Price: $70.99 |
| 16 |
2HC-16775-00-00 |
HOUSING, BEARING Price: $102.99 |
| 17 |
93105-57007-00 |
OIL SEAL Price: $34.99 |
| 18 |
93306-91102-00 |
BEARING Price: $79.99 |
| 19 |
93210-84724-00 |
O-RING Price: $11.49 |
| 20 |
99009-55400-00 |
CIRCLIP Price: $6.49 |
| 21 |
93306-01005-00 |
BEARING Price: $86.99 |
| 22 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 23 |
90105-12099-00 |
BOLT, FLANGE Price: $11.49 |
| 24 |
2HC-11407-00-00 |
SHAFT ASSY., 2 Price: $302.99 |
| 25 |
2HC-11530-00-00 |
BALANCER WEIGHT GEAR COMP. Price: $249.99 |
| 26 |
93306-30323-00 |
BEARING Price: $48.99 |
| 27 |
8ES-11454-00-00 |
WEIGHT 1 Price: $93.99 |
| 28 |
4JT-15381-01-00 |
PLATE, BEARING COVER Price: $14.49 |
| 29 |
90151-06023-00 |
SCREW, COUNTERSUNK This part replaces 90151-06024-00. Price: $9.49 |
| 30 |
93310-42239-00 |
BEARING Price: $78.99 |
| 31 |
8ES-11428-01-00 |
BEARING 1 Price: $52.99 |
| 32 |
8ES-11478-00-00 |
COLLAR Price: $15.49 |
| 33 |
93450-32152-00 |
CIRCLIP Price: $9.49 |
| 34 |
2HC-11464-00-00 |
WEIGHT 2 Price: $91.99 |
| 35 |
97017-10025-00 |
BOLT This part replaces 97012-10025-00. Price: $9.49 |
| 36 |
90215-10003-00 |
WASHER, LOCK Price: $10.49 |
| 37 |
90201-10774-00 |
WASHER, PLATE This part replaces 90201-10591-00. Price: $10.49 |
| 38 |
2HC-11571-00-00 |
FLYWHEEL Price: $331.99 |
| 39 |
91314-08020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91312-08020-00. Price: $9.49 |
| 40 |
2HC-43804-00-00 |
YOKE ASSY Price: $495.99 |
| 41 |
93399-99948-00 |
BEARING Price: $60.99 |
| 42 |
93440-20088-00 |
CIRCLIP, OUTER Price: $9.49 |
| 43 |
2HC-46187-00-00 |
SPIDER Price: $77.99 |
| 44 |
93210-192A6-00 |
O-RING Price: $6.49 |
