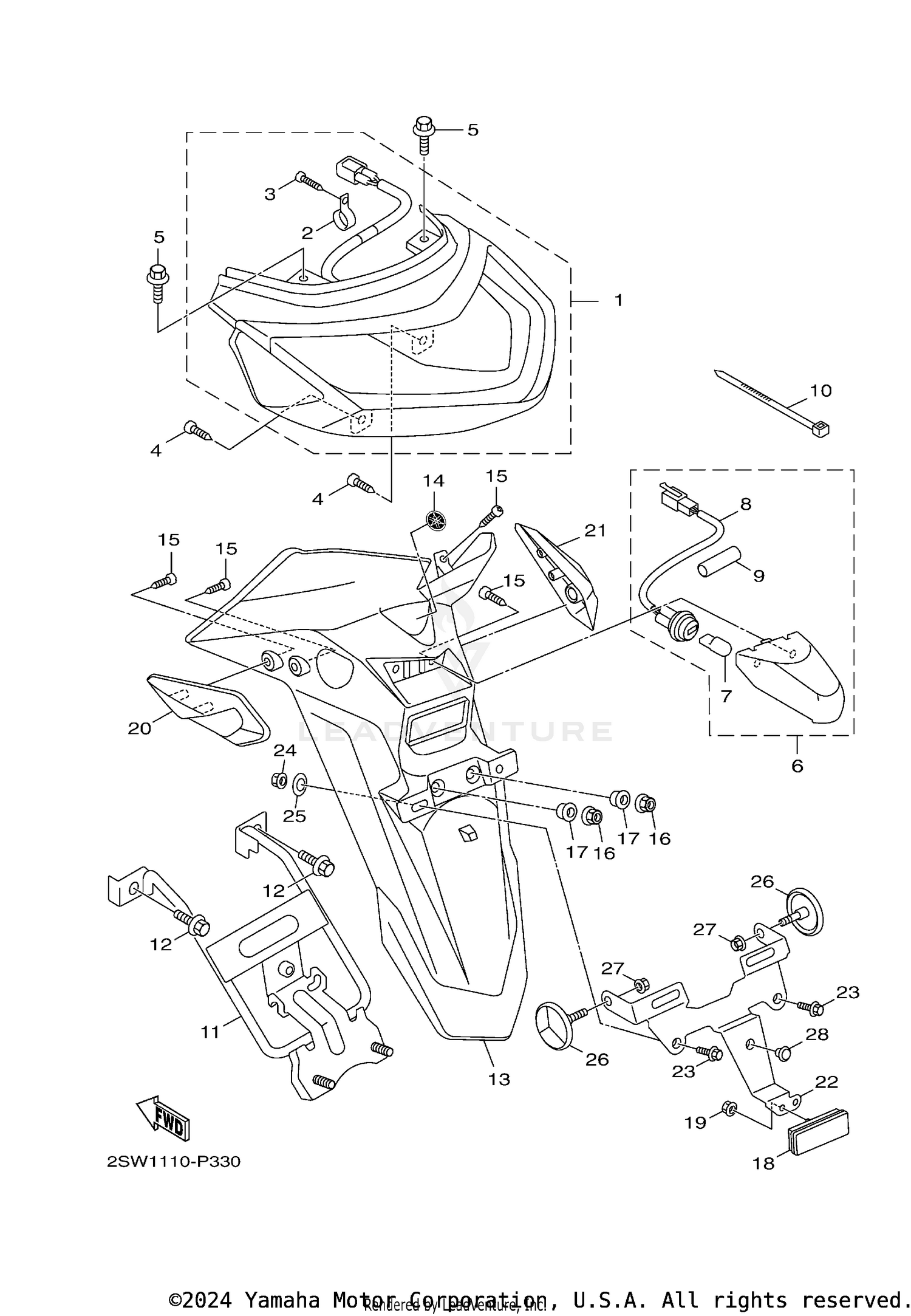

| Ref | Part Number | Description |
|---|
| 1 |
2SW-H4700-01-00 |
TAILLIGHT ASSY Price: $140.99 |
| 2 |
1CD-H4746-00-00 |
PLATE, SEAT BASE Price: $1.60 |
| 3 |
1CD-H4724-00-00 |
SCREW, LENS FITTING Price: $0.80 |
| 4 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 5 |
90119-06821-00 |
BOLT, WITH WASHER Price: $1.80 |
| 6 |
2SW-H4745-00-00 |
LICENSE LIGHT UNIT ASSY Price: $31.99 |
| 7 |
5FM-H4347-00-00 |
BULB (12V-5W) Price: $33.99 |
| 8 |
2SW-H4735-00-00 |
SOCKET CORD ASSY Price: $15.49 |
| 9 |
1DK-H3338-00-00 |
TUBE, CORD Price: $1.95 |
| 10 |
90464-15840-00 |
CLAMP Price: $0.99 |
| 11 |
1DK-F1640-00-00 |
REAR STAY COMP. Price: $14.99 |
| 12 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 13 |
2SW-F1685-00-00 |
BRACKET, LICENSE Price: $31.99 |
| 14 |
1DK-F1609-00-00 |
EMBLEM Price: $10.49 |
| 15 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 16 |
90179-06833-00 |
NUT Price: $1.50 |
| 17 |
90387-06868-00 |
COLLAR Price: $1.15 |
| 18 |
46P-H5130-00-00 |
REAR REFLECTOR ASSY Price: $3.50 |
| 19 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 20 |
2SW-F163A-00-00 |
COVER, REAR FENDER 1 Price: $2.50 |
| 21 |
2SW-F163E-00-00 |
COVER, REAR FENDER 2 Price: $2.50 |
| 22 |
2SW-H4751-00-00 |
BRACKET, LICENSE Price: $15.49 |
| 23 |
90119-06242-00 |
BOLT, WITH WASHER This part replaces 90119-06044-00. Price: $8.49 |
| 24 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 25 |
90201-06557-00 |
WASHER, PLATE Price: $3.55 |
| 26 |
2SW-H5131-01-00 |
REFLECTOR, REAR 1 This part replaces 2SW-H5131-00-00. Price: $4.70 |
| 27 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
