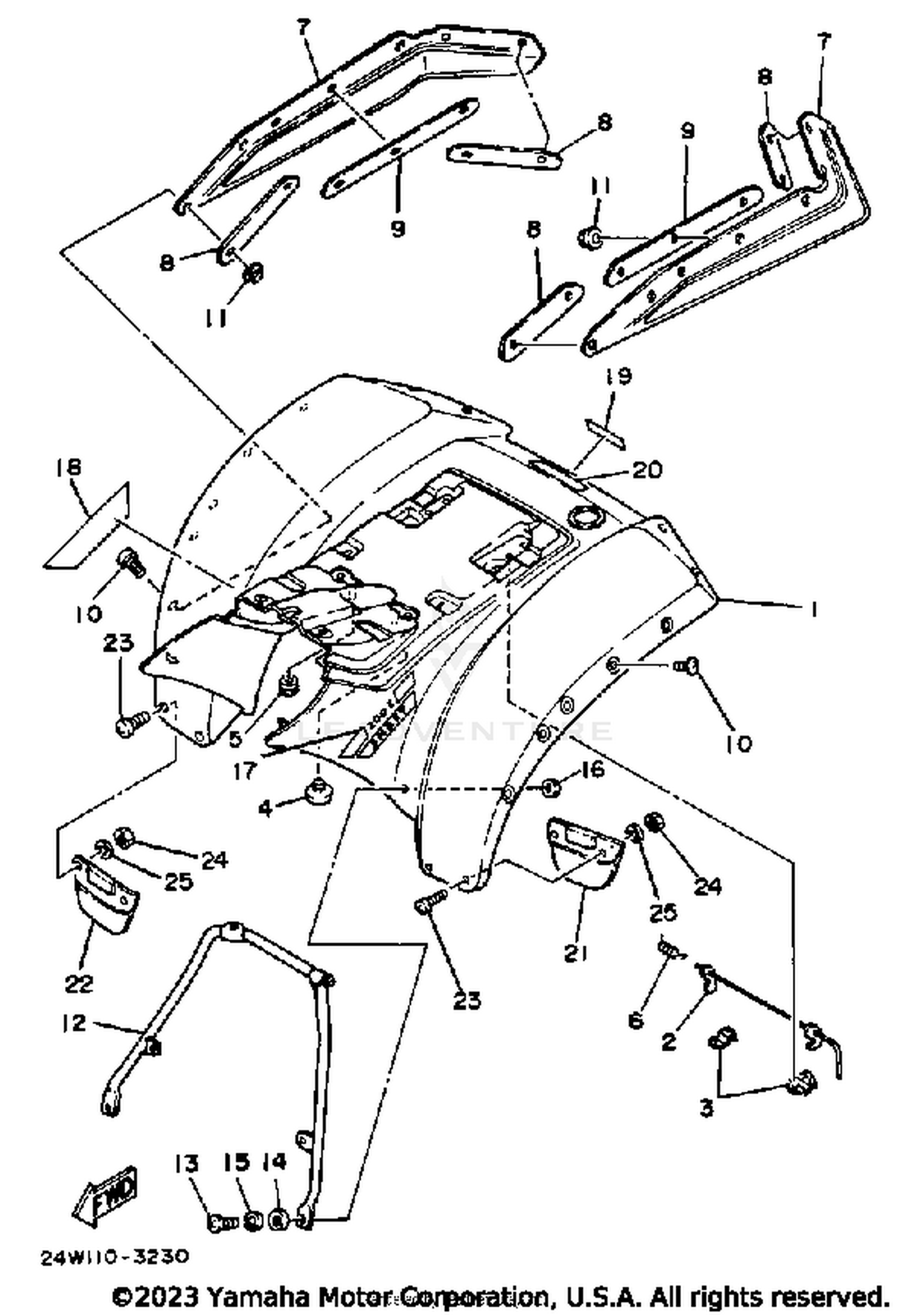

| Ref | Part Number | Description |
|---|
| 1 |
24W-21611-00-00 |
FENDER,REAR Price: $107.99 |
| 2 |
21V-24776-00-00 |
LEVER,SEAT Price: $16.18 |
| 3 |
21V-24775-00-00 |
BRACKET,SEAT LEVER Price: $4.84 |
| 4 |
1L9-24741-00-00 |
PAD, SEAT Price: $10.99 |
| 5 |
90480-19351-00 |
GROMMET Price: $3.50 |
| 6 |
90508-23567-00 |
SPRING, TORSION Price: $9.49 |
| 7 |
24W-21621-00-00 |
FLAP Price: $65.99 |
| 8 |
21V-21623-00-00 |
PLATE,FLAP FITTING 1 Price: $12.49 |
| 9 |
24W-21624-00-00 |
PLATE,FLAP FTNG 2 Price: $5.44 |
| 10 |
90154-05059-00 |
SCREW, BINDING Price: $10.49 |
| 11 |
95707-05500-00 |
NUT, FLANGE This part replaces 95701-05500-00. Price: $9.49 |
| 12 |
21V-21613-01-00 |
STAY,FENDER 1 Price: $33.99 |
| 13 |
98980-06016-00 |
SCREW, BIND This part replaces 98903-06016-00. Price: $9.49 |
| 14 |
90201-061A5-00 |
WASHER, PLATE Price: $8.49 |
| 15 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
| 16 |
24W-2163G-00-00 |
EMBLEM 1 Price: $13.49 |
| 16 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 17 |
24W-2163G-30-00 |
EMBLEM 1 Price: $27.99 |
| 17 |
24W-2163H-00-00 |
EMBLEM 2 Price: $11.99 |
| 18 |
24W-2163H-30-00 |
EMBLEM 2 Price: $16.49 |
| 19 |
24W-21784-30-00 |
EMBLEM 4 Price: $6.96 |
| 19 |
3X3-21784-00-00 |
EMBLEM 4 Price: $8.99 |
| 20 |
21V-21659-01-00 |
LABEL,SAFETY Price: $3.16 |
| 20 |
21V-21659-30-00 |
LABEL,SAFETY Price: $7.99 |
| 21 |
21V-2163A-00-00 |
COVER,REAR FENDER Price: $13.49 |
| 22 |
21V-2163E-00-00 |
COVER,REAR FNDR.3 Price: $11.99 |
| 23 |
90154-05016-00 |
SCREW, BINDING Price: $5.49 |
| 24 |
95617-05100-00 |
NUT, U This part replaces 95612-05100-00. Price: $10.49 |
