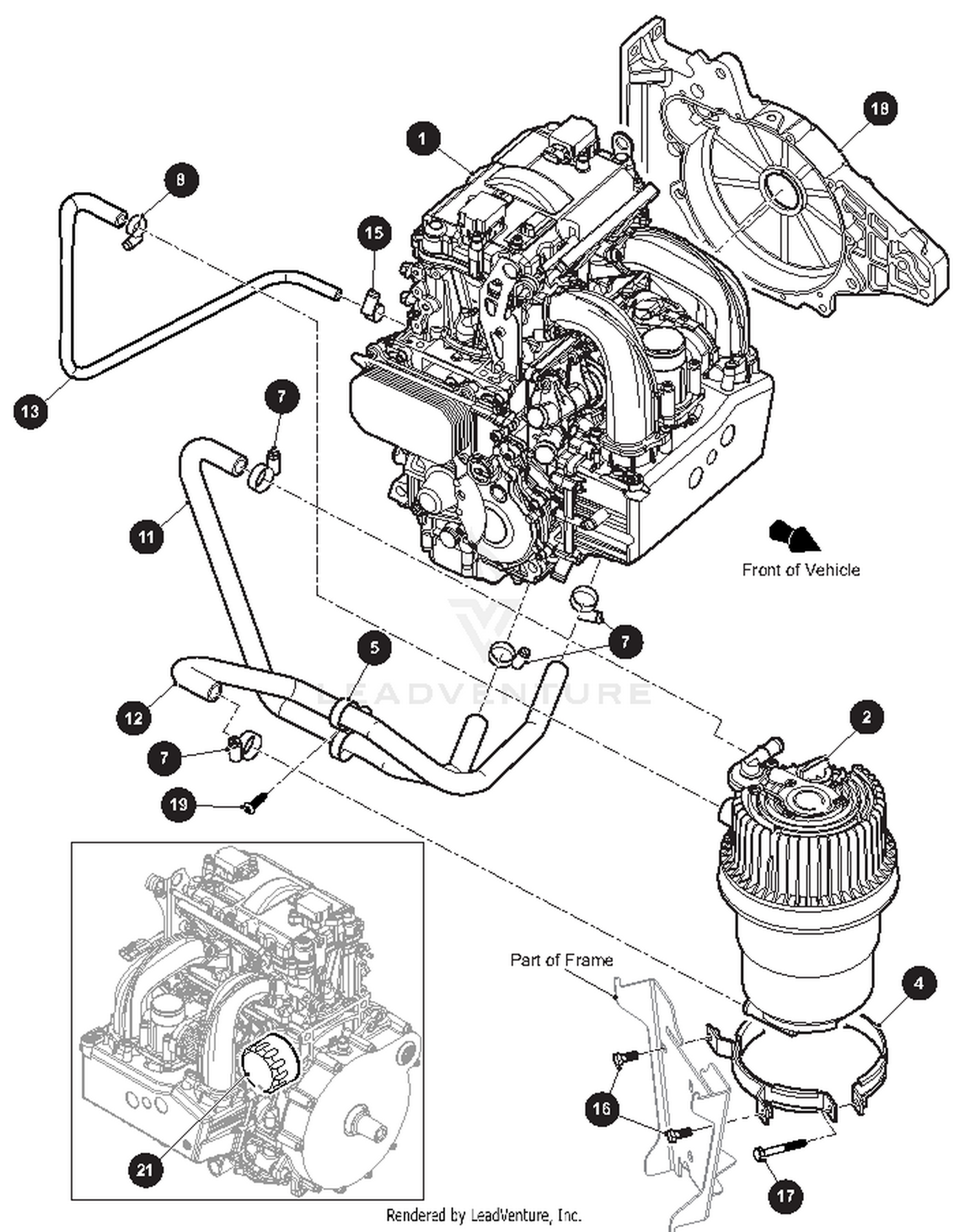

| Ref | Part Number | Description |
|---|
| 1 |
411454 |
I2 846 UTV NA-80 DS V005 2018 3.1 This part replaces 409135. Price: $6,291.95 |
| 2 |
404653 |
DEA OIL TANK / WITHOUT WATER JACKET Price: $249.84 |
| 4 |
642126 |
MTG BRACKET & CLAMP,OIL RESERVOIR Price: $35.04 |
| 5 |
645341 |
CLAMP TIE, DUAL Price: $7.95 |
| 7 |
652825 |
CLAMP,HOSE,032,20-32MM Price: $4.44 |
| 8 |
649517 |
CLAMP,HOSE,032, 25-40MM Price: $5.92 |
| 11 |
642128 |
SVC-HOSE,16MM I.D.,OIL,SUPPLY Price: $31.95 |
| 12 |
642129 |
SVC-HOSE,16MM I.D.,OIL,RETURN Price: $33.95 |
| 13 |
643496 |
HOSE,OIL,SCNDRY RETURN Price: $17.19 |
| 15 |
649481 |
CLAMP,HOSE,013, 8-16MM Price: $3.24 |
| 16 |
650195 |
SCREW,HX HD,M8 X 1.25 X 20,PC10.9 Not Available Price: |
| 17 |
616672 |
HEX HEAD BOLT, M8-1.25 X 60 Price: $6.99 |
| 18 |
649116 |
CASTING,STATOR COVER Price: $377.95 |
| 19 |
634161 |
BUTTON HEAD TORX BOLT, M6-1 X 30 Price: $2.99 |
