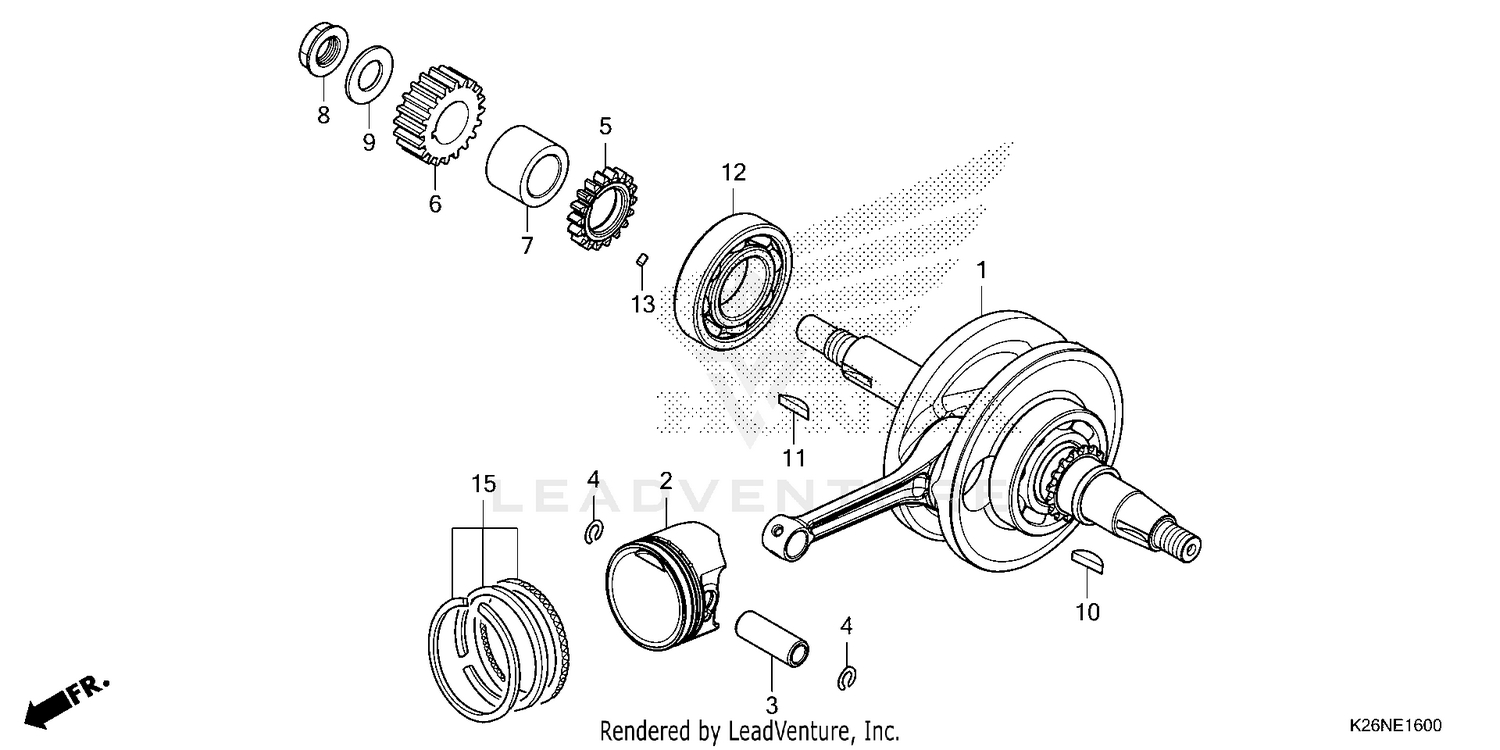

| Ref | Part Number | Description |
|---|
| 1 |
13000-K26-G00 |
CRANKSHAFT Price: $255.84 |
| 2 |
13101-K26-G00 |
PISTON (STD) Price: $30.73 |
| 3 |
13111-K0J-N00 |
PIN, PISTON Price: $11.29 |
| 4 |
13115-K1M-T00 |
CLIP, PISTON PIN (12MM) Price: $1.78 |
| 5 |
15341-K1M-T01 |
GEAR, OIL PUMP DRIVE (18T) Price: $10.29 |
| 6 |
23121-K26-G00 |
GEAR A, PRIMARY DRIVE (25T) Price: $51.73 |
| 6 |
23122-K26-G00 |
GEAR B, PRIMARY DRIVE (25T) Price: $49.49 |
| 6 |
23123-K26-G00 |
GEAR C, PRIMARY DRIVE (25T) Price: $49.49 |
| 6 |
23124-K26-G00 |
GEAR D, PRIMARY DRIVE (25T) Price: $49.49 |
| 7 |
23125-K26-G00 |
COLLAR, PRIMARY DRIVE GEAR Price: $5.85 |
| 8 |
90202-KRM-840 |
NUT, SPECIAL FLANGE (14MM) Price: $0.93 |
| 9 |
90432-KPT-A00 |
WASHER (14.2X26X3) Price: $2.05 |
| 10 |
90701-HB6-010 |
KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000. Price: $4.76 |
| 11 |
90741-KGH-900 |
KEY, WOODRUFF (4MM) Price: $2.58 |
| 12 |
91001-K1M-T02 |
BEARING, R. RADIAL BALL SPECIAL (62/28) (NTN) Price: $18.00 |
| 13 |
94303-03050 |
PIN, DOWEL (3X5) Price: $2.35 |
