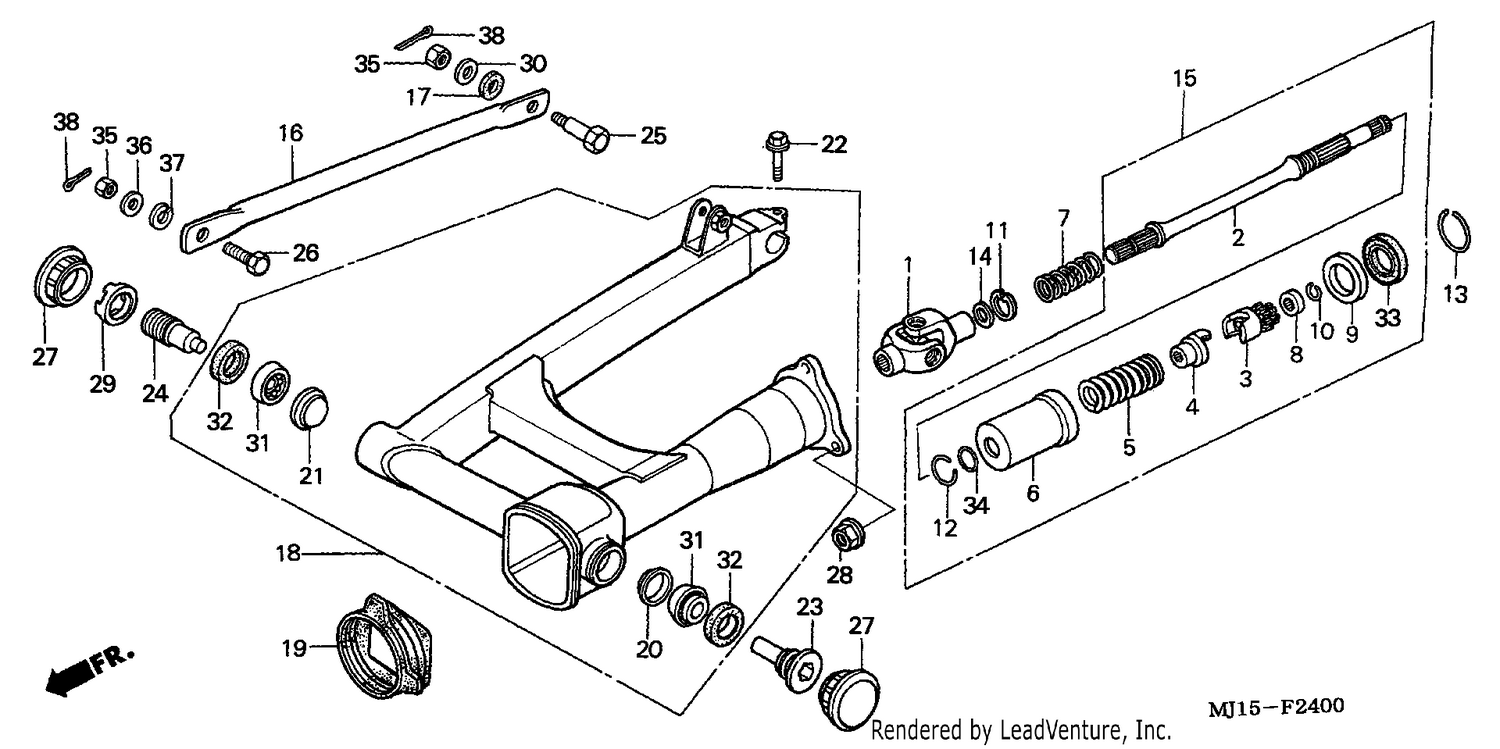

SWINGARM

SWINGARM

Parts (37)

RefPart NumberDescription
1 40200MJ1013 JOINT COMP., YOKE Price: Call Us
2 40201MJ1300 SHAFT, PROPELLER Price: Call Us
3 40211ME5000 CAM, DAMPER Price: Call Us
4 40212ME5000 LIFTER, DAMPER Price: Call Us
5 40213ME5000 SPRING, DAMPER CAM Price: Call Us
6 40214ME5000 COVER, DAMPER Price: Call Us
7 40215ME5000 SPRING, PROPELLER SHAFT Price: Call Us
8 40216ME5020 STOPPER, SPRING Price: Call Us
9 40217MB0010 GUIDE, OIL SEAL Price: Call Us
10 40218ME5000 RING, SPRING STOPPER Price: Call Us
11 40219ME5000 CIRCLIP Price: Call Us
12 40220ME5000 RING, DAMPER COVER Price: Call Us
13 40221MB0000 RING, STOPPER Price: Call Us
14 40222ME5000 STOPPER, PROPELLER SHAFT SPRING Price: Call Us
15 40250MJ1010 SHAFT ASSY., PROPELLER Price: Call Us
16 43431MJ1831 ARM, RR. BRAKE STOPPER Price: Call Us
17 43434ME1670 RUBBER, STOPPER ARM Price: Call Us
18 52100MJ1930ZA SWINGARM ASSY. *NH0* Price: Call Us
19 52105MJ1000 BOOT, JOINT Price: Call Us
20 52118ME5004 PLATE, DUST SEAL Price: Call Us
21 52118415000 PLATE, DUST SEAL Price: Call Us
22 90112413000 BOLT, UBS, 8X33 Price: Call Us
23 90124ME5000 BOLT, L. RR. FORK PIVOT Price: Call Us
24 90125MJ1000 BOLT, R. RR. FORK PIVOT Price: Call Us
25 90127393000 BOLT, RR. BRAKE STOPPER Price: Call Us
26 90133286000 BOLT, RR. BRAKE STOPPER ARM Price: Call Us
27 90302ME5000 CAP, LOCK NUT Price: Call Us
28 90308357000 NUT, HEX., 10MM Price: Call Us
29 90354ME5000 NUT, LOCK, 23MM Price: Call Us
30 90505425000 WASHER, 8MM Price: Call Us
31 91066415006 BEARING, 30202 (NIPPON SEIKO) Price: Call Us
32 91266ME5003 OIL SEAL, 20X35X5 Price: Call Us
33 91271MB0013 OIL SEAL, 47X56X7 Price: Call Us
34 91361ME5003 O-RING, 18X1.9 (ARAI) Price: Call Us
35 94001080000S NUT, HEX., 8MM Price: Call Us
36 9410108000 WASHER, PLAIN, 8MM Price: Call Us
37 9411110000 WASHER, SPRING, 10MM Price: Call Us
