Home / POWERSPORTS / SNOWMOBILE / 2018 / 2018 BEARCAT XT BLUE INTERNATIONAL [S2018BCCWTNAL] / SKI [106342]

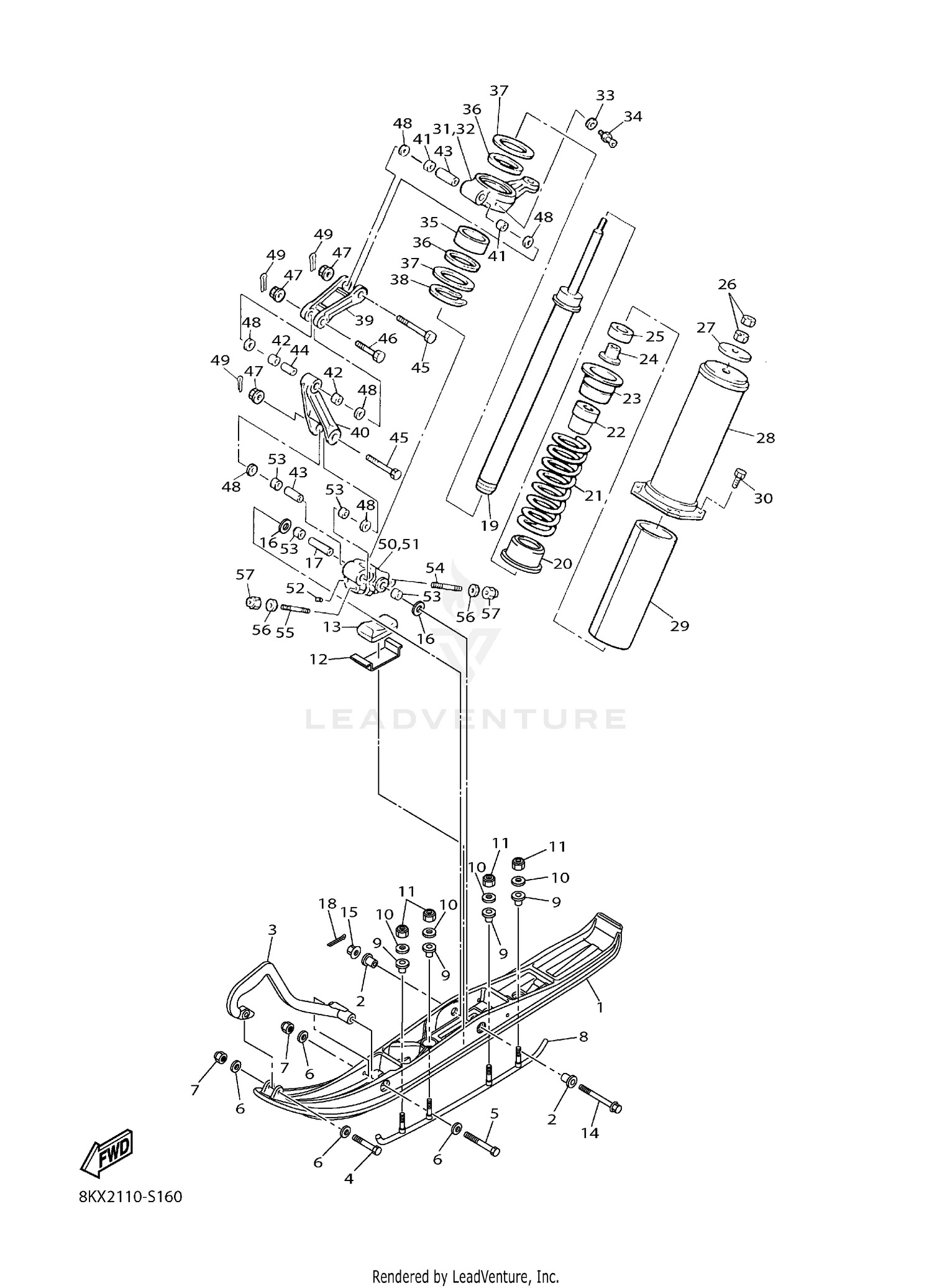

SKI [106342]

SKI [106342]

Parts (57)

RefPart NumberDescription
1 3020-860 Ski 1 Price: $266.95
2 3020-861 Collar 1 Price: $33.43
3 3020-913 Reinforcement, Head Price: $38.95
4 3021-007 Bolt, Reinforcement Head 1 Price: $3.47
5 3021-008 Bolt, Reinforcement Head 2 Price: $35.95
6 3021-006 Washer 1 Price: $2.34
7 3021-009 Nut Price: $0.89
8 3020-920 Runner 1 Price: $208.95
9 3021-429 Collar Price: $7.95
10 3021-328 Washer, Plate Price: $1.99
11 3021-619 Nut, Nylon Price: $2.34
12 3020-862 Stopper Price: $4.37
13 3020-829 Stopper 1 Price: $19.04
14 3021-279 Bolt, Flange Price: $11.18
15 3021-609 Nut, S/L Flange Price: $3.25
16 3021-338 Washer, Plate Price: $5.04
17 3021-437 Collar Price: $5.95
18 2623-105 Pin, Cotter Price: $0.35
19 3021-069 Damper Sub Assembly Price: $411.95
20 3021-070 Seat, Spring 2 Price: $19.04
21 3021-506 Spring, Compression Price: $61.95
22 3020-845 Bump, Stop Price: $51.95
23 3021-220 Plate, Back Up Price: $56.95
24 3021-428 Collar Price: $12.30
25 3020-721 Washer Price: $17.92
26 3021-604 Nut, Hexagon Price: $3.13
27 3021-330 Washer, Plate Price: $1.99
28 3020-887 Holder, Absorber Price: $199.95
29 3021-219 Protector Price: $17.92
30 3021-655 Bolt, Hexagon Price: $2.34
31 3020-722 Arm, Outside 1 (L,H) Price: $202.99
32 3020-891 Arm, Outside 2 (R,H) Price: $281.95
33 3021-327 Washer, Plate Price: $1.59
34 3021-588 Nipple, Grease Price: $3.89
35 3021-415 Bush, Bimetal Formed Price: $26.95
36 3021-553 Oil Seal Price: $12.30
37 3021-361 Washer, Plate (T=2.0) Price: $11.18
37 3021-362 Washer, Plate (T=1.0) Price: $11.18
38 3021-579 Circlip Price: $5.95
39 3021-221 Arm, Front 1 Price: $76.95
40 3021-222 Arm, Front 2 Price: $72.95
41 3021-411 Bush, Bimetal Formed Price: $10.05
42 3021-412 Bush, Bimetal Formed Price: $10.05
43 3021-435 Collar Price: $19.04
44 3021-433 Collar Price: $19.04
45 3021-265 Bolt, With Hole Price: $11.18
46 3021-267 Bolt, With Hole Price: $34.51
47 3021-626 Nut, Flange Price: $1.69
48 3021-366 Washer, Plate Price: $3.13
49 2623-105 Pin, Cotter Price: $0.35
50 3020-778 Bracket 1 Price: $375.95
51 3020-779 Bracket 2 Price: $375.79
52 3021-285 Bolt, Set Price: $5.04
53 3021-411 Bush, Bimetal Formed Price: $10.05
54 3021-613 Bolt, Stud Price: $2.91
55 3021-612 Bolt, Stud Price: $2.91
56 3021-538 Washer, Plate Price: $3.47
