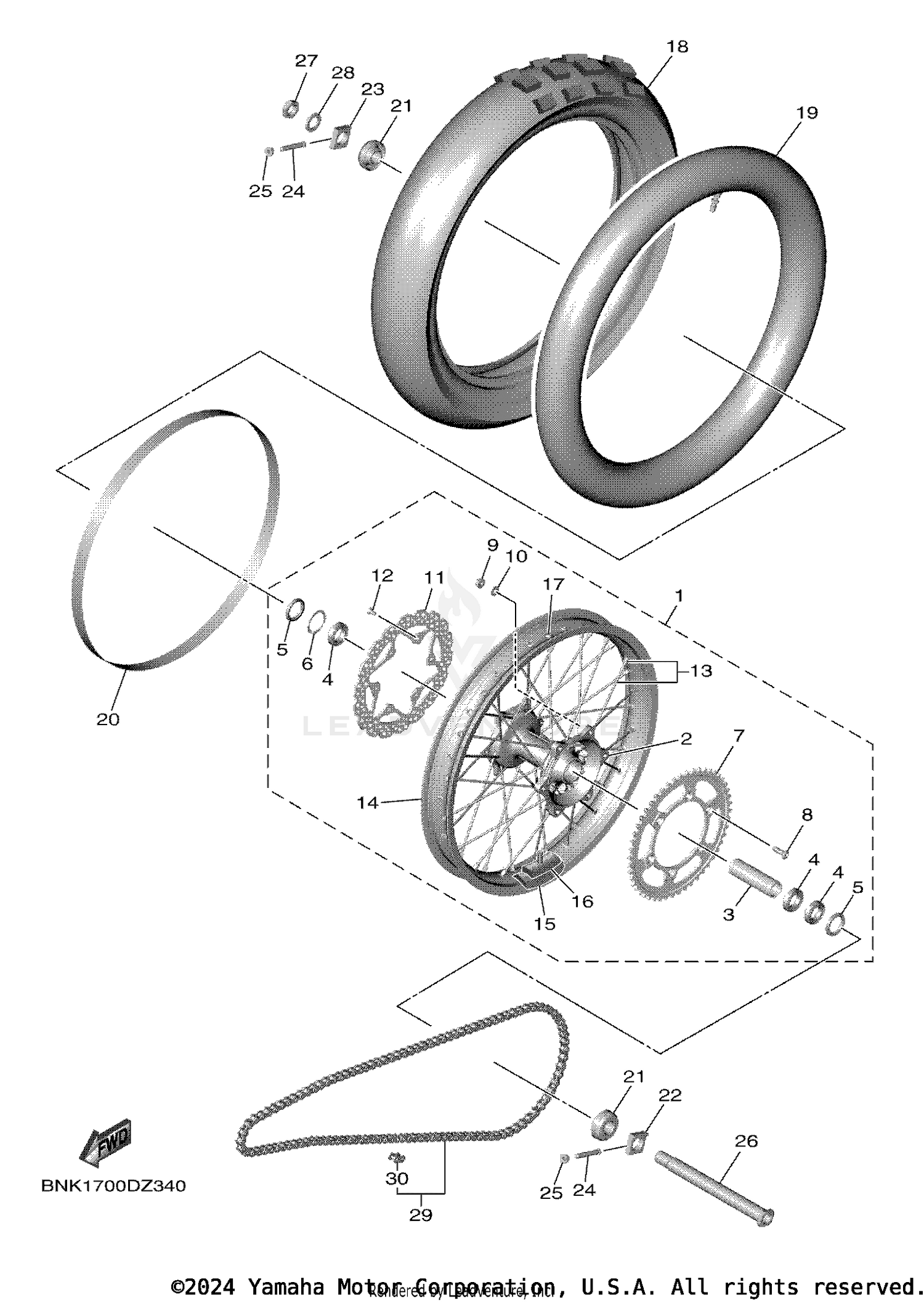

| Ref | Part Number | Description |
|---|
| 1 |
BNK-25302-00-00 |
REAR WHEEL SUB-ASSY Price: $549.99 |
| 2 |
B2W-25311-00-00 |
HUB, REAR Price: $258.99 |
| 3 |
17D-25317-00-00 |
SPACER, BEARING Price: $48.99 |
| 4 |
93306-90511-00 |
BEARING Price: $26.99 |
| 5 |
93102-32M07-00 |
OIL SEAL This part replaces 93102-32337-00. Price: $20.99 |
| 6 |
99009-42700-00 |
CIRCLIP Price: $8.49 |
| 8 |
90109-081G1-00 |
BOLT Price: $3.60 |
| 9 |
90185-08008-00 |
NUT, SELF-LOCKING Price: $8.49 |
| 10 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 11 |
B2W-2582W-00-00 |
DISK, REAR BRAKE 2 Price: $146.99 |
| 12 |
90151-06079-00 |
SCREW, COUNTERSUNK This part replaces 90151-06051-00. Price: $3.45 |
| 15 |
3JE-25394-00-00 |
SPACER, BEAD Price: $41.99 |
| 16 |
4XM-25364-00-00 |
DAMPER Price: $8.49 |
| 17 |
90480-10068-00 |
GROMMET This part replaces 90480-08608-00. Price: $9.49 |
| 21 |
BR9-2530S-01-00 |
COLLAR ASSY Price: $43.99 |
| 22 |
1SL-25388-00-00 |
PULLER, CHAIN 1 Price: $36.99 |
| 23 |
1SL-25389-00-00 |
PULLER, CHAIN 2 Price: $34.99 |
| 24 |
90101-08006-00 |
BOLT Price: $9.49 |
| 25 |
90179-08019-00 |
NUT Price: $8.49 |
| 26 |
17D-25381-00-00 |
AXLE, WHEEL Price: $99.99 |
| 27 |
90185-22011-00 |
NUT, SELF-LOCKING Price: $34.99 |
| 28 |
90201-22023-00 |
WASHER, PLATE Price: $8.49 |
| 29 |
9Y582-50113-00 |
CHAIN Price: $236.99 |
