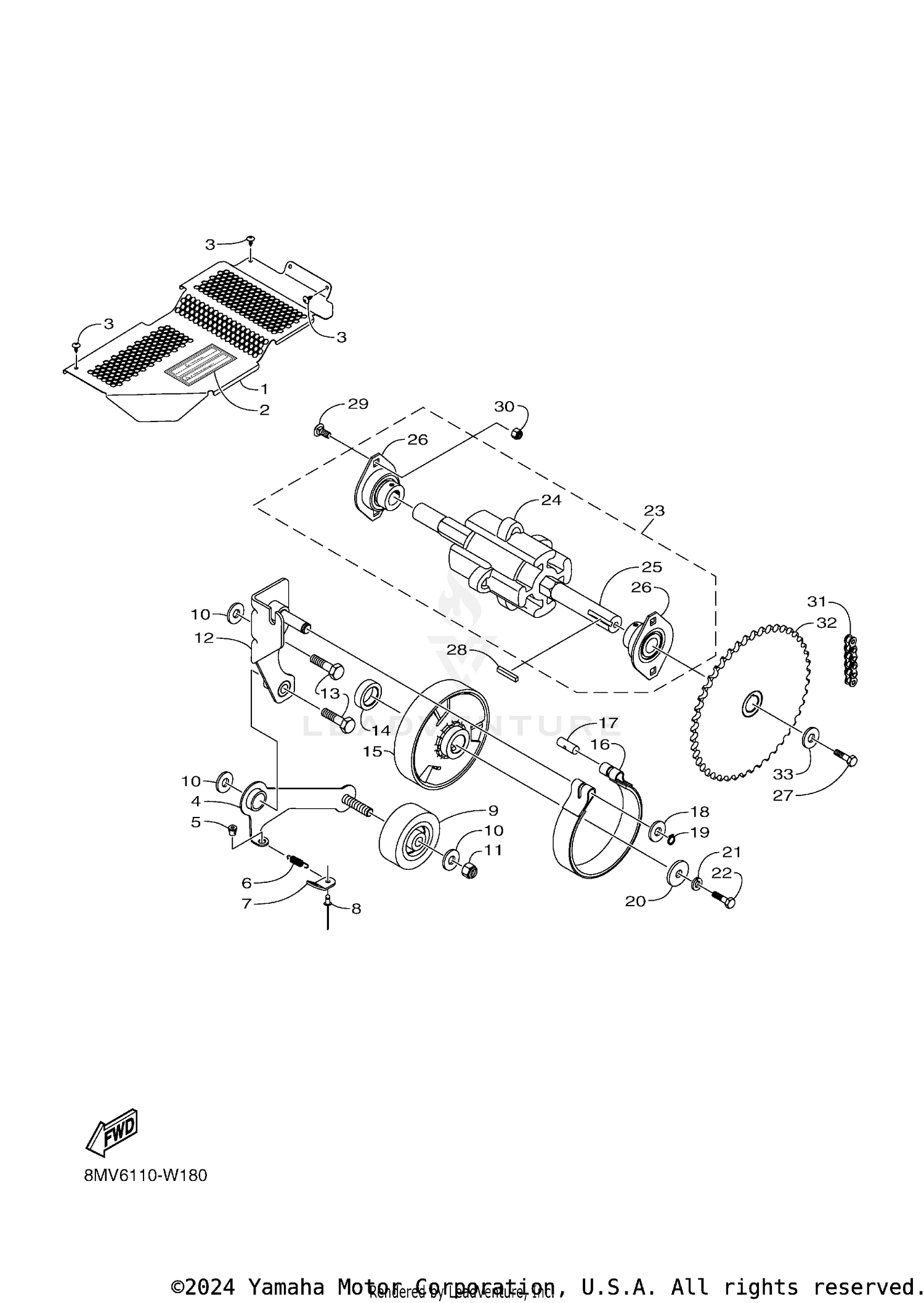

| Ref | Part Number | Description |
|---|
| 1 |
8JM-K7311-01-00 |
GUARD, DRIVE Price: $43.99 |
| 2 |
8JM-K7762-00-00 |
LABEL, WARNING 2 Price: $2.40 |
| 3 |
8KC-RA290-00-00 |
SCREW Price: $2.25 |
| 4 |
8JM-G7613-10-00 |
HOLDER Price: $46.99 |
| 5 |
8JM-G7538-00-00 |
BUSH Price: $1.75 |
| 6 |
8JM-RAD05-00-00 |
SPRING, TENSION 4 Price: $4.95 |
| 7 |
8JM-G2148-00-00 |
RETAINER, SPRING Price: $7.49 |
| 8 |
8JP-RA514-00-00 |
RIVET, 5 Price: $0.75 |
| 9 |
8JM-G7429-00-00 |
ROLLER Price: $120.99 |
| 10 |
8JM-RA403-00-00 |
WASHER, PLAIN 5/16 Price: $1.15 |
| 11 |
8JM-RA302-00-00 |
NUT, SELF-LOCKING 5/16-18 Price: $0.65 |
| 12 |
8JM-F5676-00-00 |
BRACKET, BRAKE PEDAL Price: $95.99 |
| 13 |
8JM-RA114-00-00 |
BOLT, HEXAGON 5/16-24X1.5 Price: $4.50 |
| 14 |
8JM-RA700-00-00 |
COLLAR, 19 Price: $19.99 |
| 15 |
8JM-E760P-20-00 |
PRIMARY CLUTCH ASSY Price: $173.99 |
| 16 |
8JM-F5719-00-00 |
BAND Price: $104.99 |
| 17 |
8JM-RAY00-00-00 |
PIN, 1 Price: $24.99 |
| 18 |
8JM-RA405-00-00 |
WASHER, PLAIN 3/8 Price: $0.50 |
| 19 |
8JM-RAH00-00-00 |
CIRCLIP, 1 Price: $1.70 |
| 20 |
8JM-RA405-10-00 |
WASHER, PLAIN Price: $5.49 |
| 21 |
8JM-RA402-00-00 |
WASHER, SPRING 5/16 Price: $2.55 |
| 22 |
8JM-RA103-00-00 |
BOLT, HEXAGON 5/16-24X1 Price: $1.90 |
| 23 |
8MV-G7501-00-00 |
FRONT AXLE SUB-ASSY Price: $299.99 |
| 24 |
8MV-G7531-00-00 |
WHEEL, SPROCKET 1 Price: $55.99 |
| 25 |
8JM-G7511-00-00 |
AXLE, FRONT Price: $103.99 |
| 26 |
8JM-RAY01-00-00 |
BEARING, 1 Price: $166.99 |
| 27 |
8MV-RA112-00-00 |
BOLT, FLANGE 5/16-18X0.875 Price: $4.65 |
| 28 |
8JM-G7733-10-00 |
KEY,DRIVE Price: $1.00 |
| 29 |
8JM-RA123-00-00 |
BOLT, 5/16-18X0.75 Price: $2.35 |
| 30 |
8JM-RA303-00-00 |
NUT, SELF-LOCKING 5/16-18 Price: $1.15 |
| 31 |
8JM-E6139-00-00 |
CHAIN, PRIMARY Price: $43.99 |
| 32 |
8JM-G7587-20-00 |
SPROCKET, CHAIN DR Price: $197.99 |
