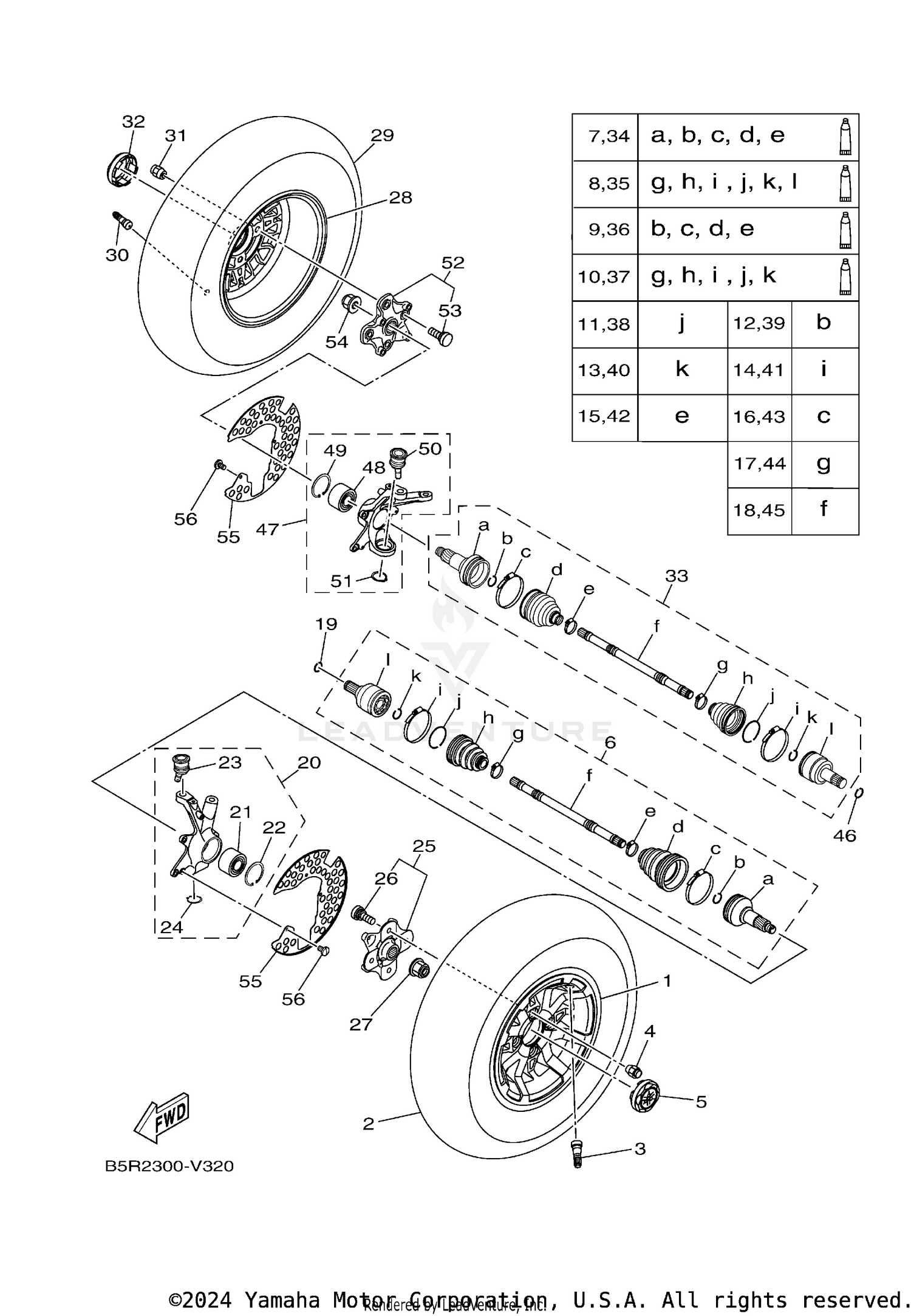

FRONT WHEEL
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B32-F5168-A0-00 | CAST WHEEL, FRONT Price: $233.99 |
| 4 | 90179-10032-00 | NUT Price: $14.49 |
| 5 | 1RB-F530B-00-00 | WHEEL CAP ASSY. Price: $15.49 |
| 6 | B5R-2518F-01-00 | DRIVE SHAFT ASSY Price: $249.99 |
| 11 | 4S1-2512H-00-00 | CIRCLIP Price: $1.95 |
| 12 | 3B4-2512H-00-00 | CIRCLIP Price: $7.49 |
| 13 | 2HR-2512J-00-00 | SNAP RING Price: $7.49 |
| 14 | 4S1-2511G-00-00 | BOOT BAND Price: $11.99 |
| 15 | 28P-2512G-00-00 | BOOT BAND (SMALL) Price: $17.99 |
| 16 | 28P-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 19 | 93450-22119-00 | CIRCLIP Price: $9.49 |
| 20 | BB5-F3501-00-00 | STEERING KNUCKLE ASSY (LEFT) Price: $177.99 |
| 21 | 93305-00602-00 | BEARING Price: $110.99 |
| 22 | 99009-55500-00 | CIRCLIP Price: $10.49 |
| 23 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 24 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 25 | B16-F510D-03-00 | HUB ASSY 2 Price: $59.99 |
| 26 | 90114-10014-00 | BOLT, SERRATION Price: $3.55 |
| 27 | 90179-20016-00 | NUT Price: $12.99 |
| 28 | B32-F5168-A0-00 | CAST WHEEL, FRONT Price: $233.99 |
| 31 | 90179-10032-00 | NUT Price: $14.49 |
| 32 | 1RB-F530B-00-00 | WHEEL CAP ASSY. Price: $15.49 |
| 33 | B5R-2518G-01-00 | DRIVE SHAFT ASSY Price: $284.99 |
| 38 | 4S1-2512H-00-00 | CIRCLIP Price: $1.95 |
| 39 | 3B4-2512H-00-00 | CIRCLIP Price: $7.49 |
| 40 | 2HR-2512J-00-00 | SNAP RING Price: $7.49 |
| 41 | 4S1-2511G-00-00 | BOOT BAND Price: $11.99 |
| 42 | 28P-2512G-00-00 | BOOT BAND (SMALL) Price: $17.99 |
| 43 | 28P-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 45 | B5R-2518E-00-00 | SHAFT Price: $98.99 |
| 46 | 93450-22119-00 | CIRCLIP Price: $9.49 |
| 47 | BB5-F3502-00-00 | STEERING KNUCKLE ASSY (RIGHT) Price: $235.99 |
| 48 | 93305-00602-00 | BEARING Price: $110.99 |
| 49 | 99009-55500-00 | CIRCLIP Price: $10.49 |
| 50 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 51 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 52 | B16-F510D-03-00 | HUB ASSY 2 Price: $59.99 |
| 53 | 90114-10014-00 | BOLT, SERRATION Price: $3.55 |
| 54 | 90179-20016-00 | NUT Price: $12.99 |
| 55 | BB5-F514A-00-00 | RING, WHEEL 1 Price: $16.49 |
