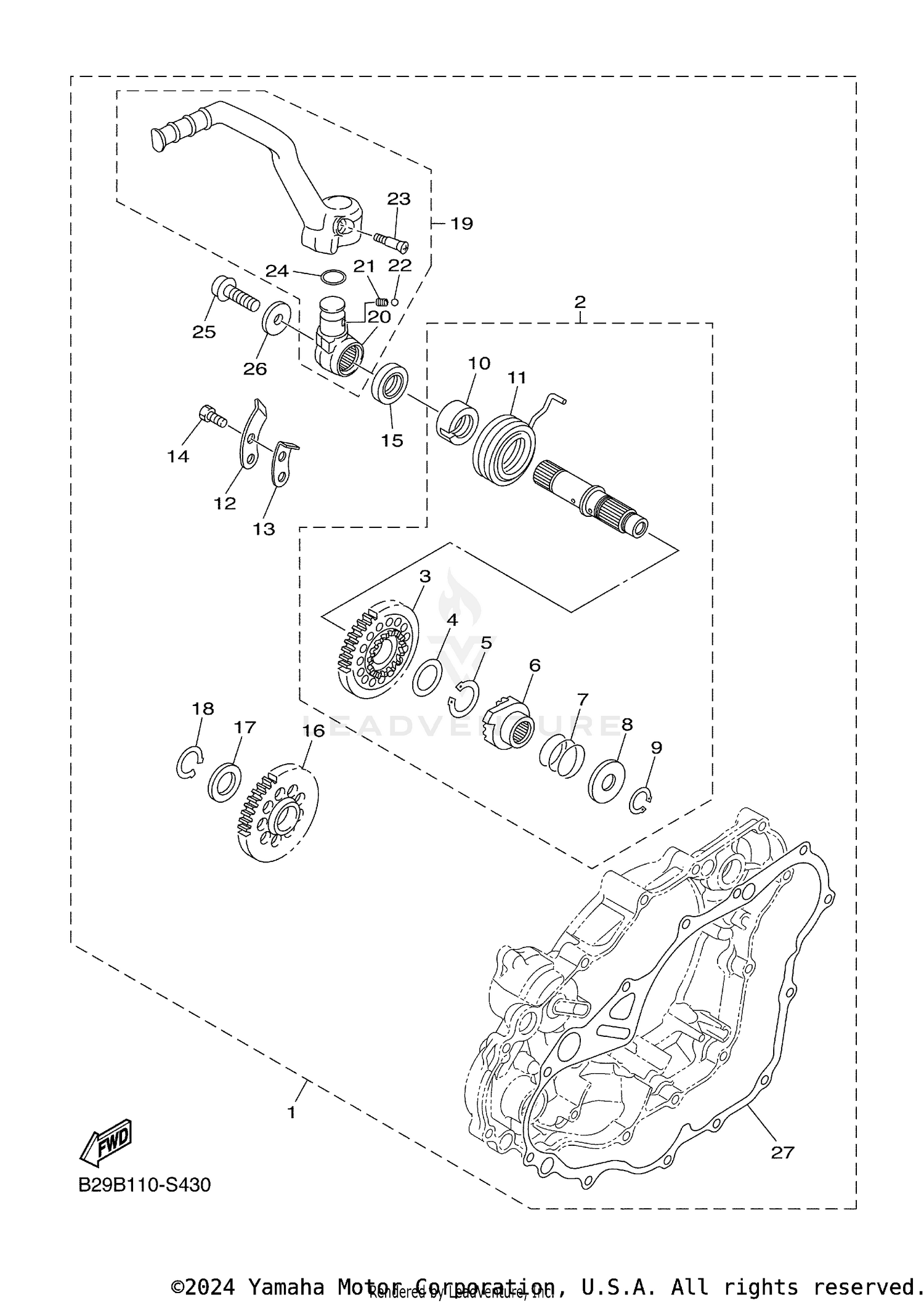

| Ref | Part Number | Description |
|---|
| 2 |
1SM-15601-00-00 |
KICK SHAFT ASSY Price: $214.99 |
| 3 |
1SM-15641-00-00 |
GEAR, KICK Price: $78.99 |
| 4 |
90201-20685-00 |
WASHER, PLATE (T=0.5) Price: $8.49 |
| 5 |
93410-20038-00 |
CIRCLIP, S-TYPE Price: $4.05 |
| 6 |
2S2-15671-00-00 |
WHEEL, RATCHET Price: $59.99 |
| 7 |
90501-160A2-00 |
SPRING, COMPRESSION Price: $4.20 |
| 8 |
90201-167P7-00 |
WASHER, PLATE Price: $10.49 |
| 9 |
99009-16400-00 |
CIRCLIP Price: $6.49 |
| 10 |
5NL-15664-00-00 |
GUIDE, SPRING Price: $14.49 |
| 11 |
90508-30743-00 |
SPRING, TORSION Price: $20.99 |
| 12 |
2NX-15674-00-00 |
GUIDE, RATCHET WHEEL This part replaces 214-15674-00-00. Price: $10.99 |
| 13 |
2NX-15668-00-00 |
STOPPER Price: $27.99 |
| 14 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 90101-06044-00. Price: $2.76 |
| 16 |
1SM-15651-00-00 |
GEAR, KICK IDLE Price: $65.99 |
| 17 |
90201-177G4-00 |
WASHER, PLATE Price: $10.49 |
| 18 |
99009-17400-00 |
CIRCLIP Price: $5.49 |
| 19 |
1SM-15620-00-00 |
KICK CRANK ASSY Price: $232.99 |
| 20 |
1SM-15621-00-00 |
BOSS, KICK CRANK Price: $69.99 |
| 21 |
90501-147A5-00 |
SPRING, COMPRESSION Price: $9.49 |
| 22 |
93507-32031-00 |
BALL This part replaces 93507-32009-00. Price: $5.49 |
| 23 |
90151-06045-00 |
SCREW, COUNTERSUNK Price: $9.49 |
| 24 |
93210-17570-00 |
O-RING Price: $8.49 |
| 25 |
90110-08052-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-08051-00. Price: $9.49 |
| 26 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
