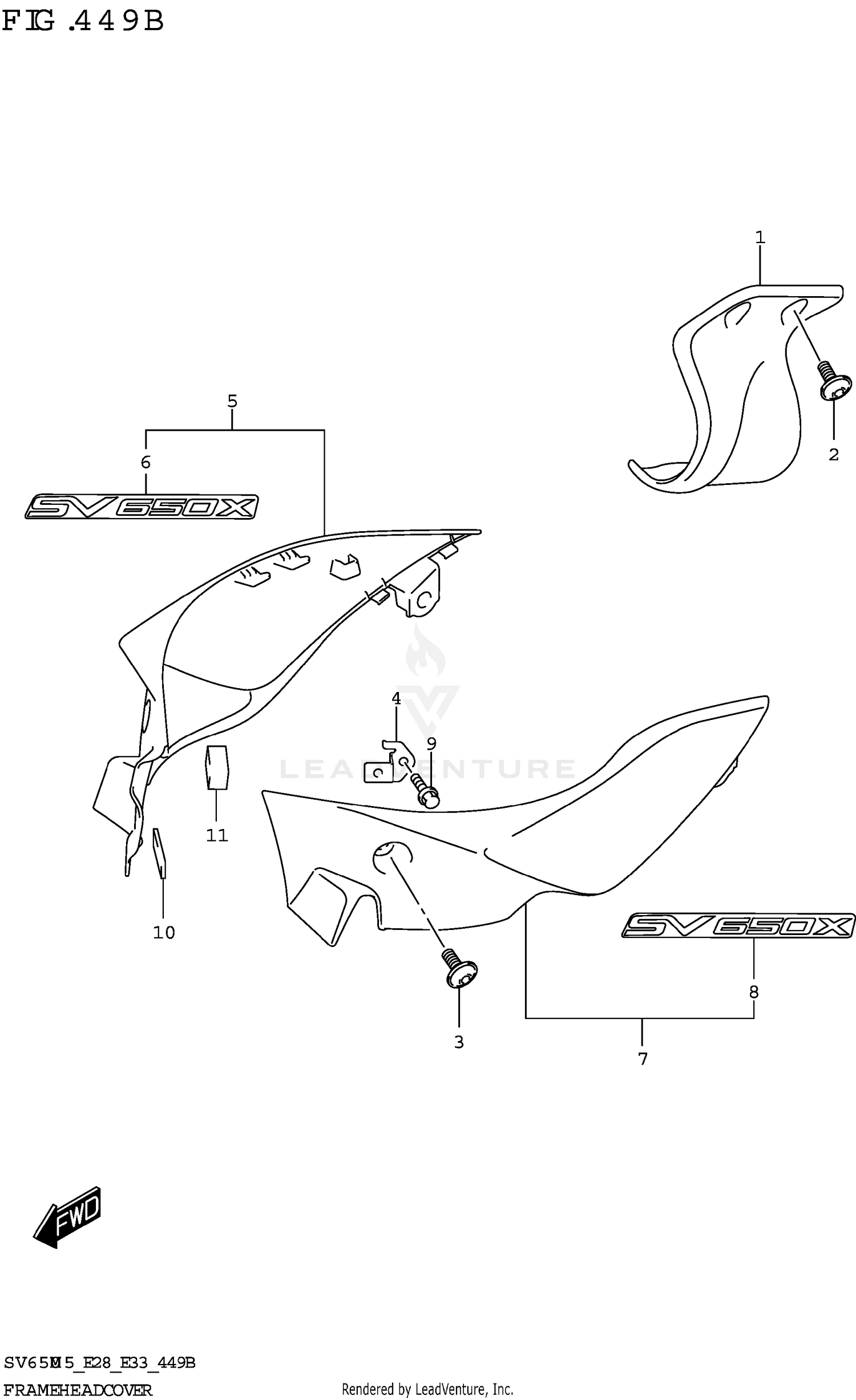

FRAME HEAD COVER ((SV650XA):(E28))
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47543-44H00 | COVER,FRAME BODY RR LH Price: $30.60 |
| 2 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 3 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 4 | 47115-18K00 | BRACKET,FRAME COVER Price: $13.87 |
| 5 | 47120-18K10-QU2 | COVER,FRAME UPPER,R (WHITE) Price: Call Us |
| 7 | 47220-18K10-QU2 | COVER,FRAME UPPER,L (WHITE) Price: Call Us |
| 9 | 01550-0510A | BOLT Price: $2.56 |
| 10 | 33652-20C00 | PROTECTOR (50X50X5) This part replaces 33652-21G10. Price: $3.69 |
