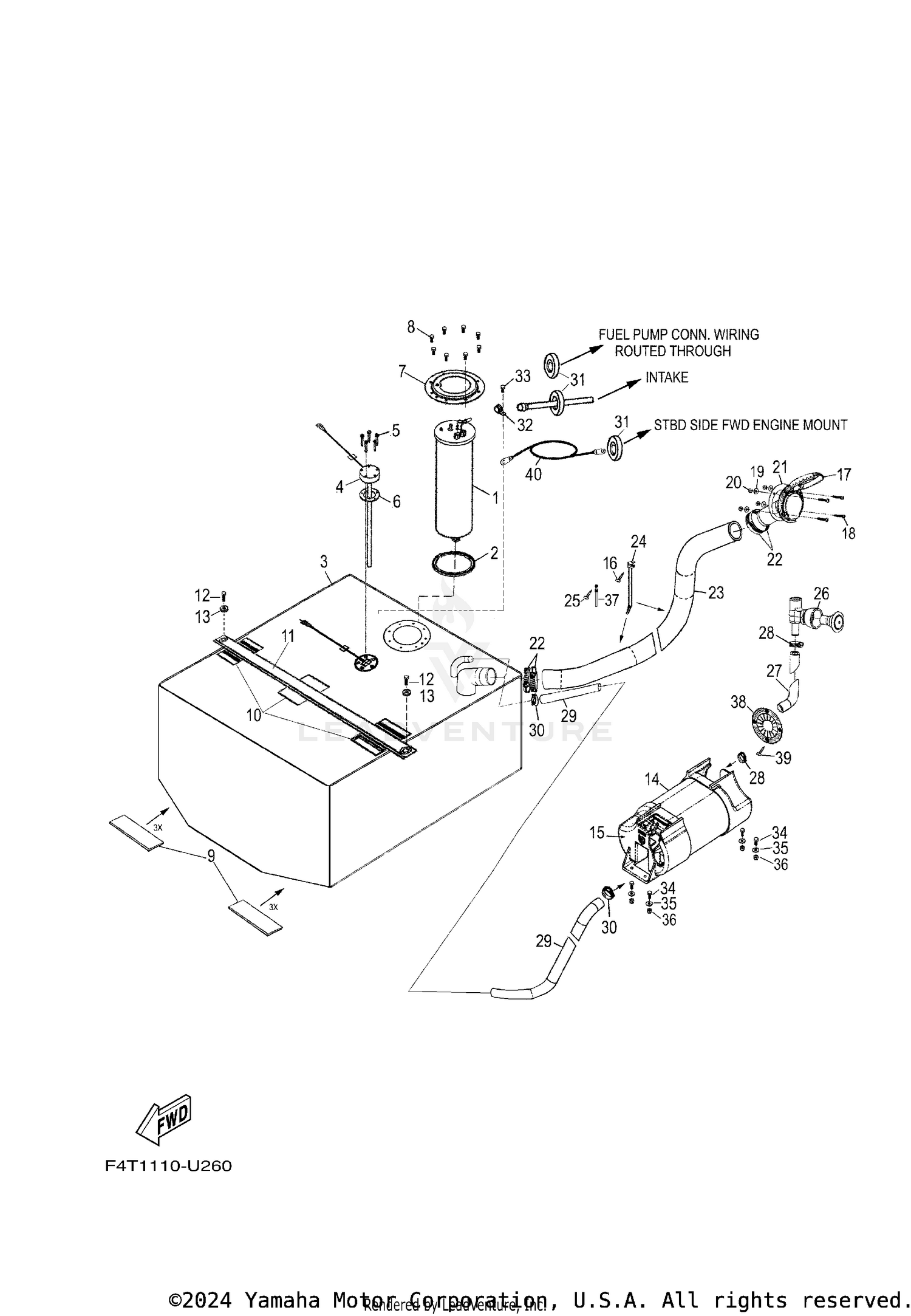

| Ref | Part Number | Description |
|---|
| 1 |
6AP-13907-05-00 |
FUEL PUMP COMP. This part replaces 6AP-13907-03-00. Price: $1,192.49 |
| 2 |
F1B-67747-00-00 |
PACKING, SEAL Price: $22.49 |
| 3 |
F4C-U7710-00-00 |
FUEL TANK ASSY. Price: $1,149.99 |
| 4 |
F4A-U824B-00-00 |
SENDER, FUEL Price: $195.99 |
| 5 |
90149-10SB2-00 |
SCREW Price: $0.45 |
| 6 |
F1C-U775E-00-00 |
PACKING Price: $17.99 |
| 7 |
F1B-U7773-00-00 |
RING Price: $30.99 |
| 8 |
90149-14SC7-00 |
SCREW Price: $5.99 |
| 9 |
F2A-U6632-00-00 |
PAD Price: $6.99 |
| 10 |
GJ3-U755J-00-00 |
MAT,WATER LOCK Price: $112.99 |
| 11 |
F4C-U777B-00-00 |
FIX, FUEL TANK Price: $81.99 |
| 12 |
90101-08802-00 |
BOLT Price: $1.15 |
| 13 |
90201-15SA1-00 |
WASHER, PLATE Price: $6.99 |
| 14 |
F3R-U775L-00-00 |
BRACKET,OILTANK 2 Price: $194.99 |
| 15 |
F3R-U895D-00-00 |
PROTECTOR Price: $79.99 |
| 16 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 17 |
F2J-U783E-10-00 |
FUEL FILLER ASSY Price: $153.99 |
| 18 |
90157-08S16-00 |
SCREW, PAN HEAD Price: $3.99 |
| 19 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 20 |
90185-08S00-00 |
NUT, SELF-LOCKING Price: $6.99 |
| 21 |
F2J-U7834-00-00 |
PACKING FUEL FILLER Price: $14.99 |
| 22 |
90450-57802-00 |
HOSE CLAMP ASSY Price: $4.99 |
| 23 |
F4T-U7844-00-00 |
HOSE Price: $114.99 |
| 24 |
90464-99806-00 |
CLAMP Price: $6.99 |
| 25 |
90167-08S10-00 |
SCREW, TAPPING Price: $5.99 |
| 26 |
F2J-U7850-00-00 |
AIR VENT Price: $71.99 |
| 27 |
F3R-U7856-00-00 |
HOSE, AIR VENT 3 Price: $38.99 |
| 28 |
90450-27801-00 |
HOSE CLAMP ASSY. Price: $3.99 |
| 29 |
F2D-U7856-10-00 |
HOSE, AIR VENT 3 Price: $21.57 |
| 30 |
90450-27801-00 |
HOSE CLAMP ASSY. Price: $3.99 |
| 31 |
F1C-U136D-10-00 |
GROMMET Price: $5.99 |
| 32 |
F1C-U781B-00-00 |
HOLDER PIPE 1 Price: $1.90 |
| 33 |
90149-10S06-00 |
SCREW Price: $0.30 |
| 34 |
90149-10SD5-00 |
SCREW Price: $11.99 |
| 35 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 36 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 37 |
90601-200U8-00 |
BAND Price: $6.99 |
| 38 |
GP1-U1365-00-00 |
GROMMET Price: $9.49 |
| 39 |
90167-08S08-00 |
SCREW, TAPPING Price: $4.99 |
