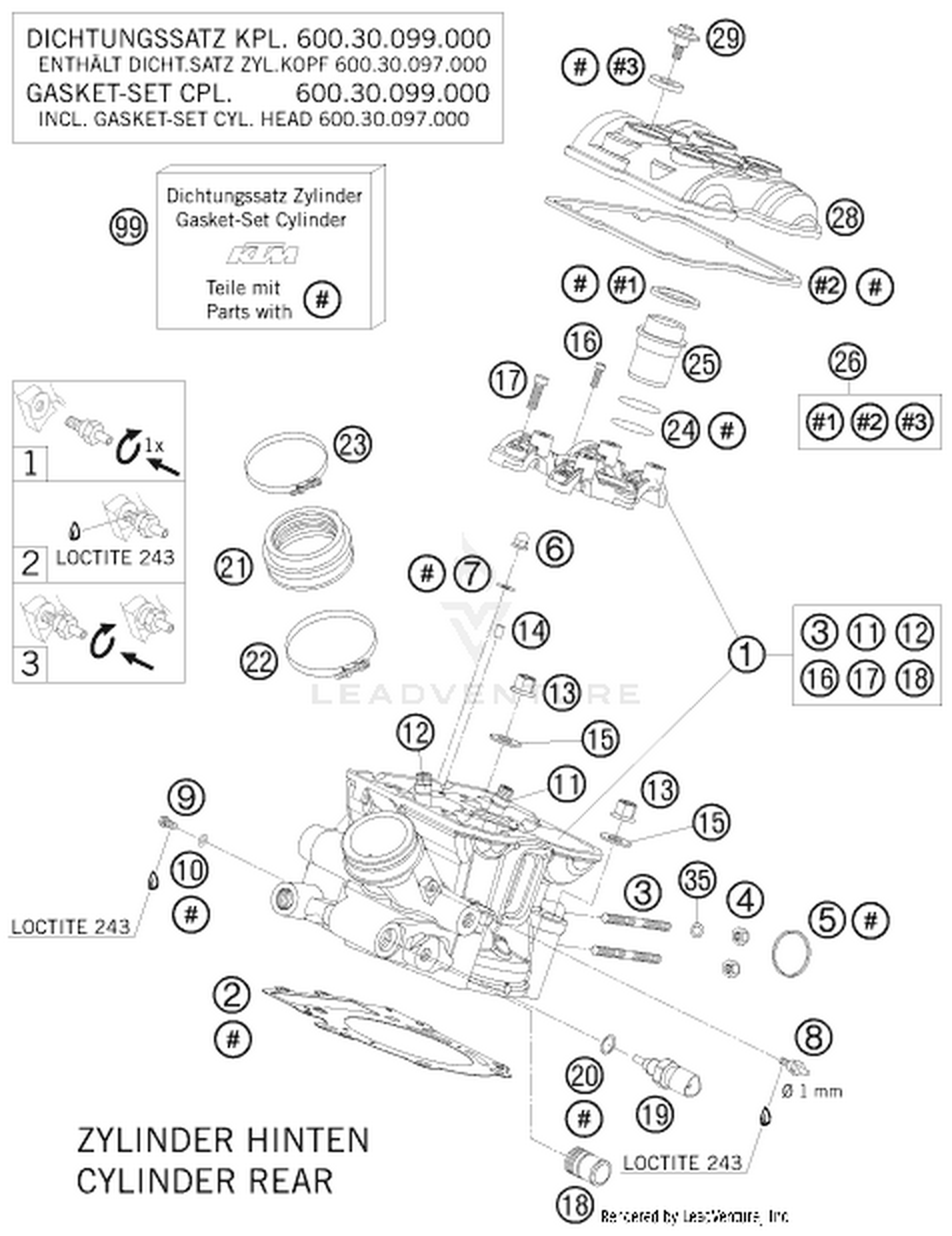

36 CYLINDER HEAD REAR

36 CYLINDER HEAD REAR

Parts (23)

RefPart NumberDescription
1 6113612004423 CYLIDNER HEAD CPL. REAR 07 Price: Call Us
2 60030036000 CYLINDER HEAD GASKET 0,5 101MM Price: Call Us
3 0835080256 STUD DIN0835-M 8X25 10.9 Price: Call Us
5 61005005000 Exhaust gasket 05 Price: Call Us
6 61230045000 CAP NUT M6 STAINLESS STEEL Price: Call Us
7 0125060003 WASHER DIN0125-A 6,4 Price: Call Us
8 61036023100 VACUUM CONECTION 2006 Price: Call Us
9 0025060106 HH collar screw M6x10 TX30 Price: Call Us
10 0603061001 CU-SEAL RING DIN7603-6X10X1 Price: Call Us
11 60036026101 VALVE GIUDE EXHAUST This part replaces 60036026100. Price: Call Us
12 60036025101 VALVE GIUDE INTAKE This part replaces 60036025100. Price: Call Us
15 60036078050 SHIM 10,2X19X1,5MM 05 Price: Call Us
16 0912060255 AH SCREW DIN0912-M 6X25 10.9 Price: Call Us
17 0984080305 AH SCREW DIN7984-M 8X30 10.9 Price: Call Us
18 58030010200 SCREW IN NOZZLE M20X1,5 Price: Call Us
19 75035047000 TEMPERATURE SENSOR WATER 07 Price: Call Us
21 61036044000 RUBBERSLEEVE INTAKE FLANGE 05 Price: Call Us
22 61036047000 Hose clamp GEMI 63mm 05 Price: Call Us
24 0770298178 O-RING 29,87X1,78 VITON Price: Call Us
25 61136075000 INSERT SPARK-PLUG SHAFT 08 Price: Call Us
26 60036099000 VALVE COVER GASKET SET FR+RR Price: Call Us
28 6003615210023 VALVE COVER REAR Price: Call Us
35 61005009000 SPACER BUSH. 8,5X15X7,5 05 Price: Call Us
