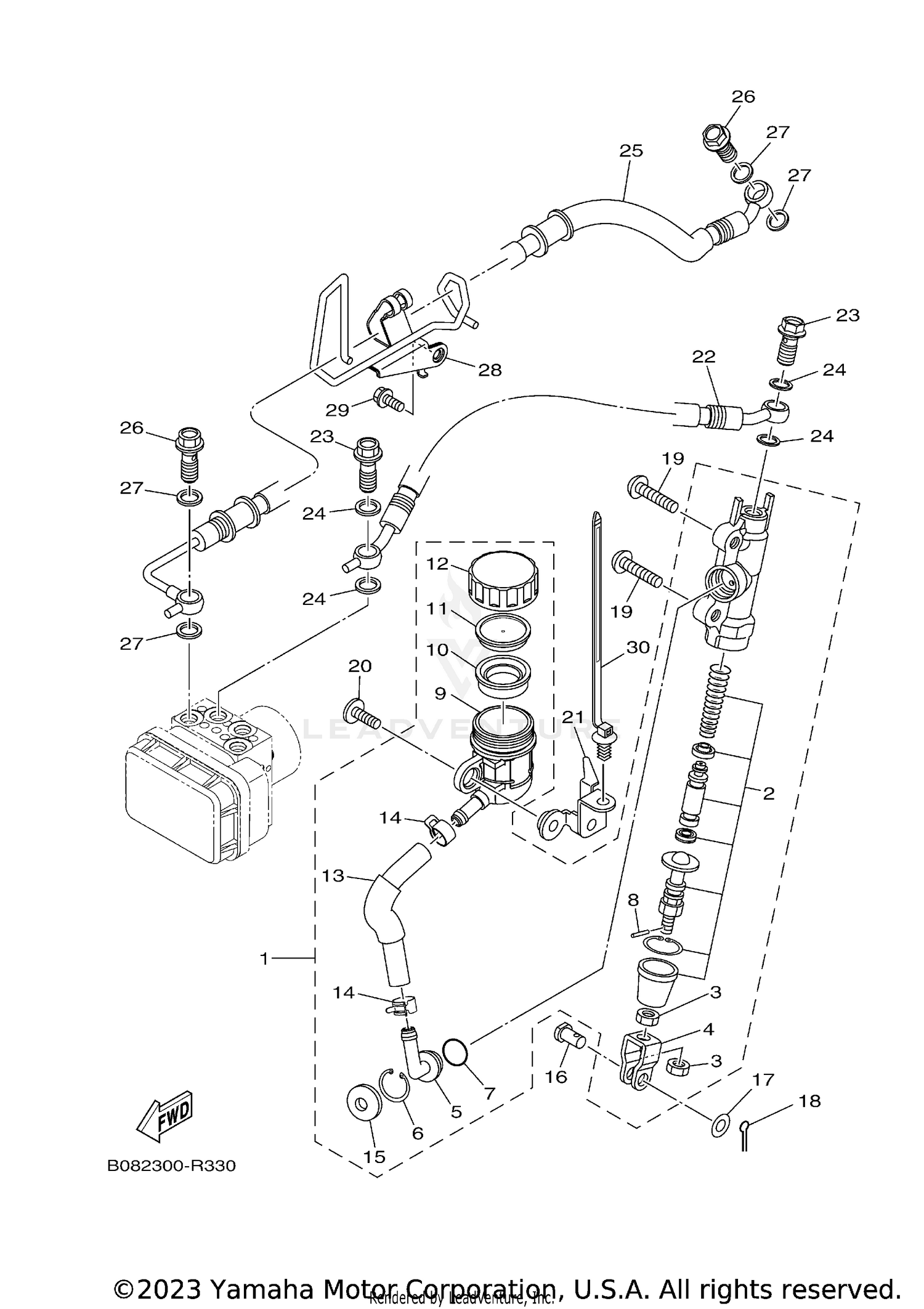

| Ref | Part Number | Description |
|---|
| 1 |
1WD-F580E-00-00 |
REAR MASTER CYLINDER ASSY Price: $85.99 |
| 2 |
1WD-F5808-00-00 |
CYLINDER KIT, MASTER Price: $31.99 |
| 3 |
95317-08700-00 |
NUT This part replaces 4SS-27218-00-00. Price: $10.49 |
| 4 |
50C-F7222-00-00 |
JOINT Price: $3.60 |
| 5 |
50C-F582A-50-00 |
JOINT Price: $4.05 |
| 6 |
50C-F5866-00-00 |
CIRCLIP Price: $1.15 |
| 7 |
93210-15566-00 |
O-RING This part replaces 93210-15620-00. Price: $8.49 |
| 8 |
3KW-27234-00-00 |
PIN, BRAKE ROD Price: $8.49 |
| 9 |
50C-F5894-11-00 |
TANK, RESERVOIR This part replaces 50C-F5894-10-00. Price: $17.49 |
| 10 |
2VN-F5854-00-00 |
DIAPHRAGM, RESERVOIR Price: $5.00 |
| 11 |
50C-F5855-00-00 |
BUSH,D IAPHRAGM Price: $3.50 |
| 12 |
1WD-F5852-50-00 |
CAP, RESERVOIR Price: $4.75 |
| 13 |
1WD-F5895-50-00 |
HOSE, RESERVOIR Price: $22.99 |
| 14 |
90467-12085-00 |
CLIP Price: $11.49 |
| 15 |
50C-F589A-00-00 |
COVER, DUST Price: $4.75 |
| 16 |
90240-08124-00 |
PIN, CLEVIS Price: $8.49 |
| 17 |
90201-08083-00 |
WASHER, PLATE Price: $10.49 |
| 18 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 19 |
92012-08030-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 20 |
90111-06121-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.85 |
| 21 |
B04-F582E-00-00 |
HOLDER, RESERVE TANK Price: $11.49 |
| 22 |
2WD-F581K-00-00 |
HOSE, BRAKE 5 Price: $25.99 |
| 23 |
90401-10159-00 |
BOLT, UNION This part replaces 90401-10812-00. Price: $12.49 |
| 24 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 25 |
2WD-F582J-00-00 |
HOSE, BRAKE 6 Price: $149.99 |
| 26 |
90401-10159-00 |
BOLT, UNION This part replaces 90401-10812-00. Price: $12.49 |
| 27 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 28 |
2WD-F5887-00-00 |
HOLDER, BRAKE HOSE Price: $13.49 |
| 29 |
95D37-06014-00 |
BOLT, FLANGE DEEP RECESS Price: $0.60 |
