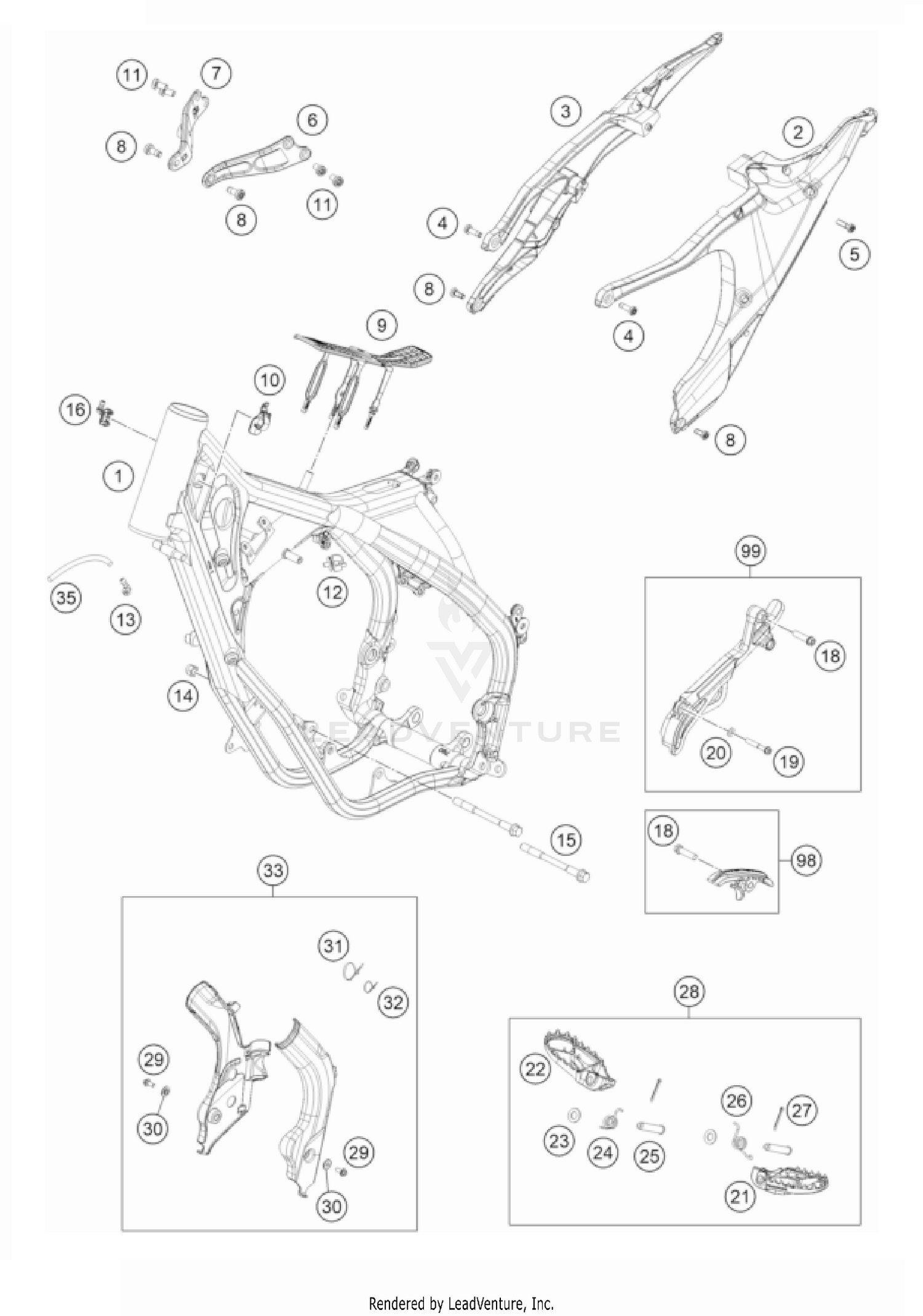

| Ref | Part Number | Description |
|---|
| 1 |
5050300100069 |
Frame 505S3 125/150 SX Price: $2,197.68 |
| 2 |
25103002144 |
Subframe kit le. This part replaces 25103002210C1. Price: $313.93 |
| 3 |
25103002244 |
Subframe kit ri. This part replaces 25103002220C1. Price: $335.60 |
| 4 |
0035080256S |
ISA collar screw M8x25 ISA45 Price: $2.99 |
| 5 |
0035080306S |
AH-COLLAR SCREW M8X30 ISA45 Price: $3.99 |
| 6 |
5050301300001S |
Engine brace, left Price: $66.76 |
| 7 |
5050301400001S |
Engine brace, right Price: $66.87 |
| 8 |
0035080206S |
SHCS M8x20 TX45 Price: $6.26 |
| 9 |
79607012000 |
TANK REST RUBBER Price: $11.87 |
| 11 |
0035080156S |
AH-COLLAR SCREW M8X15 TORX45 Price: $2.99 |
| 12 |
58111076000 |
CABLE SUPPORT KHS NR.150-47610 Price: $4.99 |
| 13 |
50303089000 |
ANGLE PIECE '97 Price: $6.15 |
| 14 |
54310086100 |
SELF LOCKING NUT M10 CU WS=14 Price: $2.99 |
| 18 |
0025080306 |
HH collar screw M8x30 Price: $3.62 |
| 19 |
0025060406 |
HH collar screw M6x40 TX30 Price: $3.99 |
| 20 |
0125060003 |
WASHER DIN0125-A 6,4 Price: $1.99 |
| 21 |
79003040000 |
FOOTREST L/S 2016 Price: $48.83 |
| 22 |
79003041000 |
FOOTREST R/S 2016 Price: $48.83 |
| 24 |
79003044000 |
FOOTREST SPRING R/S 2016 Price: $2.99 |
| 25 |
54803044000 |
PIN FOR FOOT PED 51.5X9.8 MM Price: $14.62 |
| 26 |
79003045000 |
FOOTREST SPRING L/S 2016 Price: $2.99 |
| 27 |
0094032250 |
PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: $1.99 |
| 28 |
79003040033 |
FOOT PEGS SET CPL. 2016 Price: $119.01 |
| 29 |
0014050123 |
HH COLLAR SCREW M 5X12 WS=6 Price: $2.99 |
| 30 |
54803092060 |
BUSH F. FRAME PROTECTION 03 Price: $4.99 |
| 31 |
44011076305 |
CABLE TIE 300/4,8MM BLACK Price: $2.99 |
| 32 |
44011076140 |
CABLE TIE 140/2,5MM BLACK Price: $1.99 |
| 33 |
2510309410030 |
Frame protection set Price: $30.90 |
| 98 |
79003053010 |
CHAIN SLIDING KIT BELOW CPL.16 Price: $21.00 |
