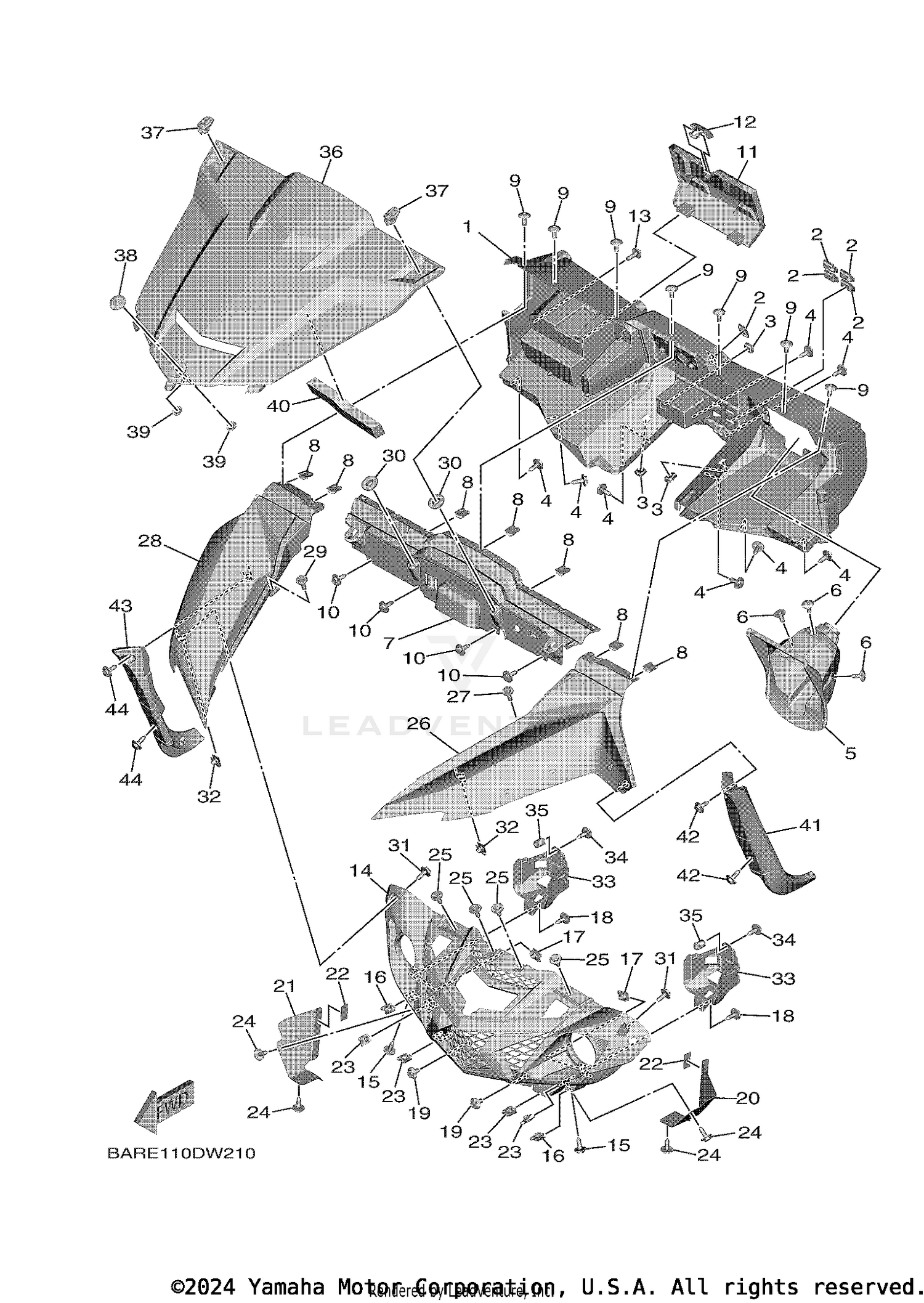

| Ref | Part Number | Description |
|---|
| 1 |
BAR-K7711-01-00 |
PANEL, INSTRUMENT This part replaces BAR-K7711-00-00. Price: $226.99 |
| 2 |
BG4-F312G-00-00 |
PLUG, HOLE Price: $2.10 |
| 3 |
B4J-F3742-00-00 |
CAP 2 Price: $2.20 |
| 4 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 5 |
BG4-F3818-00-00 |
COVER, STEERING Price: $20.99 |
| 6 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 7 |
BG4-F2865-00-00 |
COVER, FRONT Price: $40.99 |
| 8 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 9 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 10 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 11 |
BG4-F160F-00-00 |
LID Price: $14.49 |
| 12 |
F2X-U2875-00-00 |
LOCK Price: $6.99 |
| 13 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 Price: $1.75 |
| 14 |
BG4-F8309-11-00 |
GRILLE, FRONT Price: $92.99 |
| 15 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 16 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 17 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 18 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 19 |
90109-06202-00 |
BOLT Price: $3.10 |
| 20 |
BG4-E246A-00-00 |
COVER 1 Price: $10.49 |
| 21 |
BG4-E246E-00-00 |
COVER 2 Price: $10.49 |
| 22 |
5UG-K7588-01-00 |
DAMPER This part replaces 5UG-K7588-00-00. Price: $8.49 |
| 23 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 24 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 25 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 26 |
BG4-F1511-60-00 |
FENDER, FRONT Price: $208.99 |
| 27 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 Price: $1.75 |
| 28 |
BG4-F1556-60-00 |
FENDER, FRONT 2 Price: $138.99 |
| 29 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 Price: $1.75 |
| 30 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 31 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 32 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 33 |
2UD-F838E-00-00 |
COVER, HEADLIGHT Price: $8.49 |
| 34 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 35 |
90445-08029-00 |
HOSE This part replaces 90445-05003-00. Price: $3.20 |
| 36 |
BG4-F1982-50-00 |
HOOD 1 Price: $154.99 |
| 37 |
1XD-2175K-10-00 |
LEVER, LOCK Price: $12.49 |
| 38 |
1XD-F175B-01-00 |
TUNING FORK MARK Price: $15.49 |
| 39 |
90183-06071-00 |
NUT, SPRING Price: $0.80 |
| 40 |
90520-50004-00 |
DAMPER, PLATE Price: $5.99 |
| 41 |
BG4-K8185-01-00 |
EXTENSION, FRONT FENDER 1 Price: $29.99 |
| 42 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 43 |
BG4-K8186-01-00 |
EXTENSION, FRONT FENDER 2 Price: $24.99 |
