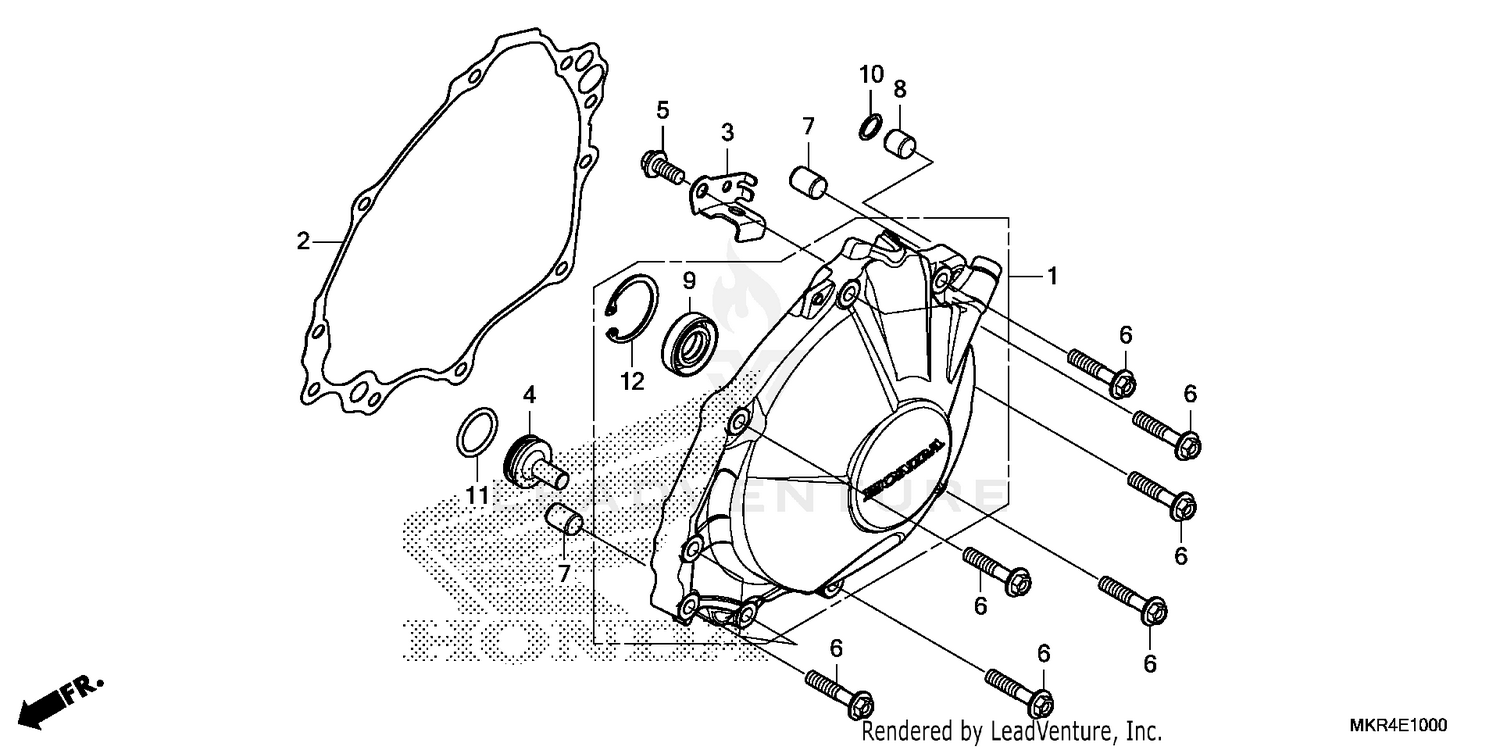

ALTERNATOR COVER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11320-MKR-D10 | COVER, ALTERNATOR Price: $189.10 |
| 2 | 11325-MKR-D11 | GASKET, ALTERNATOR COVER Price: $15.85 |
| 3 | 11333-MKR-D10 | CLAMP, ALTERNATOR CORD Price: $5.55 |
| 4 | 11611-MKR-D10 | PLUG, BALANCER Price: $12.20 |
| 5 | 90004-GHB-620 | BOLT, FLANGE (6X14) (NSHF) Price: $4.29 |
| 6 | 90027-GHB-700 | BOLT, FLANGE (6X30) Price: $2.64 |
| 7 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 8 | 90702-MJ4-000 | PIN, DOWEL (10X10) Price: $3.73 |
| 9 | 91202-MKR-D11 | OIL SEAL (14X28X7) (ARAI) Price: $8.35 |
| 10 | 91306-MG3-000 | O-RING (1.5X9.5) Price: $2.43 |
| 11 | 91311-MB0-003 | O-RING (18.5X2.4) (ARAI) Price: $2.44 |
