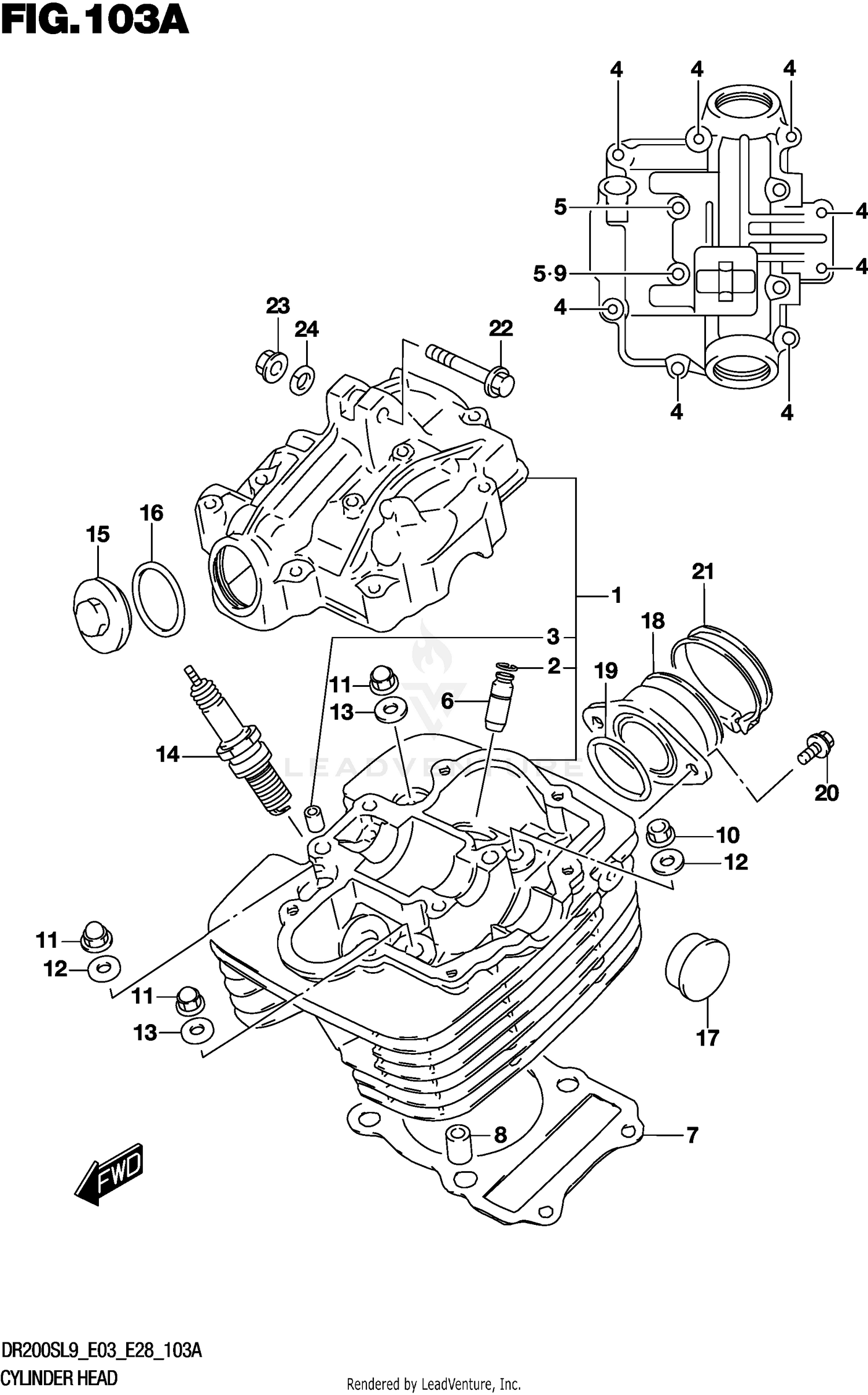

CYLINDER HEAD
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-42A80 | HEAD ASSY,CYLINDER Price: $896.63 |
| 4 | 01550-0635A | BOLT Price: $2.79 |
| 7 | 11141-18A00 | GASKET,CYLINDER HEAD Price: $17.55 |
| 8 | 04211-11169 | PIN Price: $2.15 |
| 9 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 10 | 08316-1008A | NUT Price: $2.99 |
| 11 | 09159-08049 | NUT Price: $5.73 |
| 12 | 09160-08039 | WASHER (8.5X19X2.3) Price: $2.37 |
| 15 | 11175-18920 | CAP INSPECTION This part replaces 11175-18900. Price: $15.07 |
| 17 | 09241-22002 | PLUG (OD:22.5) Price: $6.38 |
| 18 | 13110-42A13 | PIPE,INTAKE This part replaces 13110-42A12. Price: $34.28 |
| 19 | 09280-35001 | O RING (D:1.9,ID:34.6) Price: $2.18 |
| 20 | 02112-3616A | SCREW Price: $2.37 |
| 22 | 09103-08519 | BOLT (8X55) Price: Call Us |
| 23 | 08319-3108A | NUT Price: $2.79 |
